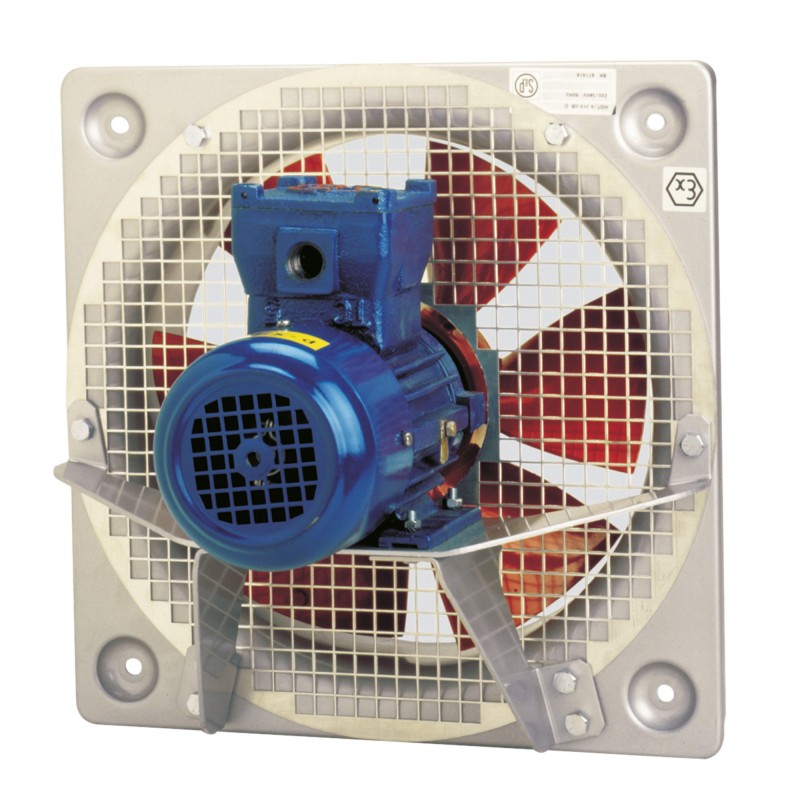

HDT ATEX
ATEX axial fans
Wall mounting < 14,000 m3/h
View larger
HDT ATEX
New product
 |
ErP not applicable ATEX |
 |
 |
- Compliance with ATEX Standard Zone 1 and 2 Gas, Zone 22 Dust
- HDT Exd explosion-proof motor
- HDT motor Ext protection by envelope
- Quick and easy installation
Application
Extraction of clean or low-dust air or ventilation of premises whose atmosphere contains one or more explosive compounds.
Airflow temperature from -20°C to +40°C.
-
Description
-

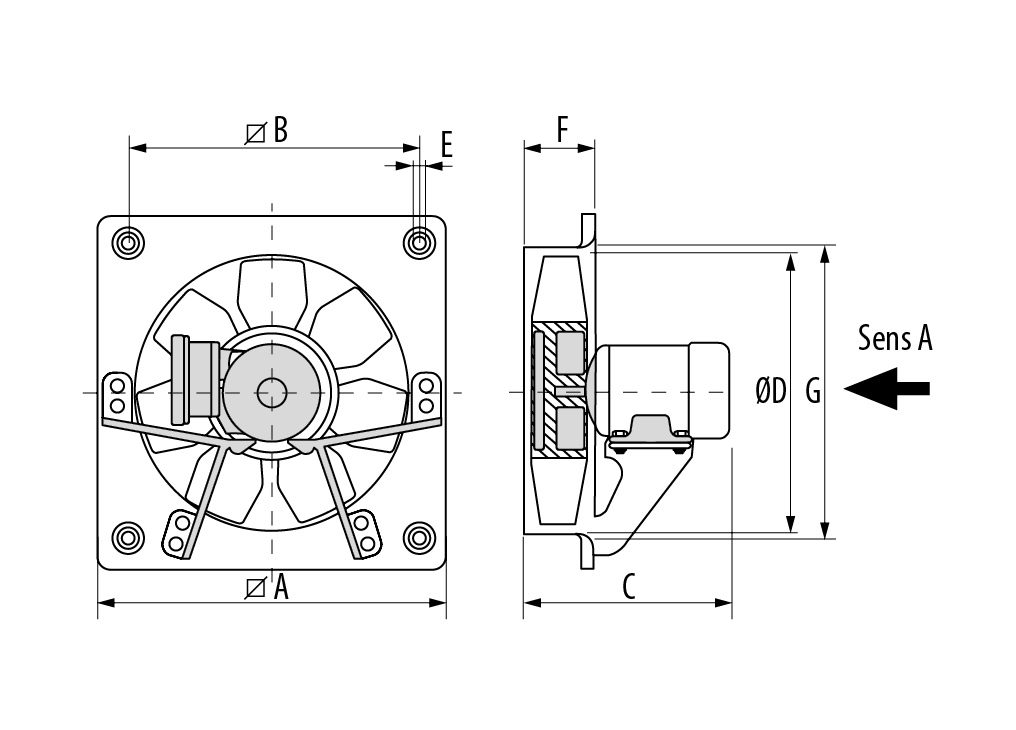

Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Compliance with directive 2014/34/EU ATEX.
ATEX Gas zones 1 and 2: II 2G Exh IIB+H2 T4 Gb.
ATEX Dust Zone 22: II 3D Exh IIIC T125°C Dc for conductive dust.
5 sizes: 315 / 355 / 400 / 450 / 560.
Construction
- Plate and engine support made of thick aluminum sheet. The whole is protected by B-0920 aluminum paint.
- Aluminum propeller, cast in one piece, with fixed blades and covered with red epoxy paint.
- The entire assembly: suction horn / propeller / motor support, forms an anti-spark system.
- Air direction A as standard: engine > propeller.
- B3 motor with 4, 6 or 8 poles, three-phase 230/400V 50Hz, IP66, IE1 or IE2, class F, equipped with 3 PTC probes.
- Accepts frequency variation (See page Practical notions on ATEX).
- HDT II 2G Exh IIB+H2 T4 Gb range equipped with Exdb IIC T4 Gb engine.
- HDT II 3D Exh IIIC T125°C Dc range equipped with Extb IIIC T125°C Db motor.
Technical fans selection
|
Model |
A |
B |
C |
ØD |
E |
F |
ØG |
||
|
Number of poles |
|||||||||
|
4 |
6 |
8 |
|||||||
|
HDT 315 |
400 |
330 |
323 |
315 |
10 |
85 |
329 |
||
|
HDT 355 |
450 |
380 |
325 |
325 |
355 |
10 |
87 |
371 |
|
|
HDT 400 |
500 |
420 |
336 |
336 |
400 |
10 |
90 |
422 |
|
|
HDT 450 |
560 |
480 |
360 |
349 |
349 |
450 |
10 |
106 |
476 |
|
HDT 560 |
710 |
630 |
435 |
435 |
368 |
560 |
10 |
112 |
596 |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Other files
