TCBT ATEX

ATEX axial fans

Tubular < 43,000 m3/h

TCBT front View larger

TCBT ATEX

ATEX axial fans


Tubular < 43,000 m3/h

PIC-ErP-non-applicable.jpg ErP not applicable
ATEX
PIC-ATEX.jpg PIC-logiciels.jpg

  • Compliance with ATEX Zone 1 and 2 Gas, Zone 22 dust
  • TCBT Exd explosion-proof
  • TCBT Exe increased security
  • TCBT Extc protection by enclosure
  • Very small footprint

Application

Extraction of clean or slightly dusty air or ventilation of rooms in which the atmosphere contains one or more explosive compounds.

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Compliant with directive 2014/34/UE ATEX

ATEX Gas zone:
TCBT Exd: II 2G Exd IIB T4
  • 2 diameter sizes: 710 / 800.
  • Speeds from 10,000 to 42,500 m3/h.
TCBT Exe: II 2G Exe II T3
  • 9 diameter sizes: 315 / 355 / 400 / 450 / 500 / 560 / 630 / 710 / 800.
  • Flows from 1,000 to 42,500 m3/h.
ATEX Dust Zone:
TCBT Extc: II 3D Extc IIIB T125° non-conductive dust
  • 2 sizes: 710 / 800.
  • Speeds from 10,000 to 42,500 m3/h.

Construction
  • Ferrule with aluminum rings and steel flanges protected from corrosion by cataphoresis plus black polyester paint RAL 9011.
  • Aluminum propeller balanced according to ISO 1940, fixed blades diameters 250 to 400 mm, adjustable when stopped from 450 to 800 mm.
  • Air direction B as standard: propeller > motor.
  • The entire assembly: ferrule / propeller / motor support, forms an anti-spark system.

Motorization
  • Motor IP55, IE1 or IE2, class F, without thermal protection, with B5 flange except models 315 to 630 and 6/710 with B3 feet.
  • Three-phase motor 230/400V 50Hz or 400V 50Hz, 1 speed, according to technical specifications.

Selection of technical fans
TCBT Sizes 250 to 710

Size

ØA

ØB

C

ØD

ØE

Number of holes

315

386

355

170

315

10

8

355

426

395

170

355

10

8

400 (6 poles)

487

450

170

400

12

8

400 (4 poles)

487

450

210

400

12

8

450

537

500

180

450

12

8

500

595

560

180

500

12

12

560

655

620

240

560

12

12

630

725

690

240

630

12

12

710 (6 poles)

806

770

240

710

12

16

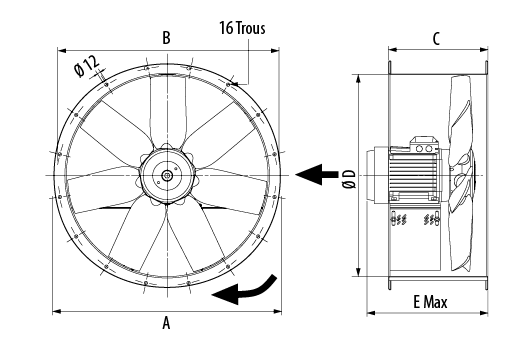

TCBT Sizes 710 to 800


Size

ØA

B

C

ØD

E

4 poles

6 poles

8 poles

710/L (4 poles)

806

770

380

710

415

710/H (4 poles)

806

770

380

710

444

800/L

896

860

380

800

437

408

383

800/K

896

860

380

800

448

437

408

800/G

896

860

380

800

447 (5.5kW)

515 (7.5kW)

448

437

800/H

896

860

380

800

515

477

437
