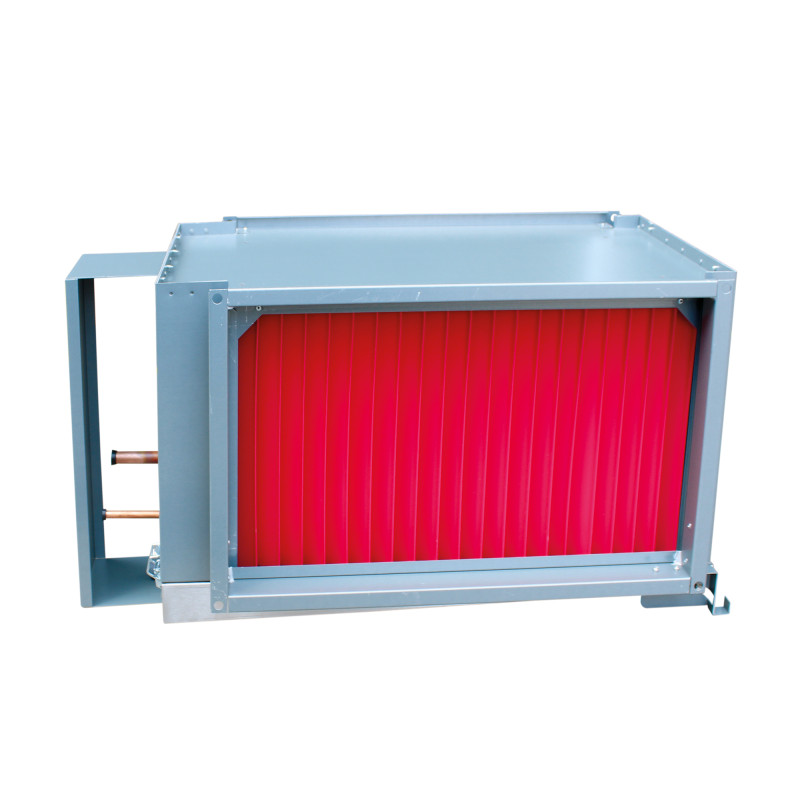

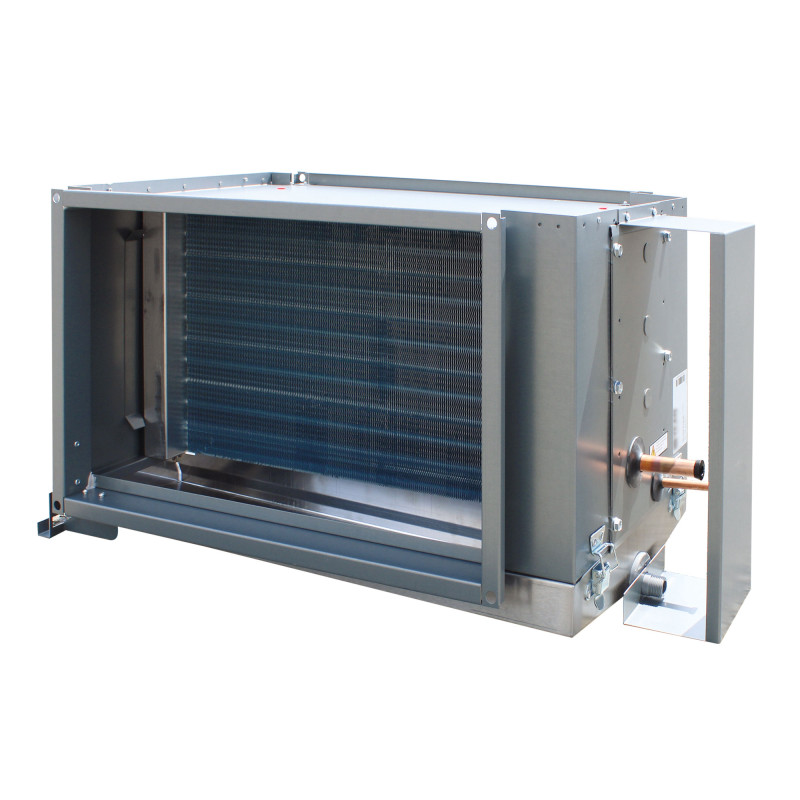

PGDX
Direct expansion batteries
Rectangular - Reversible direct expansion
View larger
PGDX
New product
 |  |
- Reversible battery according to group characteristics
- Ease of installation and maintenance
Terminal refrigerant batteries for heating or cooling the air over all or part of a blowing network.
Connection by frame on rectangular duct.
Horizontal mounting.
Description
Dimensions
Documentation
Public Price
Software
References
Flow rate up to 10,500 m3/h (cold) and 14,000 m3/h (hot).
12 sizes: air passage dimension from 400 x 200 to 1,400 x 700 mm.
2 models in 1 or 2 circuits depending on characteristics:
Construction
Battery
12 sizes: air passage dimension from 400 x 200 to 1,400 x 700 mm.
2 models in 1 or 2 circuits depending on characteristics:
- 1C: 1 circuit,
- 2C: 2 circuits.
Construction
- Sheet metal box Magnelis ZM 310, suitable for corrosion class environments C5.
- Same model for left or right connection.
Battery
- Exchanger with 3-row copper tubes, 1 or 2 circuits depending on the size, operating pressure 42.9 Bars. Maximum test pressure: 48.0 Bars.
- Smooth tubes for connection to the refrigeration circuit by brazing.
- 2.5mm pitch aluminum fins with hydrophilic coating for better water evacuation.
- Condensate tray in 304 stainless steel with ½ inch connection, reversible left/right. Easy disassembly for cleaning and maintenance by lever-operated toggle latches.
- Beyond 2.5m/s it is recommended to install a DEKR droplet separator, available as an option. It can be mounted regardless of the air direction, after the exchanger. It is easily accessible once the condensate pan has been dismantled.
- Use of refrigerant gases compatible with the material and the maximum pressure supported by the tubes, for example: R410a, R134a, R407C, R32.

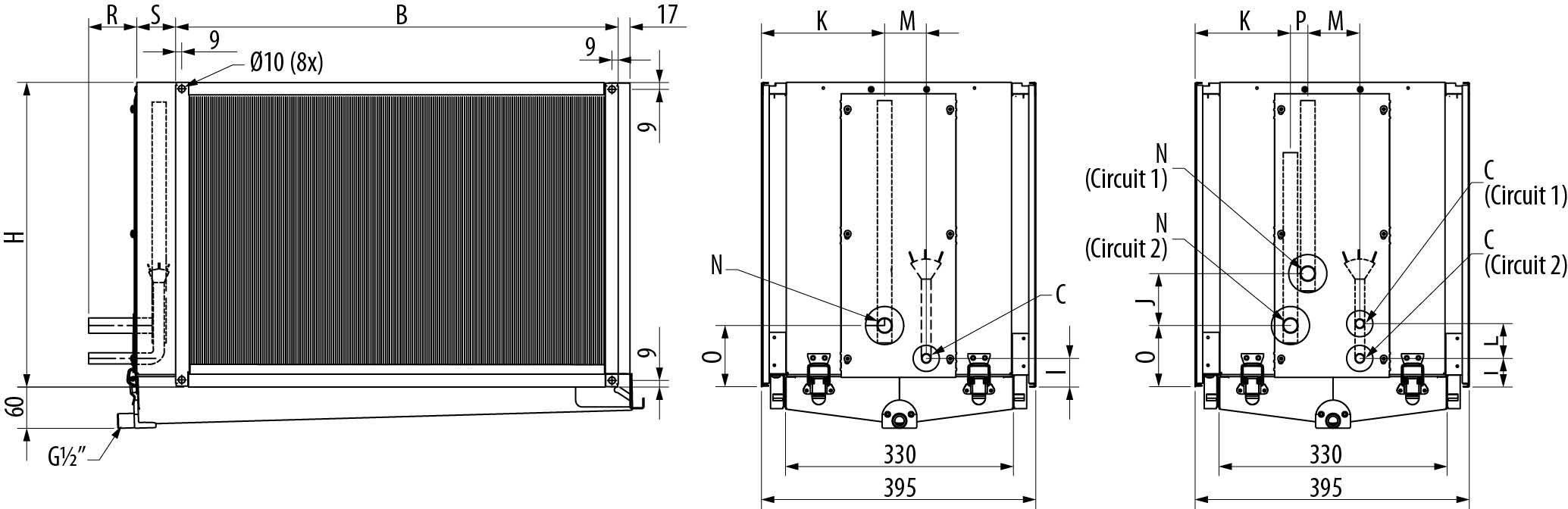

PGDX - PGDX 1C - PGDX 2C
| Model | B | H | S | R | I | O | K | M | N Ø (inch)" | C Ø (inch)" | Weight (kg) | Total interior volume (l) |
| PGDX 400x200 3R 1C | 438 | 238 | 56 | 70 | 51 | 201 | 208 | 1/2" | 3/8" | 10.4 | 0.8 | |
| PGDX 500x250 3R 1C | 538 | 288 | 56 | 70 | 40 | 85 | 165 | 67 | 1/2" | 3/8" | 13.0 | 1.2 |
| PGDX 500x300 3R 1C | 538 | 338 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 14.6 | 1.4 |
| PGDX 500x400 3R 1C | 538 | 438 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 15.2 | 1.9 |
| PGDX 600x300 3R 1C | 638 | 338 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 16.2 | 1.7 |
| PGDX 600x350 3R 1C | 638 | 388 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 17.4 | 1.9 |
| PGDX 700x400 3R 1C | 738 | 438 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 22.8 | 2.5 |
| PGDX 800x400 3R 1C | 838 | 438 | 56 | 70 | 40 | 85 | 165 | 67 | 5/8" | 3/8" | 25.5 | 2.8 |
| PGDX 800x500 3R 1C | 838 | 538 | 86 | 70 | 40 | 85 | 165 | 67 | 7/8" | 3/8" | 27.8 | 3.6 |
| PGDX 1000x500 3R 1C | 1038 | 538 | 86 | 70 | 40 | 85 | 165 | 67 | 7/8" | 1/2" | 32.8 | 4.4 |
| PGDX 1000x500 3R 2C | 1038 | 538 | 86 | 70 | 40 | 85 | 125 | 67 | 7/8" | 1/2" | 32.5 | 4.4 |
| PGDX 1200x600 3R 1C | 1238 | 638 | 86 | 70 | 40 | 95 | 165 | 63 | 7/8" | 1/2" | 38.0 | 6.2 |
| PGDX 1200x600 3R 2C | 1238 | 638 | 86 | 70 | 40 | 95 | 125 | 63 | 7/8" | 1/2" | 38.4 | 6.2 |
| PGDX 1400x700 3R 2C | 1438 | 738 | 86 | 70 | 40 | 95 | 125 | 63 | 19 mm | 1/2" | 46.6 | 8.4 |
