CP - CTGR
Circular accessories
Galva rain hat
View larger
CP - CTGR
New product

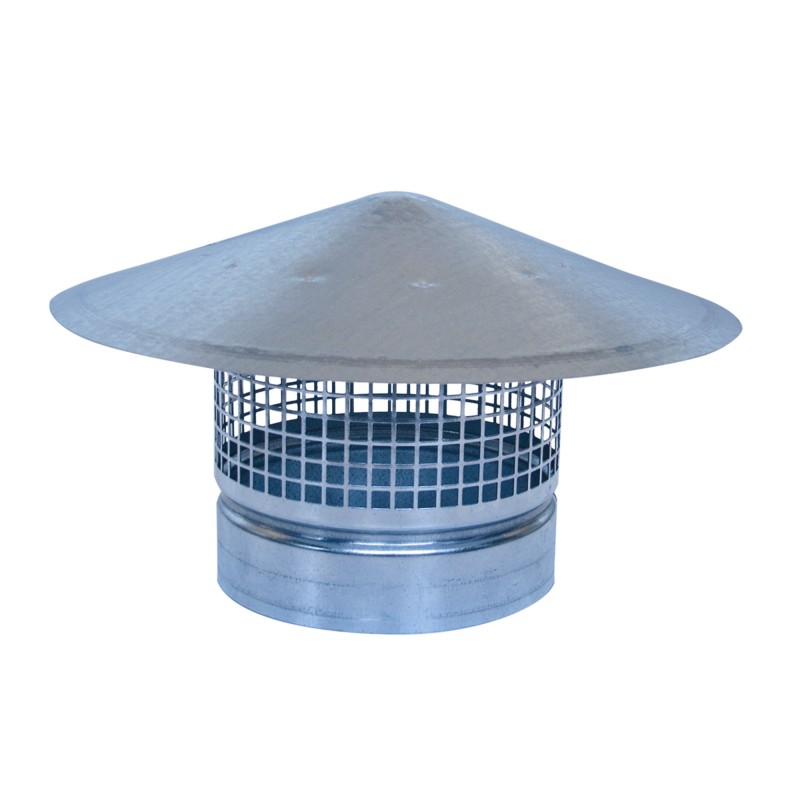

CP
Aspiration or rejection.
Protection of air networks at roof outlets against rain, birds, leaves, etc.
Low pressure drop.

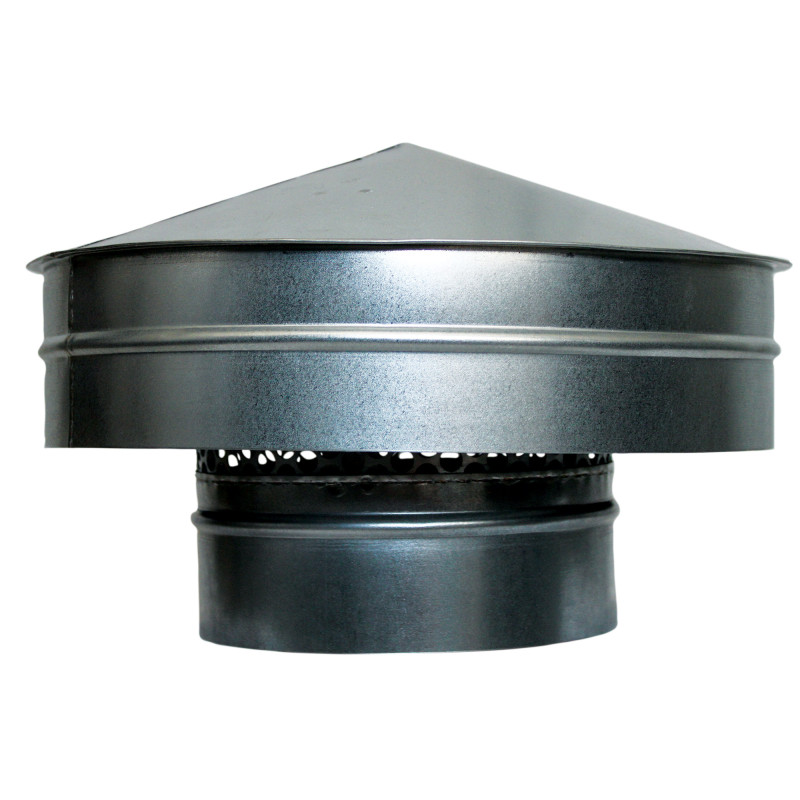

CTGR
Aspiration or rejection.
Reinforced protection of air networks at roof outlets against rain, birds, leaves, etc.
Low pressure drop.
Order online Description
Dimensions
Documentation
Public Price
Software
References
CP
CTGR
- Diameter 80 to 630 mm.
- Galvanized steel Z275.
- Female connection.
- Anti-bird protection mesh 10x10 mm.
CTGR
- Diameter 100 to 630 mm.
- Galvanized steel Z275.
- Male connection.
- Anti-bird protection mesh 10x10 mm.
CP
CTGR
| Ø conduit (mm) | Ø A (mm) | Ø B (mm) | Hmm) |
| 80 | 70 | 75 | 50 |
| 100 | 70 | 75 | 50 |
| 125 | 70 | 75 | 50 |
| 160 | 75 | 90 | 55 |
| 200 | 80 | 120 | 60 |
| 250 | 100 | 120 | 75 |
| 315 | 125 | 160 | 95 |
| 355 | 145 | 160 | 95 |
| 400 | 160 | 160 | 120 |
| 450 | 160 | 160 | 120 |
| 500 | 195 | 300 | 150 |
| 560 | 195 | 300 | 150 |
| 630 | 240 | 365 | 190 |

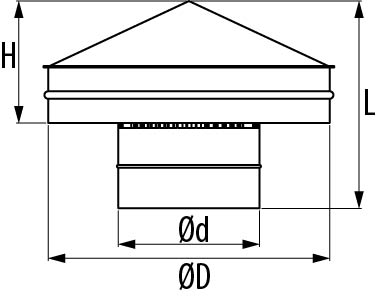

CTGR
| Ø conduit (mm) | D (mm) | L (mm) | Hmm) |
| 100 | 180 | 180 | 95 |
| 125 | 224 | 180 | 95 |
| 160 | 290 | 190 | 95 |
| 200 | 360 | 240 | 125 |
| 250 | 450 | 270 | 140 |
| 315 | 570 | 285 | 150 |
| 355 | 720 | 380 | 155 |
| 400 | 720 | 390 | 160 |
| 450 | 810 | 410 | 225 |
| 500 | 900 | 470 | 225 |
| 560 | 1080 | 495 | 225 |
| 630 | 1135 | 500 | 235 |
