RETD
Circular registers
Galva - For Canadian wells
View larger
RETD
New product
Application
Allows you to bypass the Canadian well.
Operating in half season.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Ø125 / 160 / 200 / 250 / 315 / 355 / 400 / 450 / 500 / 560 / 630 mm.
Description
Description

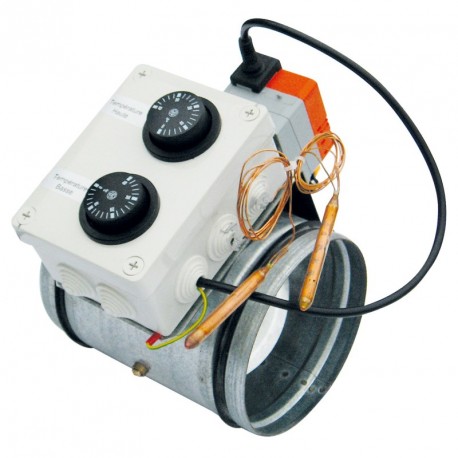

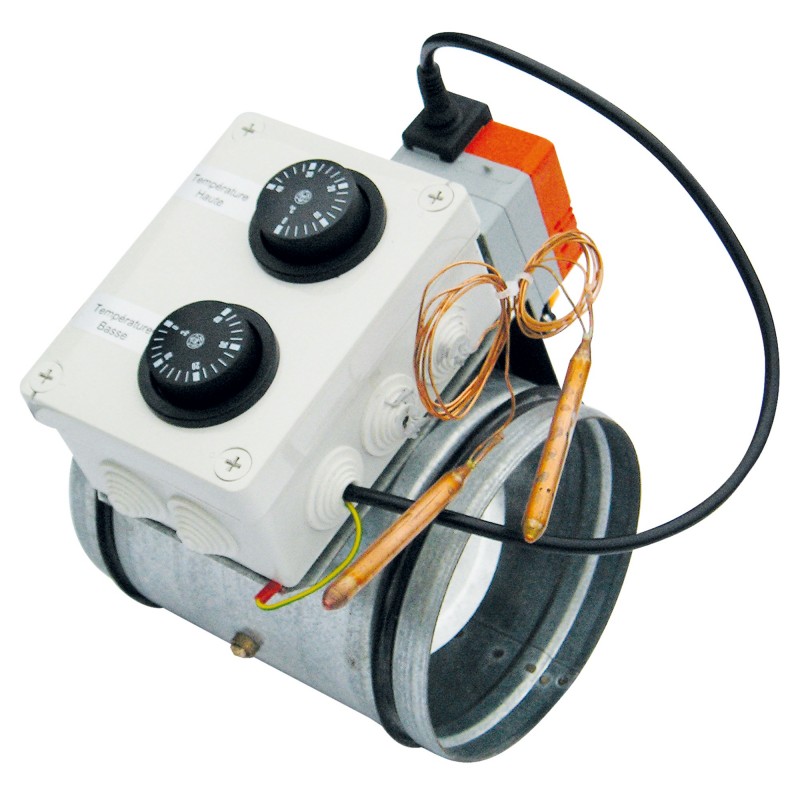

- Motorized register controlled by two pre-wired temperature probes to be positioned between the CTA and the fresh air intake.
- Electrical box equipped with buttons for adjusting the temperature settings, terminal block for powering the servomotor and connecting the external control.
- Factory setting of the two probes at 16°C (low limit) and 24°C (high limit): adjustable by the installer.
- T exterior
- 16°C
- Outside temperature > 24°C: shutter closed, air passes through the Canadian well.
- Factory pre-wired damper motor and temperature sensors.
- COM2 S: Optional 3-position rotary switch
- Position 0: Closed shutter: Canadian well active.
- Position I: Open shutter: Canadian well bypassed.
- Position II: Automatic operation.

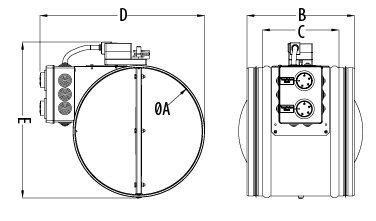

| Size | ØA | B | C | D | E |
| 160 | 160 | 200 | 125 | 265 | 240 |
| 200 | 200 | 200 | 125 | 305 | 280 |
| 250 | 250 | 200 | 125 | 355 | 330 |
| 315 | 315 | 300 | 215 | 420 | 395 |
| 355 | 355 | 300 | 215 | 460 | 435 |
| 400 | 400 | 400 | 315 | 505 | 480 |
| 450 | 450 | 400 | 315 | 555 | 530 |
| 500 | 500 | 400 | 315 | 605 | 580 |
| 560 | 560 | 400 | 315 | 665 | 640 |
| 630 | 630 | 400 | 315 | 735 | 710 |
