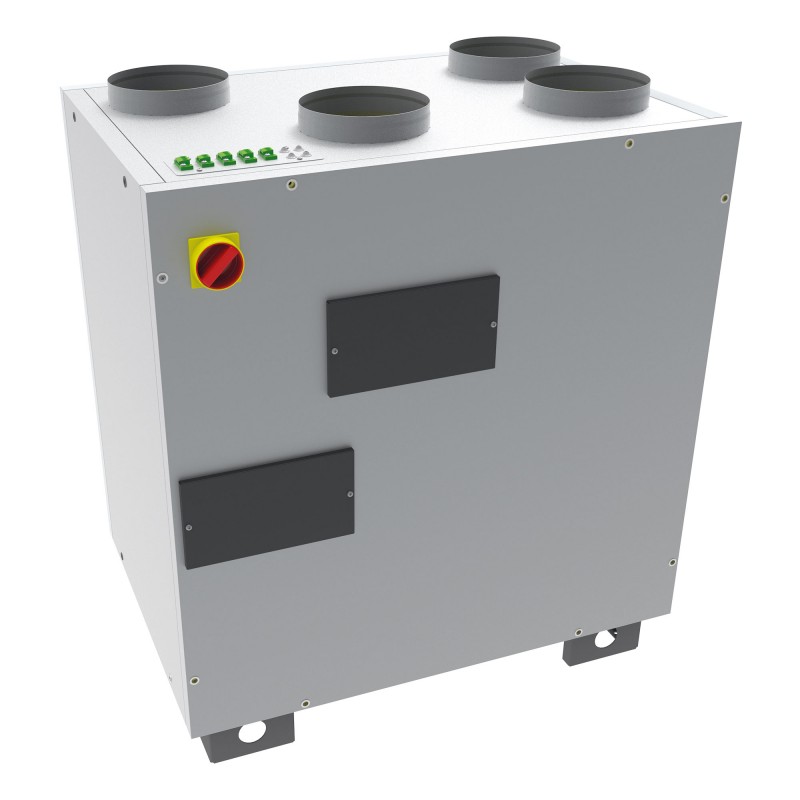

CAD HR MINI TOP
Double flow air handling unit V with exchanger
Counter current - Reaction - ECM < 600 m3/h
View larger
CAD HR MINI TOP
New product
 |
ErP 2018 compliant - UVNR Variable EC motor |
Filters
|
||
 |
 |
 |
||
 |
 |
 |
||
 |
Air-air plate heat exchangers produced by the company RECUTECH which participates in the Eurovent Certification program for AAHE. |
- New construction and regulation
- Numerous possibilities for controlling external batteries
- Double skin insulation 36 mm
- Low consumption ECM motors
- Communicating Modbus / BACnet control
- Thermal efficiency up to 92%
Applications:
Introduction and extraction of air with energy recovery.
Indoor use only.
Horizontal suspended installation.
Order online
-
Description
-

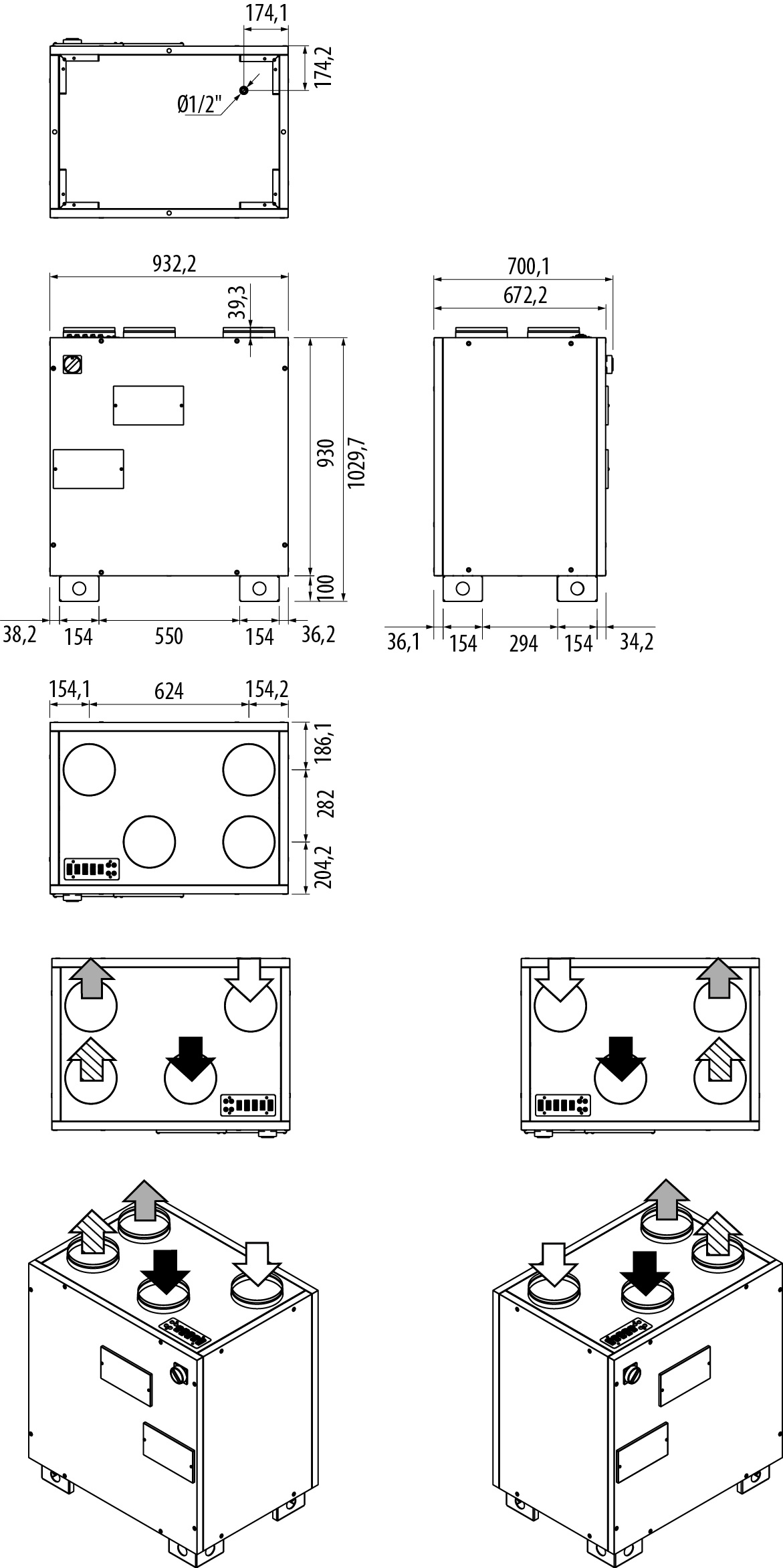

Dimensions
-
Documentation
-
Public Price
-
Software
-
References
1 size: 450 m3/h
Vertical construction (V)
Top (T) Duct Connection Configurations.
Right (R) or left (L) servitude in the direction of the blown air.
Bypass 100% modulating.
Control of external batteries (accessories) for antifreeze and post-heating or cooling.
EVCO regulation with remote touch control, communicating via Modbus on RS485 or IP port, and BACnet IP.
Construction
Motorization
Interchange
Filters
External electric battery type BATE RC010
Hot water battery type CWWC 200 2R
Cold water battery / reversible type CWKC 200 3R
Air treatment selection
Vertical construction (V)
Top (T) Duct Connection Configurations.
Right (R) or left (L) servitude in the direction of the blown air.
Bypass 100% modulating.
Control of external batteries (accessories) for antifreeze and post-heating or cooling.
EVCO regulation with remote touch control, communicating via Modbus on RS485 or IP port, and BACnet IP.
Construction
- Double skin panel:
- Exterior: ZM310 alloy steel panel (Zn - Al - Mg) for environments with C4 medium durability or C5 low durability corrosivity, 36 mm thick insulation of injected polyurethane foam (42 kg/m3, 0.0246W/mk) fire classification B-S2, d0.
- Interior: alloy steel panel (Zn - Al - Mg) ZM310.
- Black painted galvanized steel support feet, height 100 mm. Drilling for fixing anti-vibration pads or leveling feet.
- Condensate tray with Ø 1/2'' Gas drain.
- Access to the exchanger, regulation and fans from the front via a removable panel.
- Quick access to the filters from the front via a removable hatch.
Motorization
- Freewheel type fan with metal reaction (incombustible A1).
- Low consumption ECM electronically commutated motor, single-phase (230V-1-50/60 Hz) input 0...10V.
Interchange
- High efficiency counter-flow exchanger.
- In aluminum.
- Motorized bypass 100%, integrated into the unit, equipped with a 230V single-phase 3-point servo-motor controlled proportionally by adjusting the running time.
- Airtightness according to standard EN 13141-7:
- Internal leakage: class A2; external leakage: class A1.
Filters
- Fresh air blowing: 2 FIFI F7 ePM1 55 mini-pleat filters% 300x230x48 mm.
- Stale air intake: 2 FIFI M5 ePM10 50 mini-pleat filters% 300x230x48 mm.
External electric battery type BATE RC010
- Use as antifreeze or post-heating.
- Driven by EVCO regulation.
- Installation in duct.
Hot water battery type CWWC 200 2R
- Connection of the antifreeze contact probe and valve control by the EVCO regulation.
- Installation in duct.
Cold water battery / reversible type CWKC 200 3R
- Connection of the antifreeze contact probe (reversible use) and valve control by EVCO regulation.
- Installation in duct in horizontal position.
Air treatment selection
VTG Left Servo - VTD Right Servo
 |
Fresh air intake |
 |
Fresh air supply |
 |
Stale air return |
 |
Stale air discharge |
