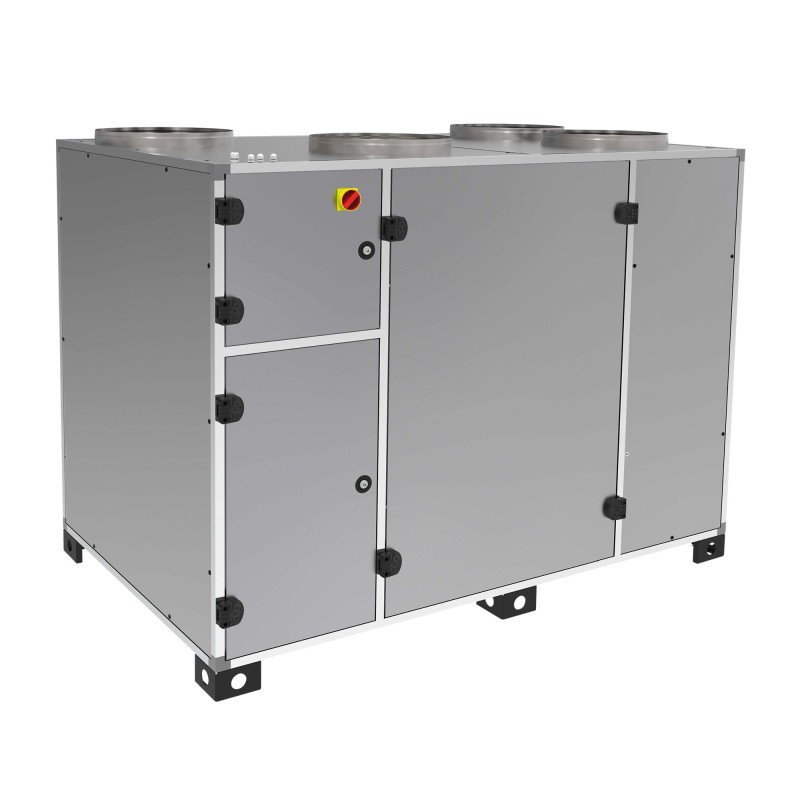

Double flow air handling unit V with exchanger
Counter current - Reaction - ECM < 4,300 m3/h
View larger
CAD HR BASIC TOP
New product
 | Compliant ErP 2018 - UVNR Variable EC motors | Filters | ||
 |  |  |  | |
 |  |  |  | |
 | Air-air plate heat exchangers produced by the company RECUTECH which participates in the Eurovent program. Certification for AAHE. |
- Duct connection from above
- With or without built-in battery
- Free-wheeling fan with reaction
- Low consumption ECM motor
- New communicating Modbus / Bacnet control
- Thermal efficiency up to 90%
Application
Introduction and extraction of air with energy recovery.
Installation on the floor inside a room.
Order online Description
Dimensions
Documentation
Public Price
Software
References
6 sizes: 05 (500 m3/h) / 07 (700 m3/h) / 16 (1,600 m3/h) / 19 (1,900 m3/h) / 30 (3,000 m3/h) / 43 (4,300 m3/h).
6 models according to types of integrated batteries:
Right (R) or left (L) servitude in the direction of the blown air.
VIM specific integrated EVCO regulation. Modbus RTU communication on RS485 or Modbus TCP/IP port, BACnet IP, EPJcolor remote touch control.
Construction
Interchange
Motorization
Filtration
EI post-heating electric battery
ED antifreeze electric battery
EC hot water battery
Air treatment selection
6 models according to types of integrated batteries:
| Electric post heating | Hot water | Electric antifreeze | |
| E Without battery | |||
| ED | ■ | ||
| EI | ■ | ||
| EDI | ■ | ■ | |
| EC | ■ | ||
| EDC | ■ | ■ |
Right (R) or left (L) servitude in the direction of the blown air.
VIM specific integrated EVCO regulation. Modbus RTU communication on RS485 or Modbus TCP/IP port, BACnet IP, EPJcolor remote touch control.
Construction
- Self-supporting structure in extruded aluminum profile.
- 25 mm double skin panel in alloy steel (Zn - Al - Mg) ZM310 for environments with corrosiveness C4 medium durability or C5 low durability, insulation by injected polyurethane foam (42 kg/m3 – 0.0246W/mk) fire classification B-S2, d0 (M1).
- Vertical construction with connection on the top by circular tappings equipped with sealing joints.
- Support feet in galvanized steel painted black, height 100 mm. Drilling for fixing anti-vibration pads, or leveling feet.
- Access to filters, exchanger, battery and fan from the front.
- Ø1/2˝ purge for condensate drainage.
Interchange
- High efficiency counter-flow aluminum plate heat exchanger. Thermal efficiency up to 90%.
- Motorized modulating bypass 100%, integrated into the unit on the proportionally controlled fresh air network, for free cooling or defrosting.
Motorization
- Freewheel type fan with metal reaction (incombustible A1).
- ECM motor, 230V 50/60Hz, high efficiency on size 05 / 07 / 16 / 19.
- ECM motor, 400V 50/60 Hz three-phase, high efficiency on sizes 30 and 43.
- Control by 0…10V signal.
- CAD HR BASIC TOP E/EI/EC 05: IP44 Class B,
- CAD HR BASIC TOP E/EI/EC 07 - 16 - 19 - 30 - 43: IP54 Class B.
- Electronic thermal protection.
Filtration
- Fresh air blowing: FIFI F7 ePM1 55 mini-pleat filters%.
- Stale air intake: FIFI M5 ePM10 75 mini-pleat filters%.
EI post-heating electric battery
- Connected to the regulation, it allows the temperature of the blown air to be regulated.
- Equipped with safety thermostat with automatic reset (set point 55°C) and manual reset (set point 70°C).
ED antifreeze electric battery
- Placed on the fresh air before the exchanger, prevents the risk of freezing on the exchanger.
- Assembled, wired and controlled by the regulator.
- Safety thermostat with automatic reset (set point 55°C) and manual reset (set point 65°C).
EC hot water battery
- 2-row water battery.
- Composed of copper tubes with aluminum fins on a galvanized steel frame.
- Copper collector.
- Threaded connecting tube.
- 230V/24V 10VA transformer for powering the 2V or 3V valve.
Air treatment selection
 | Fresh air intake |
 | Fresh air supply |
 | Stale air return |
 | Stale air discharge |

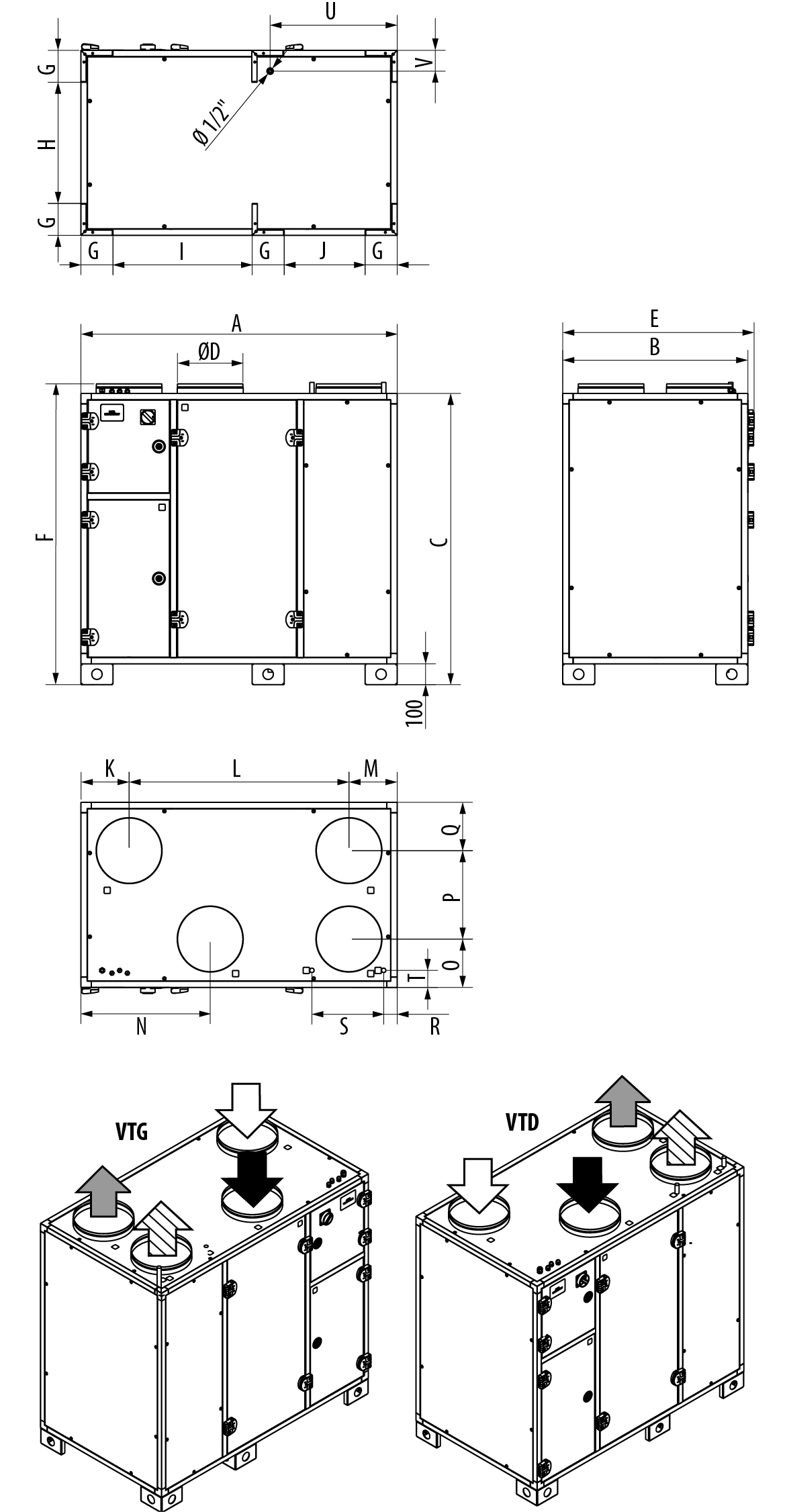

| Model | AT | B | VS | ØD | E | F | G | H | I | J | K | I | M | NOT | O | P | Q | R | S | T | U | V |
| CAD HR BASIC TOP 05 | 1102 | 611 | 1200 | 200 | 641 | 1249 | 154 | 302 | 792 | - | 184 | 750 | 168 | 469 | 168 | 275 | 168 | 79 | 188 | 64 | 464 | 100 |
| CAD HR BASIC TOP 07 | 1300 | 700 | 1300 | 250 | 728 | 1348 | 154 | 392 | 992 | - | 192 | 917 | 192 | 507 | 214 | 310 | 177 | 60 | 260 | 68 | 511 | 100 |
| CAD HR BASIC TOP 16 | 1520 | 890 | 1400 | 315 | 920 | 1446 | 154 | 582 | 669 | 389 | 232 | 1057 | 232 | 622 | 233 | 425 | 233 | 65 | 345 | 82 | 611 | 100 |
| CAD HR BASIC TOP 19 | 1700 | 1000 | 1400 | 355 | 1028 | 1447 | 154 | 692 | 684 | 555 | 252 | 1197 | 252 | 642 | 273 | 455 | 273 | 69 | 340 | 63 | 751 | 91 |
| CAD HR BASIC TOP 30 | 1900 | 1050 | 1600 | 400 | 1078 | 1647 | 154 | 742 | 781 | 657 | 262 | 1376 | 262 | 728 | 308 | 480 | 262 | 68 | 380 | 66 | 848 | 90 |
| CAD HR BASIC TOP 43 | 2200 | 1400 | 1700 | 500 | 1430 | 1748 | 154 | 1092 | 931 | 807 | 302 | 1596 | 302 | 847 | 322 | 620 | 458 | 77 | 445 | 83 | 983 | 89 |
| Model | Unit weight without battery (kg) | Hot water coil weight (kg) | Electric heater weight (defrosting or post-heating) (kg) |
| CAD HR BASIC TOP 05 | 125 | 4 | 3 |
| CAD HR BASIC TOP 07 | 175 | 6 | 4 |
| CAD HR BASIC TOP 16 | 211 | 6 | 5 |
| CAD HR BASIC TOP 19 | 252 | 8 | 5 |
| CAD HR BASIC TOP 30 | 300 | 9 | 8 |
| CAD HR BASIC TOP 43 | 419 | 14 | 11 |
