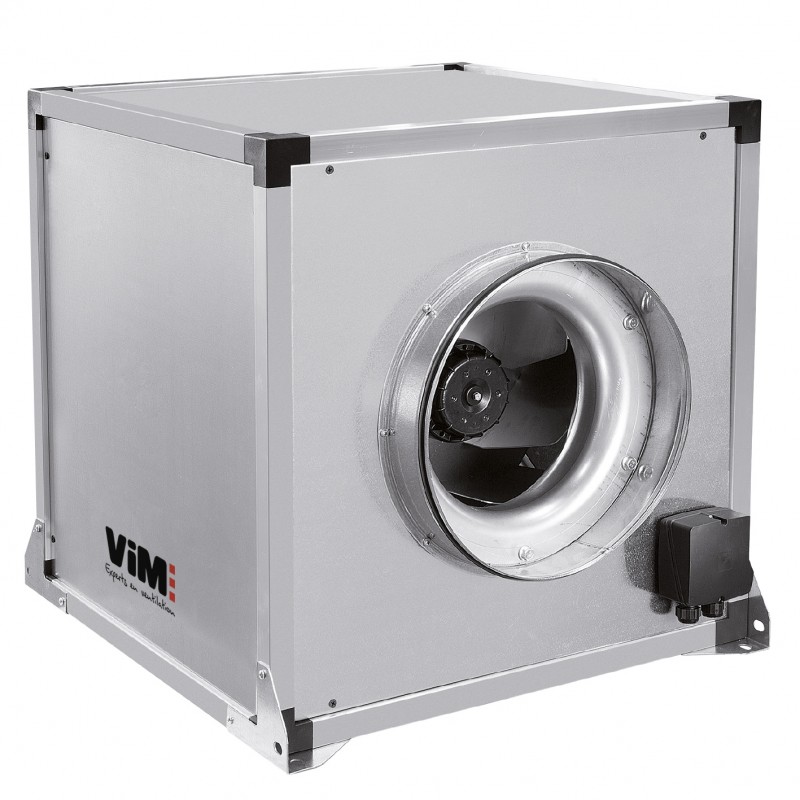

CVAB - CVAT ECOWATT
Extraction or insufflation boxes
Direct drive - Reaction - ECM < 7000 m3/h
View larger
CVAB - CVAT ECOWATT
New product
 |
ErP 2018 Compliant - UVNR - Variable EC Motor |
|||
 |
 |
 |
||
- Low consumption ECM motor
- High-performance reaction wheel
- Configurable circular connection
- Sound insulation
- Built-in potentiometer
Applications:
Installation inside buildings or outside with rainproof roof.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flow rates from 200 to 7,000 m3/h.
7 sizes of connection diameters: Ø250 / 315 / 355 / 400 / 450 / 500 mm.
Air flow temperature from -20°C to +40°C.
Construction
Motorization
Standard fan selection
7 sizes of connection diameters: Ø250 / 315 / 355 / 400 / 450 / 500 mm.
Air flow temperature from -20°C to +40°C.
Construction
- Frame made of extruded aluminum profile with plastic corners.
- Waterproof box in Z275 galvanized steel with double skin panel.
- Double-skin acoustic insulation made of 25 mm thick glass wool (A1).
- Circular tapping at the suction and discharge.
- Possibility of mounting the circular discharge connection on any side of the box: in line, right, left, above.
- Reaction turbine mounted in direct coupling with the engine.
- Potentiometer integrated into the electrical connection box.
Motorization
- Electronically commutated motor ECM in the air stream.
- Very high efficiency, adjustable.
- Electronically controlled thermal protection.
- IP44 motor, single-phase 230V, 50-60Hz (CVAB-P ECOWATT)
- IP54 motor, three-phase 400V, 50Hz (CVAT-P ECOWATT)
Standard fan selection
| Model | A | B | C | D | E | F | G | H |
| CVAB 250-2-2640 ECOWATT | 500 | 440 | 578 | 250 | 45 | 55 | 534 | 250 |
| CVAB 250-3-1900 ECOWATT | 500 | 440 | 578 | 250 | 45 | 55 | 534 | 250 |
| CVAB 315-3-1900 ECOWATT | 500 | 440 | 578 | 315 | 45 | 55 | 534 | 250 |
| CVAB 315-4-2450 ECOWATT | 500 | 440 | 578 | 315 | 45 | 55 | 534 | 250 |
| CVAB 355-3-1900 ECOWATT | 600 | 540 | 678 | 355 | 45 | 55 | 634 | 300 |
| CVAB 400-3-1720 ECOWATT | 600 | 540 | 678 | 400 | 45 | 55 | 634 | 300 |
| CVAB 450-6-1450 ECOWATT | 700 | 620 | 779 | 450 | 45 | 55 | 734 | 350 |
| CVAB 500-6-1210 ECOWATT | 800 | 720 | 879 | 500 | 45 | 55 | 834 | 400 |
| CVAT 500-6-1375 ECOWATT | 800 | 720 | 879 | 500 | 45 | 55 | 834 | 400 |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
CE smoke extraction certification (CCCE)
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
EASYVENT
Access the software online
