Hood lights
Hood or ceiling accessories
For range hoods VORAX and NOVAX
View larger
Hood lights
New product
- IP65 waterproof surface mounted lighting
- IP55 waterproof recessed lighting
- Waterproof lighting LED spotlights IP65
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

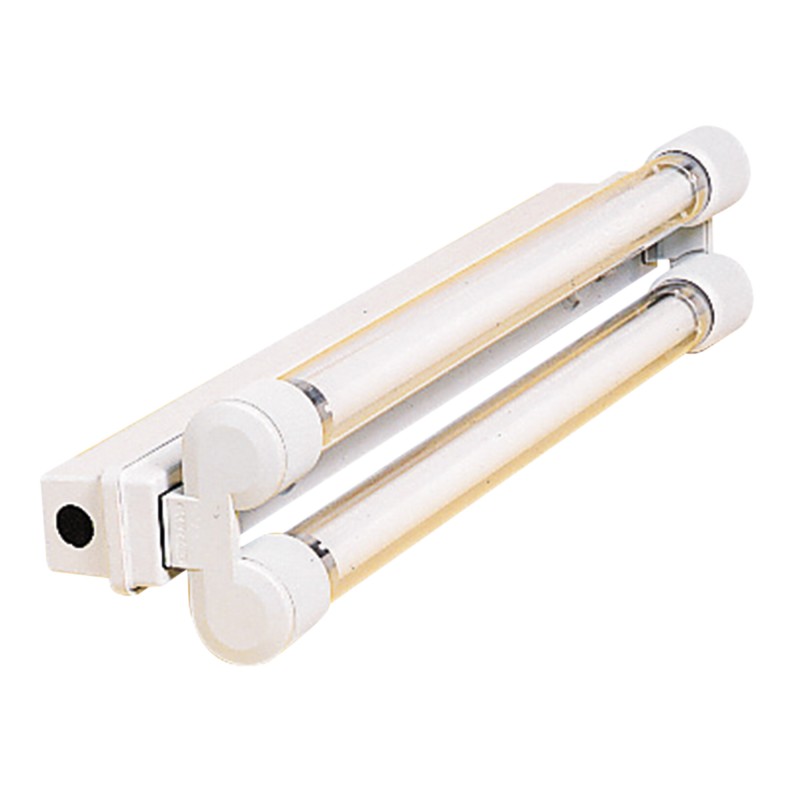

IP65 waterproof surface mounted lighting
IP66 waterproof LED surface mounted lighting
IP55 waterproof recessed lighting
Waterproof lighting LED spotlights IP65
- Single phase, 230 volts, 50 Hz.
- Temperature + 40 ° C.
- 2 x 18 WL 647 mm for 1000 mm module.
- 1 x 36 WL 1257 mm for module from 1500 mm.
- For VORAX hoods.
- Delivered unassembled.

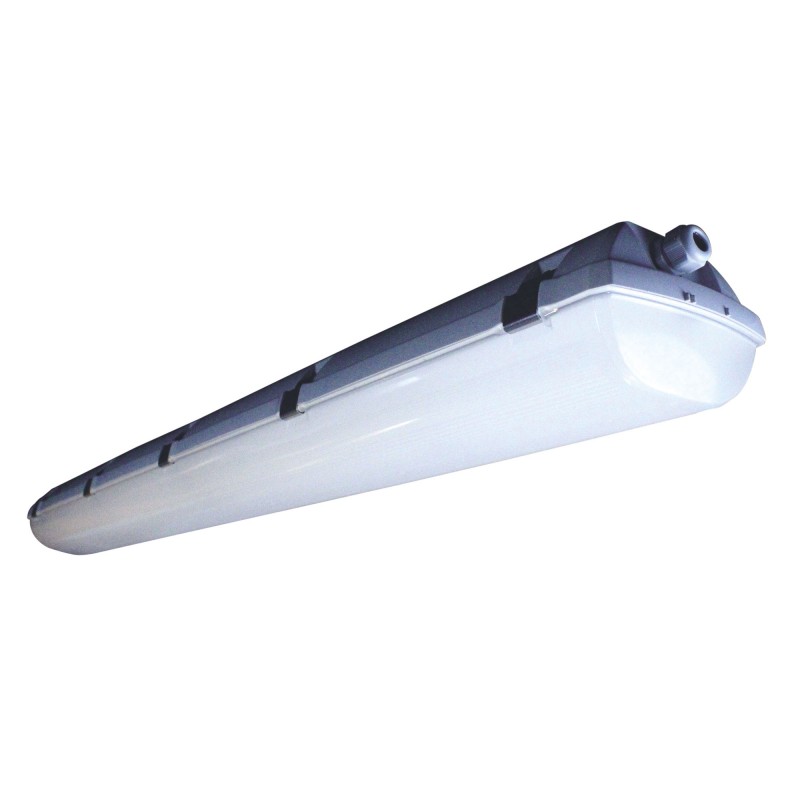

IP66 waterproof LED surface mounted lighting
- Single phase, 230 volts, 50/60 Hz, LED, color 4000 K.
- Temperature -40°C / + 65 ° C.
- 38 W L 1172 mm for module from 1500 mm.
- For VORAX hoods.
- Delivered unassembled.

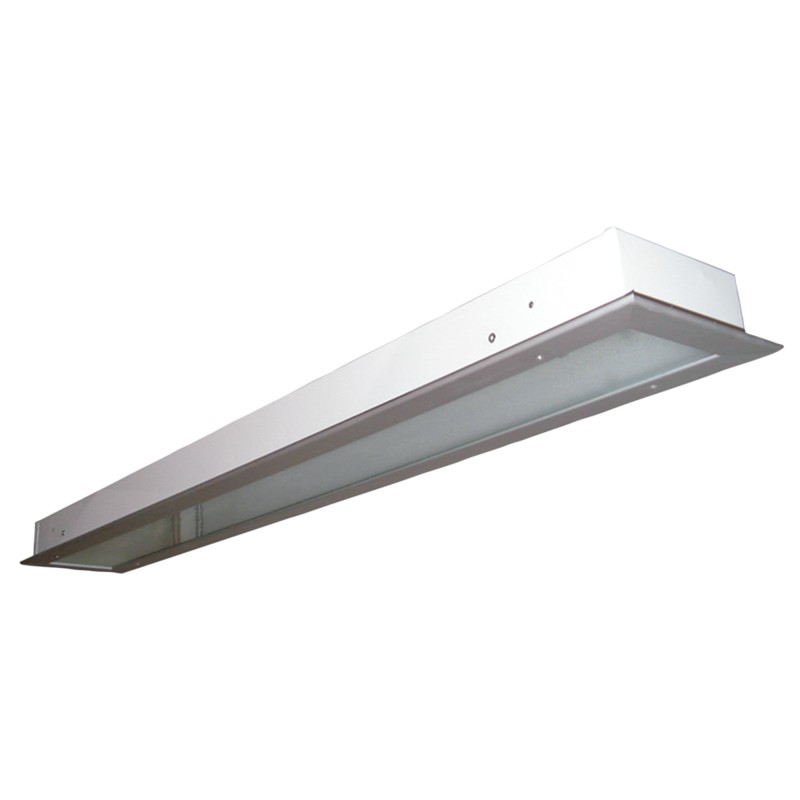

IP55 waterproof recessed lighting
- Single phase, 230 volts, 50 Hz.
- Armored protective glass.
- Easy disassembly for tube replacement.
- High efficiency T5 tube models (class EEI = A2):
- 1 x 14 WL 690 mm for 1000 mm module.
- 1 x 28 WL 1300 mm for module from 1500 mm.
- 2 x 28 WL 1300 mm for module from 1500 mm.
- High efficiency LED model:
- 1x20 WL 1300 mm for module from 1500 mm.
- For VORAX and NOVAX hoods.
- Supplied with a 1.50 m connection cable.
- Supplied mounted on the hood or as an unassembled accessory.

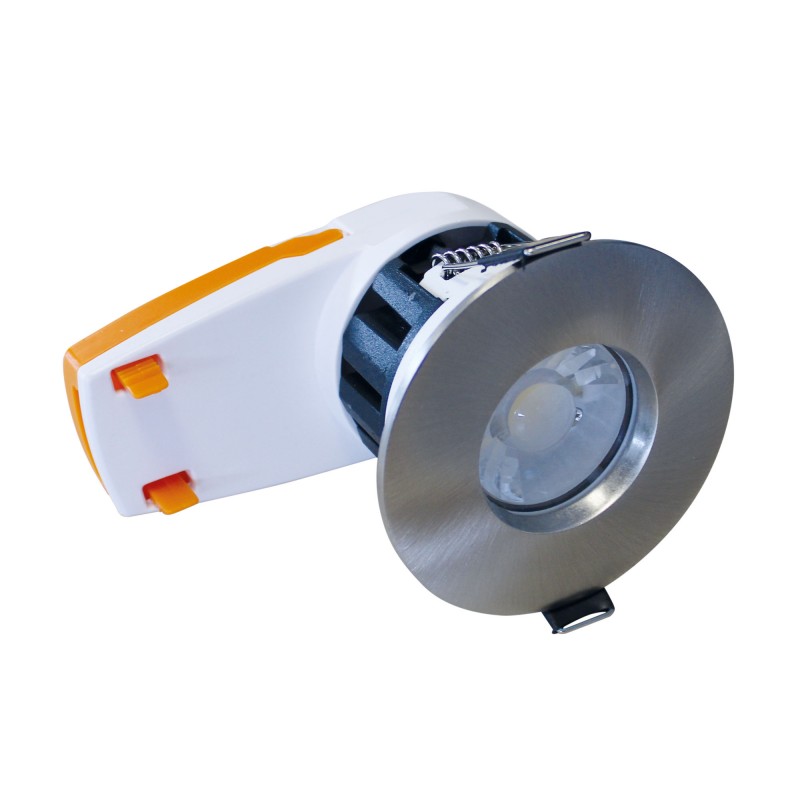

Waterproof lighting LED spotlights IP65
- Single phase, 230 volts, 50/60 Hz, dimmable, color 4000 K.
- Dimensions: diameter 85 mm, height 87 mm.
- Fire resistance 90 minutes.
- Delivered assembled and wired on each module with quick connector for connection between module.
- Supplied with a 1.5 m connection cable.
- LED spotlights meet the NF EN 16282-2 standard and can be installed on all ranges of VORAX (except Basic) and NOVAX hood ranges.
| Module | 1000 | 1500 | 2000 | 2500 | 3000 |
| Number of spots | 1 | 2 | 3 | 4 | 5 |
| Total power (W) | 6 | 12 | 18 | 24 | 30 |
IP65 waterproof surface mounted lighting
IP66 waterproof LED surface mounted lighting
IP55 waterproof recessed lighting
IP66 waterproof LED surface mounted lighting
IP55 waterproof recessed lighting
Dimensions 1000
Dimensions 1500
Dimensions 1500
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Electrical / ATEX Certificates
