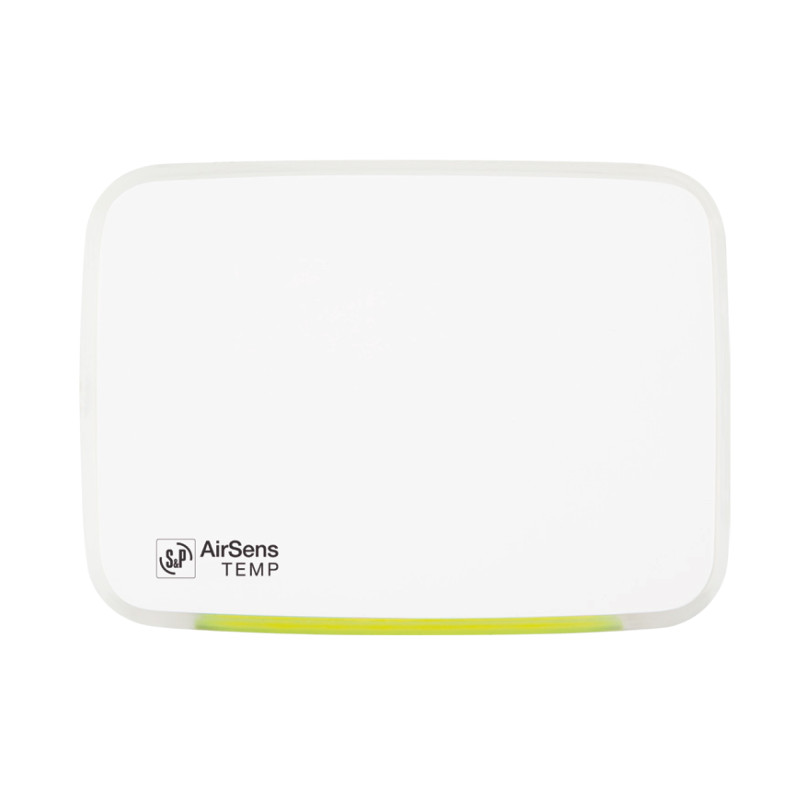

AIRSENS TEMP
IAQ and comfort sensors
Temperature probes
View larger
AIRSENS TEMP
New product
 |
- Any application of flow modulation in ventilation
- Energy saving
- LED temperature level display
- ModBus Communicator
Temperature measurement.
Modulation of a ventilation flow rate based on a measurement/setpoint difference.
Control of motorized dampers, CTA, fans.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
AIRSENS TEMP: ambient measurement probe.
- 2 possible modes of use, selection by switches:
- Servo mode: using the 0-10V output of the probe, the ventilation flow is proportional to the temperature.
- All or little mode: using the relay output, the ventilation flow is minimum below the temperature threshold adjustable by potentiometer (factory value 28°C) and maximum above this threshold.
- LED temperature level display:
Servo mode All or little mode Green Value between 21 and 25°C Value Orange Value between 18 and 21°C, or between 25 and 35°C Not used Red Value 35°C Value > Setpoint set - Automatic calibration.
- Communicating Modbus RTU RS485.
