THERMAL INSULATORS
Installation accessories
External duct insulation
View larger
THERMAL INSULATORS
New product
Application
Adhesive polyethylene foam
- External thermal insulation of air networks located inside buildings.
- Heated area.
- Insulation of plenums.
Climcover roll Alu1 and Alu2 KA
- Air networks inside buildings,
- Thermal, acoustic and anti-condensation insulation from the outside of air networks.
- Heated area.
TECH CRIMPED ROLL 2.0
- External thermal insulation of air ducts when the insulation is used in environments that may be exposed to bad weather.
- Fixing CLIMCOVER Roll type insulation to air ducts.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Adhesive polyethylene foam
Description:
CLIMCOVER ROLL ALU1 and CLIMCOVER ROLL ALU2 KA
Description:
TECH CRIMPED ROLL 2.0
Description:
CA 32 / CA 63 and CLIP
Description:
Description:
- Closed cell crosslinked polyethylene insulating foam 10 mm thick with an adhesive side covered with a silicone protective film.
- Dark gray color, delivered in a long roll. 50 m width. 1.50 m.
- Packaging in rolls of 75 m2.
- Limit temperature of use 105 ° C.
- Thermal resistance at 10 ° C: 0.29 (m2 K / W).
- Reaction to fire classification M1.

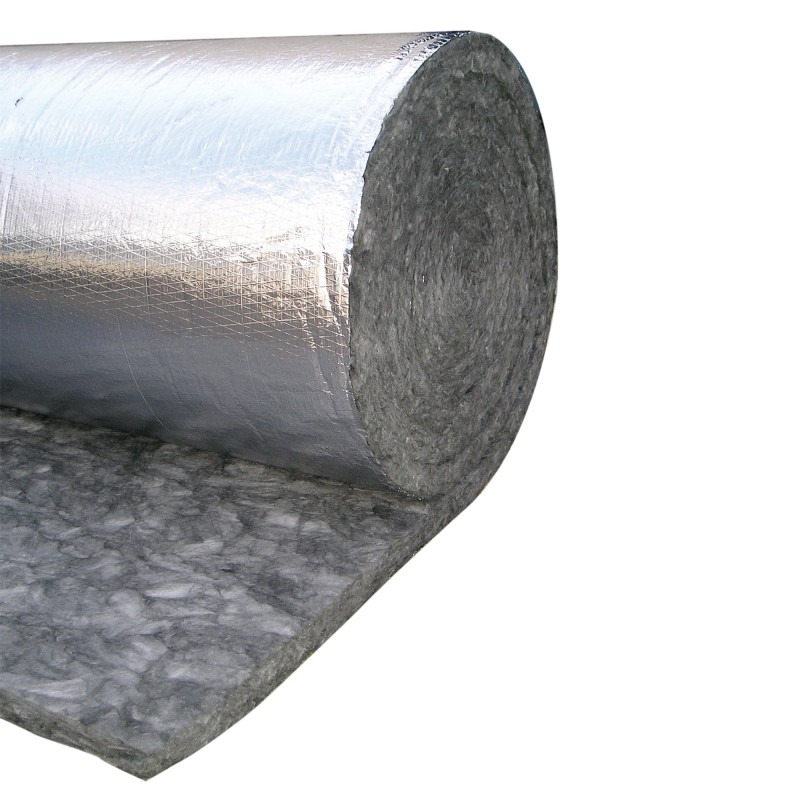

CLIMCOVER ROLL ALU1 and CLIMCOVER ROLL ALU2 KA
Description:
- CLIMCOVER Roll Alu1: old reference CLIMAVER 202.
- CLIMCOVER Roll Alu2 KA: old reference CLIMAVER 224.
- Glass wool felt 25 or 50 mm thick, impregnated with thermosetting resin.
- Coated on one side with pure aluminum foil reinforced with a three-way glass grid (CLIMCOVER Roll Alu1).
- Covered with a sheet of aluminum kraft paper (CLIMCOVER Roll Alu2 KA) reinforced with a three-way glass grid.
- CLIMCOVER Roll Alu1 fire classification: A1.
- CLIMCOVER Roll Alu2 KA fire classification: A2-s1, d0.
- Temperature limit for use 125 ° C.
- Thermal resistance at 10 ° C

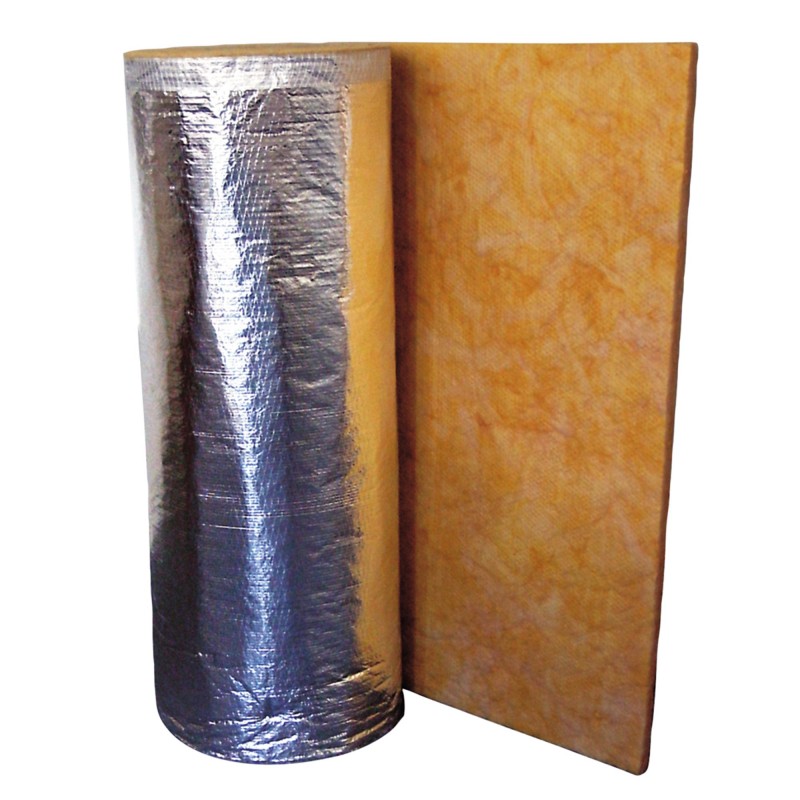

TECH CRIMPED ROLL 2.0
Description:
- TECH CRIMPED ROLL 2.0: old reference Nappe HRM 400.
- Glass wool tablecloth 40 mm thick, long. 9 m wide 1.20 m, marbled black color coated on one side with pure aluminum foil reinforced with a three-way grid.
- Limit temperature of use 400 ° C.
- Thermal resistance 1.21 (m² K / W).
- Not hydrophilic.
- Inert and rot-proof.
- Long fibers allow the material to support many times its weight without settling.
- Fire classification: A1.

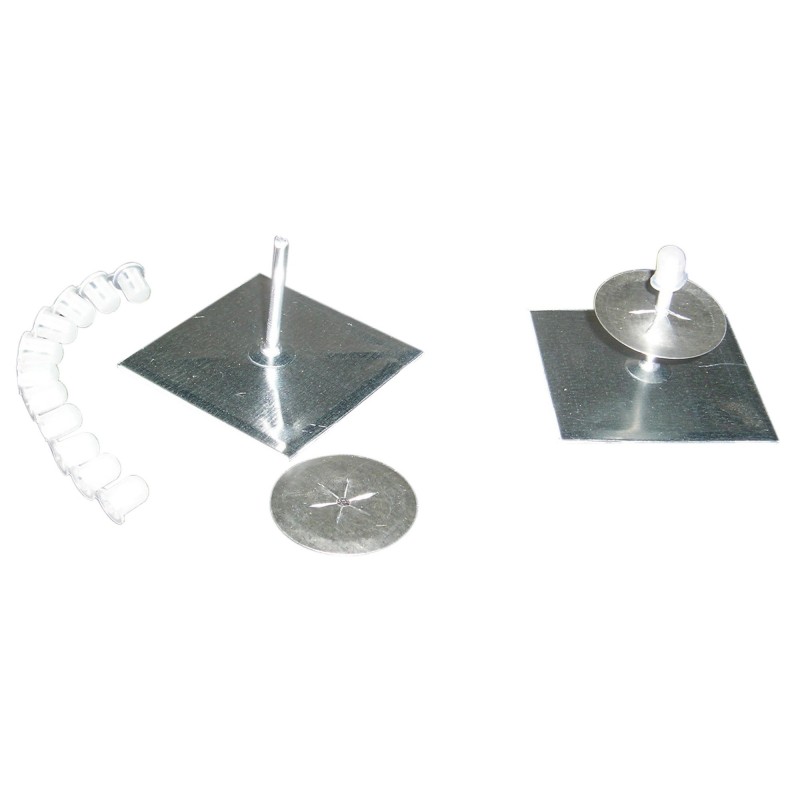

CA 32 / CA 63 and CLIP
Description:
- Adhesive points height 32 and 63 mm with fixing washers (CA32 and CA63) + plastic clips protecting the points (CLIP) for an insulation thickness of 25 mm.
