JBHB ECO ECM PR
Regulated C4 extraction boxes
Direct drive - Forward - ECM < 2700 m3/h
View larger
JBHB ECO ECM PR
New product
 |
ErP 2018 compliant - UVNR - Variable EC motor | |||
 |
 |
 |
 |
 |
- Low power consumption ECM motor
- Low noise level
- Constant pressure
Application
Air extraction.
Indoor or outdoor installation.
400 ° C 1 / 2h category C4 approved.
CMV in collective housing and tertiary premises.
Air intake in tertiary premises.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
5 sizes: 07/12/15/21/27.
Flow rates from 50 to 2,700 m3/ h.
With INTZ or with INTZ + BDEZ.
JBHB ECO ECM PR - Main spare parts
Construction
Motorization
Fan selection C4 - 400 ° C 1 / 2H
Flow rates from 50 to 2,700 m3/ h.
With INTZ or with INTZ + BDEZ.
JBHB ECO ECM PR - Main spare parts
Construction
- Z275 Galvanized sheet steel casing.
- Connection taps with class D sealing gaskets.
- Single inlet forward fan.
- Direct coupling.
- IP55 regulation box.
- Discharge grille allowing access to the impeller for cleaning.
- Deflector with acoustic foam as standard in configuration D..
- INTZ : padlockable proximity switch with mounted / wired position feedback.
- BDEZ : pressure switch fitted, air-connected, factory set at 80 Pa.
Motorization
- ECM electronically commutated motor, excluding air flow:
- IP44 class B mono, 230V 50Hz.
- IP44 class F mono, 230V 50Hz, size 21.
- Thermal protection managed by electronics.
Fan selection C4 - 400 ° C 1 / 2H
JBHB ECO ECM PR

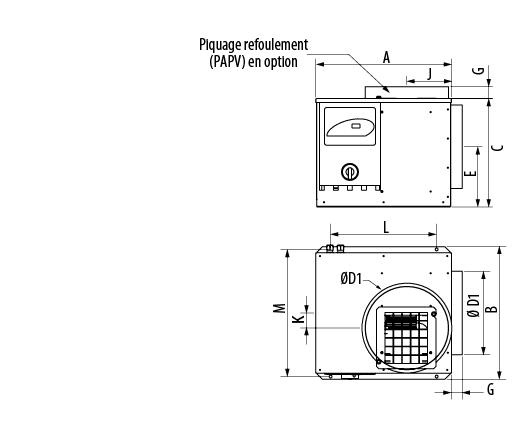

Angled 90 ° (C)

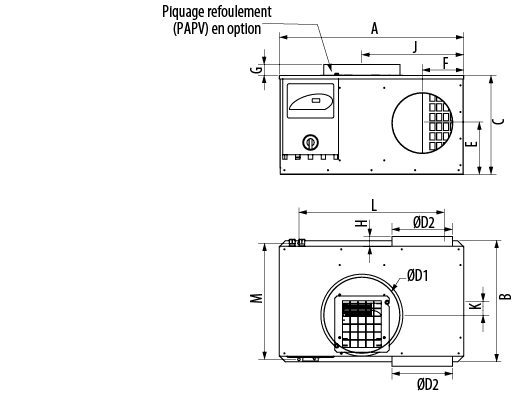

Double side suction (D)
|
Model |
Config. |
Dimensions |
|||||
|
A |
B |
C |
Ø D1 |
Ø D2 |
E |
||
|
JBHB ECO ECM PR 07 |
C |
462 |
420 |
325 |
250 |
170 |
|
|
D |
682 |
420 |
325 |
250 |
200 |
175 |
|
|
JBHB ECO ECM PR 12 |
C |
462 |
445 |
380 |
250 |
192 |
|
|
D |
682 |
445 |
380 |
250 |
200 |
212 |
|
|
JBHB ECO ECM PR 15 |
C |
512 |
500 |
410 |
315 |
227 |
|
|
D |
762 |
500 |
410 |
315 |
250 |
212 |
|
|
JBHB ECO ECM PR 21 |
C |
512 |
500 |
410 |
315 |
227 |
|
|
D |
762 |
500 |
410 |
315 |
250 |
212 |
|
|
JBHB ECO ECM PR 27 |
C |
575 |
595 |
500 |
400 |
250 |
|
|
D |
900 |
595 |
500 |
400 |
355 |
250 |
|
|
Model |
Config. |
Dimensions |
||||||
|
F |
G |
H |
J |
K |
L |
M |
||
|
JBHB ECO ECM PR 07 |
C |
45 |
136 |
50 |
375 |
400 |
||
|
D |
153 |
45 |
43 |
354 |
51 |
600 |
400 |
|
|
JBHB ECO ECM PR 12 |
C |
60 |
140 |
61 |
375 |
425 |
||
|
D |
153 |
60 |
35 |
360 |
62 |
600 |
425 |
|
|
JBHB ECO ECM PR 15 |
C |
60 |
168 |
57 |
400 |
480 |
||
|
D |
171 |
60 |
35 |
421 |
57 |
600 |
480 |
|
|
JBHB ECO ECM PR 21 |
C |
60 |
168 |
57 |
400 |
480 |
||
|
D |
171 |
60 |
35 |
421 |
57 |
600 |
480 |
|
|
JBHB ECO ECM PR 27 |
C |
80 |
217 |
55 |
400 |
575 |
||
|
D |
228 |
80 |
43 |
545 |
53 |
800 |
575 |
|
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Fire / Smoke extraction certificates
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Technical Notice (ATEC)
Product environmental profile (PEP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Commercial documents
Commercial leaflet (FCOM)
OPTAIR RT Conso
Download OPTAIR Conso
