TCRH/V ECOWATT - TCRH/V ECOWATT PR

Roof fans

Centrifuges - Reaction - ECM < 1200m3/h

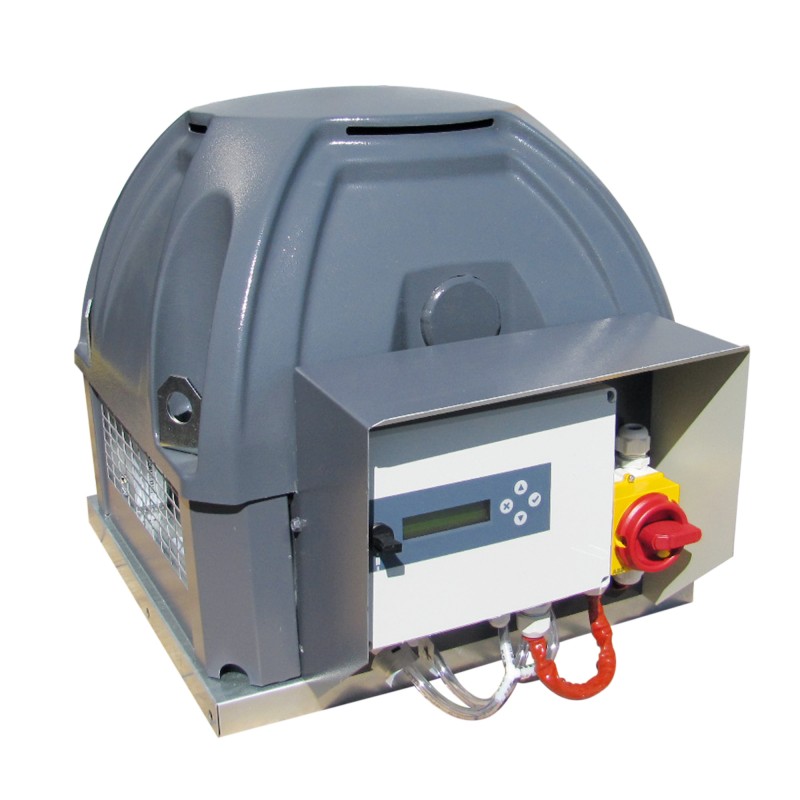

TCRH ECOWATT® PR View larger

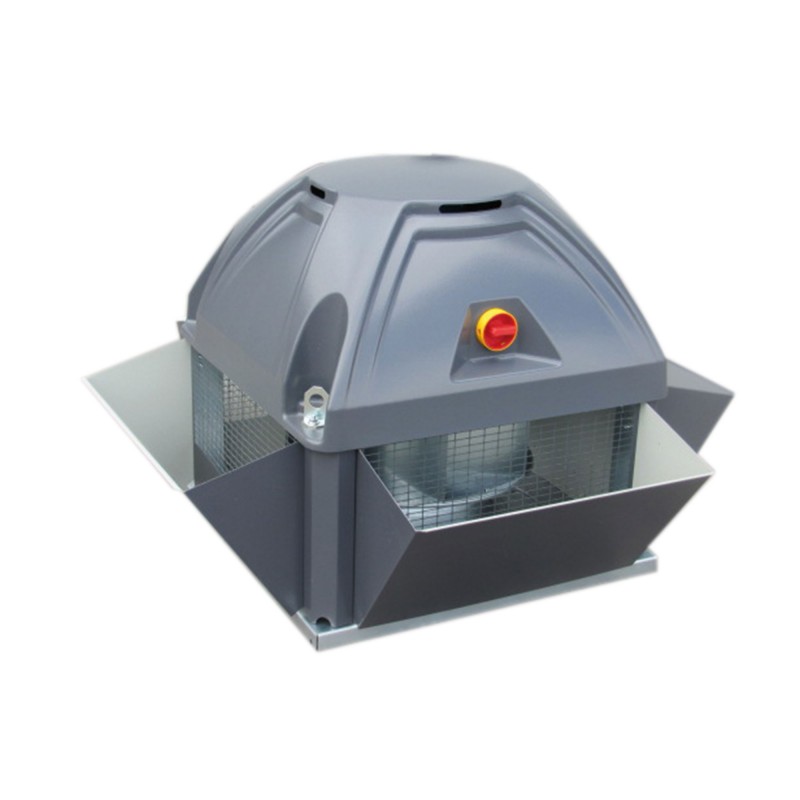

TCRH/V ECOWATT - TCRH/V ECOWATT PR

Roof fans


Centrifuges - Reaction - ECM < 1200m3/h

PIC-ERP-conforme-01.jpg ErP 2018 Compliant - Variable EC Motor
PIC-ATEC-GTC-MODBUS.jpg OPTAIR RT Conso

  • Low consumption ECM motor
  • Built-in potentiometer: TCRH-V ECOWATT
  • COP, CAV, VAV operation: TCRH-V ECOWATT PR
  • Modbus Communicator: TCRH-V ECOWATT PR
Applications:

Air extraction.
Outdoor installation.
Air intake in tertiary premises.

Tertiary buildings

Tertiary buildings

Order online Order online

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Flow rate: up to 1,200 m3/h.
Size: 225.
Standard version:
With INTZ or with INTZ + BDEZ.
  • TCRH ECOWATT: horizontal discharge.
  • TCRV ECOWATT: vertical discharge.
Regulated version:
  • With RMEC + INTZ.
  • TCRH ECOWATT PR: horizontal discharge.
  • TCRV ECOWATT PR: vertical discharge.


TCRH ECOWATT - TCRV ECOWATT - MAIN SPARE PARTS - SIZE 225


TCRH ECOWATT PR - TCRV ECOWATT PR - MAIN SPARE PARTS - SIZE 225

  • High performance reaction turbine in Z275 galvanized steel.
  • Optimized suction pavilion.
  • Direct coupling on the motor shaft.
  • Plate, arm and motor support in Z275 galvanized steel.
  • 4 lifting legs.
  • Arm covers, protective grilles in pre-painted galvanized steel sheet, gray 7024 for corrosion class C5 environments.
  • Meshes conforming to standard NF EN ISO 12499.
  • ABS PMMA cap in grey RAL 7024.
  • Vertical discharge version: addition of deflectors in RAL 7024 pre-painted sheet metal supplied factory-fitted.
  • INTZ : padlockable proximity switch with position feedback.
  • BDEZ : mounted pressure switch, air connection, factory set to 80 Pa only on TCRH-TCRV ECOWATT version.
  • TCRH ECOWATT: horizontal discharge on 2, 3, 4 sides (with POPM).
  • TCRV ECOWATT: vertical discharge on 2, 3, 4 sides (with POPM).
  • TCRH ECOWATT PR: horizontal discharge on 2 or 3 sides (with POPM).
  • TCRV ECOWATT PR: vertical discharge on 2 or 3 sides (with POPM).
Engine:
  • Electronically Commutated Motor (ECM):
    • IP 44, class B single phase, 230V 50Hz.
  • Electronically controlled thermal protection.

RMEC regulation: TCRH-TCRV ECOWATT PR
  • Operation in COP (constant pressure), CAV (constant flow) or VAV (variable flow).
  • Control box, IP55, factory mounted and wired.
  • Backlit LCD display, with function keys on the front, optional remote control.
  • Clear display of the measurement (pressure, flow rate) and the setpoint.
