SERVO MOT

Servomotors

For circular and rectangular dampers

View larger

SERVO MOT

Servomotors

For circular and rectangular dampers

Motorization of registers
Sold as accessories or mounted on VIM registers

Application

Damper control servomotors.

Tertiary buildings

Industrial and logistics buildings

Order online

Description
Dimensions
Documentation
Public Price
Software
References

Engine torque from 2 Nm to 40 Nm.
Voltage 230V or 24V.
IP54.
Electric cable length 1 meter.
All-or-nothing motorization, proportional, with or without return spring, with or without auxiliary contact.
Return spring for safety function: anti-frost damper, antenna closure, etc.
Auxiliary contact for information transfer.
Communicating servomotor, contact us.

Tension	Power	Surface register up to about	Axes (mm)	Running time (s)	Designation	Description	Code
All or nothing engine
230 V	2 Nm	0.4 m²	6-12.7	75	CM 230 L	All-or-nothing motor or 3-point control 2 Nm 230V	165390

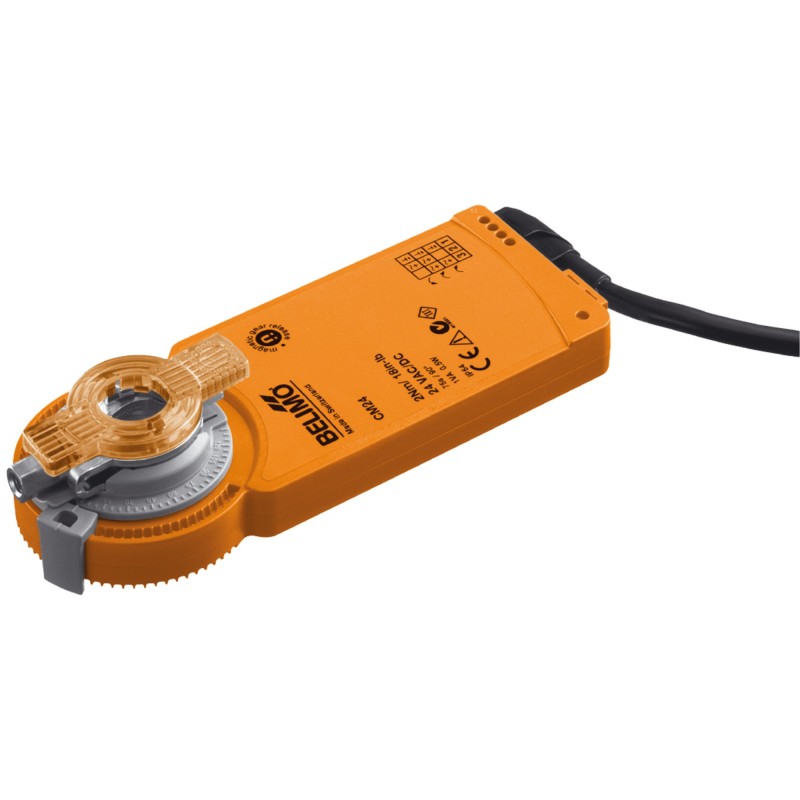

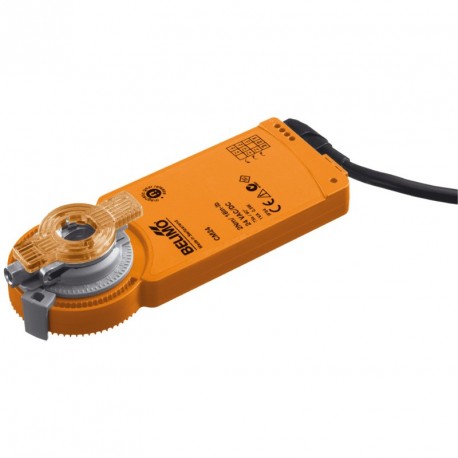

24 V	2 Nm	0.4 m²	6-12.7	75	CM 24	All-or-nothing motor or 3-point control 2 Nm 24V	165507

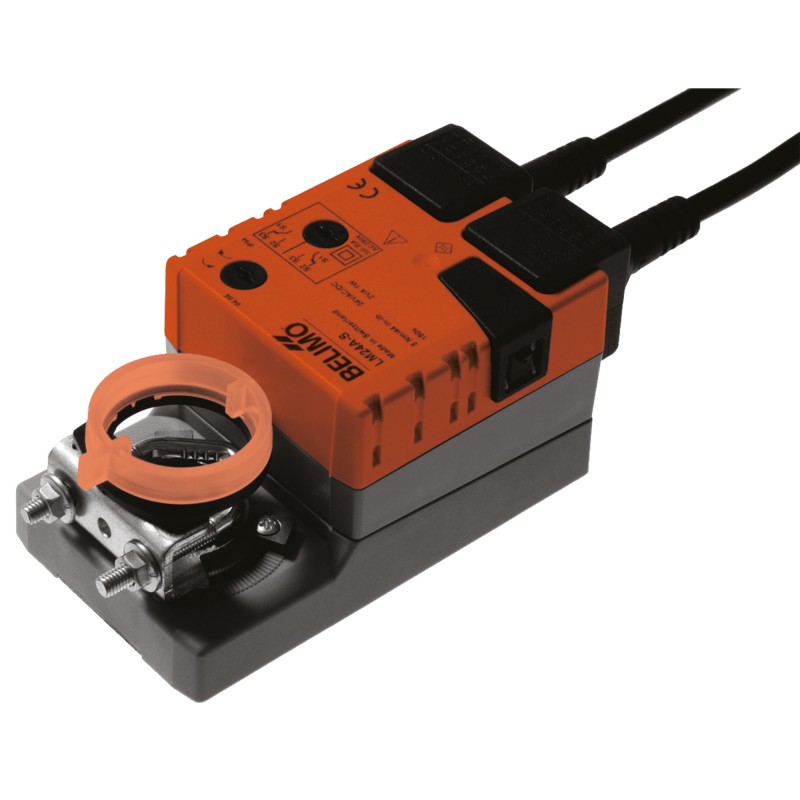

230 V	5 Nm	1 m²	6-20	150	LM 230 A	All-or-nothing motor or 3-point control 5Nm 230V	165546
24 V	5 Nm	1 m²	6-20	150	LM 24 A	All-or-nothing motor or 3-point control 5 Nm 24V	165545
230 V	10 Nm	2 m²	8-26	150	NM 230 A	All-or-nothing motor or 3-point control 10 Nm 230V	165549
24 V	10 Nm	2 m²	8-26	150	NM 24 A	All-or-nothing motor or 3-point control 10 Nm 24V	165548
230 V	20 Nm	4 m²	10-20	150	SM 230 A	All-or-nothing motor or 3-point control 20 Nm 230V	165552
24 V	20 Nm	4 m²	10-20	150	SM 24 A	All-or-nothing motor or 3-point control 20 Nm 24V	165551
230 V	40 Nm	8 m²	12-26.7	150	GM 230 A	All or nothing motor 40 Nm 230V	165599
24 V	40 Nm	8 m²	12-26.7	150	GM 24 A	All or nothing motor 40 Nm 24V	165511
All-or-nothing motor with safety function (return spring) and integrated auxiliary contacts for information transfer

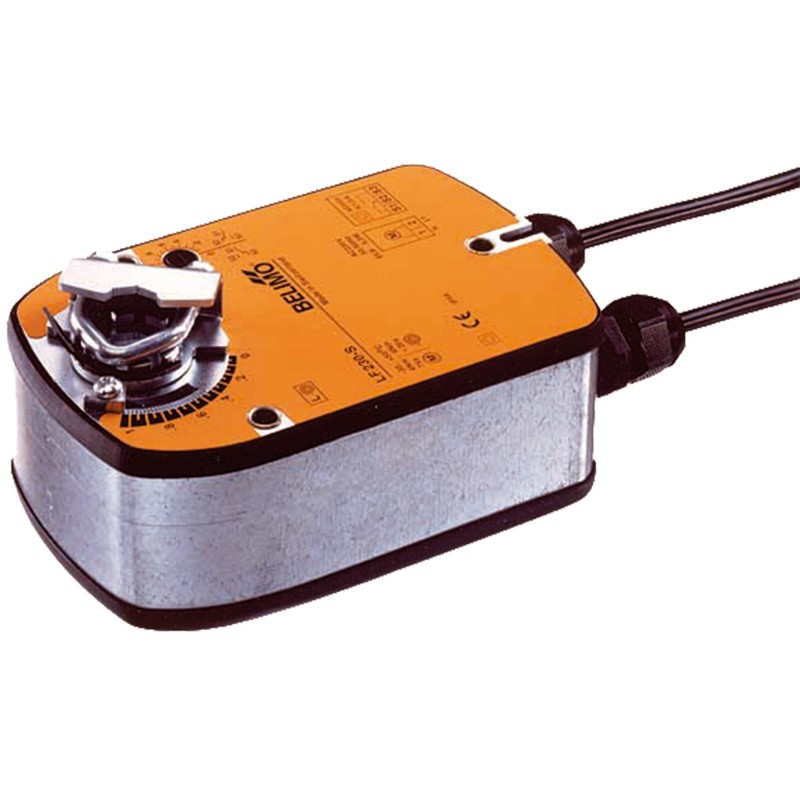

230 V	4 Nm	0.8 m²	8-16	75	LF 230 S	On/off motor-return spring 4 Nm 230V Aux. Cont.	165384
24 V	4 Nm	0.8 m²	8-16	75	LF 24 S	On/Off Motor - Return Spring 4 Nm 24V Aux. Cont.	165385
24 V	10 Nm	2 m²	10-25.4	75	NF 24 A-S2	On/Off Motor - Return Spring 10 Nm 24V Aux. Cont.	165682
24 V to 230 V	10 Nm	2 m²	10-25.4	75	NFA-S2	On/Off Motor - Return Spring 10 Nm 24-230V Cont. Aux.	165677
24 V to 230 V	20 Nm	4 m²	10-25.4	75	SFA-S2	On/Off Motor - Return Spring 20 Nm 24-230V Cont. Aux.	165683
24 V	20 Nm	4 m²	10-25.4	75	SF 24 A-S2	On/Off Motor - Return Spring 20 Nm 24V Aux. Cont.	165684
24 V	40 Nm	8 m²	12-26.7	150	GK24A-1*	All-or-nothing motor-return spring 40 Nm 24V	165539
Proportional motor
24 V	2 Nm	0.4 m²	6-12.7	150	CM 24-SR-L	Proportional motor 2/10 V 2Nm 24V	165508
230 V	5 Nm	1 m²	6-20	150	LM 230 A-SR	Proportional motor 2/10 V 5 Nm 230 V	165558
24 V	5 Nm	1 m²	6-20	150	LM 24-A-SR	Proportional motor 2/10 V 5 Nm 24V	165547
230 V	10 Nm	2 m²	8-26	150	NM 230 A-SR	Proportional motor 2/10 V 10 Nm 230V	165568

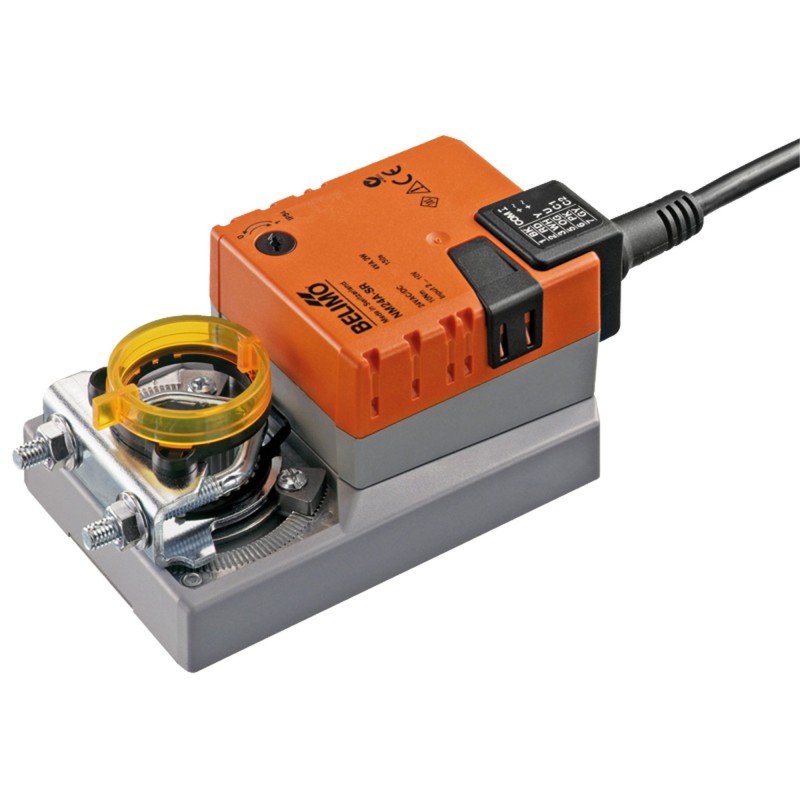

24 V	10 Nm	2 m²	8-26	150	NM 24 A-SR	Proportional motor 2/10 V 10 Nm 24V	165550
230 V	20 Nm	4 m²	10-20	150	SM 230 A-SR	Proportional motor 2/10 V 20 Nm 230V	165554
24 V	20 Nm	4 m²	10-20	150	SM 24 A-SR	Proportional motor 2/10 V 20 Nm 24V	165553
Proportional motor with safety function (return spring) and integrated auxiliary contacts for information transfer
24 V	2.5 Nm	0.4 m²	6-12.7	150	TF 24 SR*	2/10 V proportional motor with return spring 2.5 Nm 24V	165617
24 V	4 Nm	0.8 m²	8-16	150	LF 24 SR*	2/10 V proportional motor with 4 Nm return spring 24V	165386
24 V	20 Nm	4 m²	10-25.4	150	SF 24 A-SR-S2	2/10 V proportional motor with return spring 20 Nm 24V Aux. Cont.	165685
