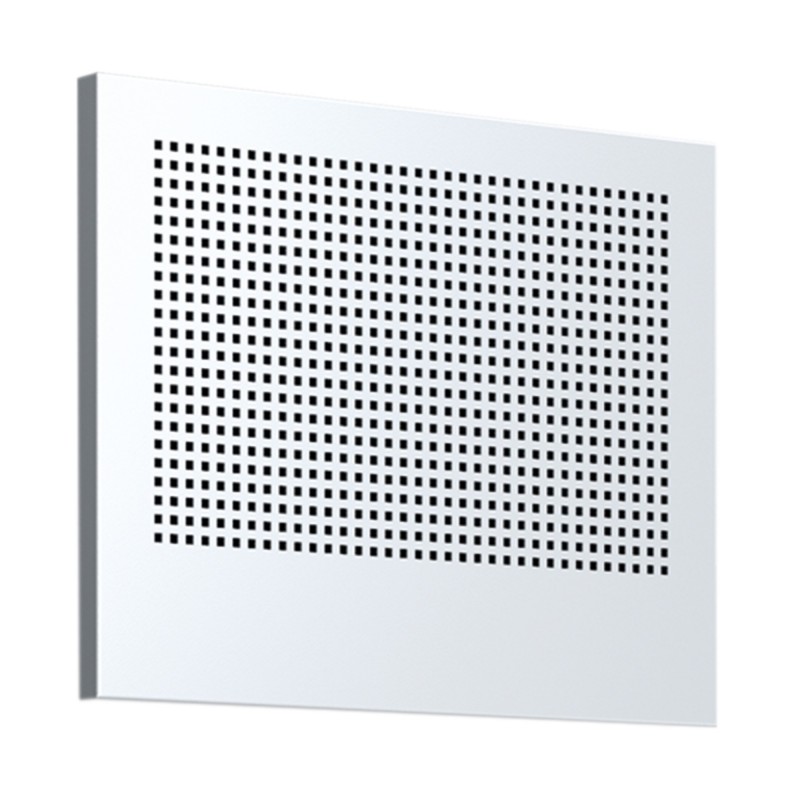

FINO
Small flow terminals
Metallic design - Blowing
View larger
FINO
New product
- Unique design
- Neat finish
- Durability, ease of maintenance
- Steel finish RAL 9016
- Simplified flow measurement
Application
Wall mounting.
Blowing.
Air conditioning, heating, ventilation.
CAD / BIM
Order online Description
Dimensions
Documentation
Public Price
Software
References
FINO
Description
- Ø100 / 125 / 160 mm.
- Flow rates: 20 to 150 m3/h.
Description
- Material : steel white epoxy paint RAL 9016.
- Possibility of closing part of the passage surface of the mouth with an internal magnetic tab.
- Lip seal.
- Flat front, square perforation.
- Other RAL colours (RAL 9010, RAL 9005, RAL 9006): contact us.
| Model | Ød | B | S | C | E | Weight (kg) |
| FINO-100 | 100 | 140 | 65 | 12 | 50 | 0.9 |
| FINO-125 | 125 | 170 | 80 | 12 | 50 | 0.9 |
| FINO-160 | 160 | 200 | 100 | 12 | 50 | 0.9 |
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Prescription assistance
Specification text (TP)
↑
