SOLUVA® AIR W

Wall air purifiers

UV-C lamps

View larger

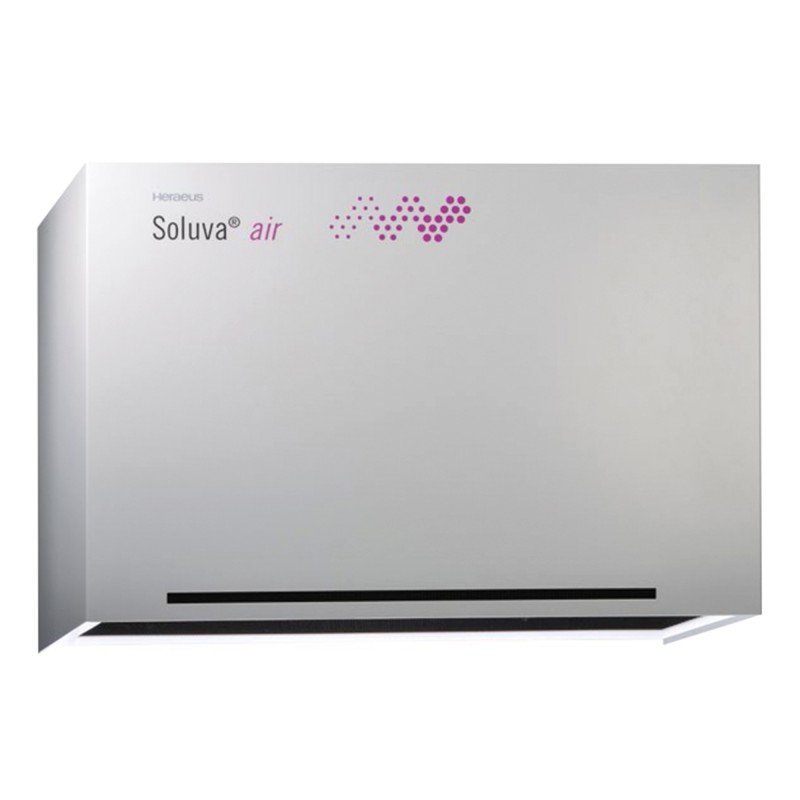

SOLUVA® AIR W

Wall air purifiers

UV-C lamps

Air purification by UV-C treatment
Virus reduction up to 99%
Ease of installation
Low maintenance

Application

Indoor installation, wall mounting.
Offices, meeting rooms, dining rooms, waiting rooms, doctor's offices, classrooms, restaurants ...
For premises from 15 to 50 m² on the basis of a renewal of 3 volumes per hour with a ceiling height of less than 3 m.
For spaces with a larger surface, plan several units.
Disinfection of viruses, germs and bacteria from the ambient air.
Complementary device to a ventilation system with fresh air supply.
Recycling operation, no action on the CO2 rate or on the relative humidity.

Tertiary buildings

Buildings for catering

Description

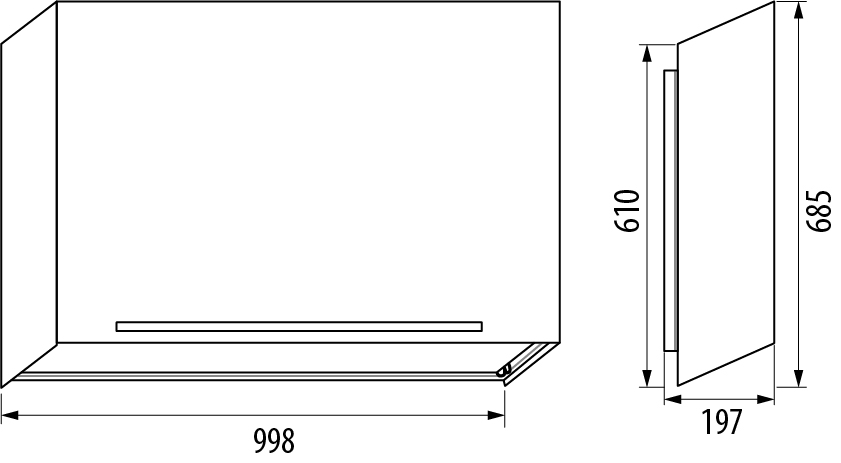

Dimensions
Documentation
Public Price
Software
References

1 model: flow rate from 100 to 400 m3 / h.
2 colors: Light gray RAL 7035, white RAL 9016.

Air purifier using UV-C lamp technology to destroy structures of bacteria and viruses.
UV-C lamps emit on the wavelength of 253.7 nm, without any chemical reaction and without the production of ozone, only the phenomenon of photolysis makes it possible to purify the air in complete safety.
Device equipped with two UV-C lamps with a unit power of 38 watts and a lifespan of 16,000 hours, limiting maintenance interventions.
Tangential fans with direct current motor.
Variable air flow between 100 and 400 m3 / h.
LED light strip indicating the operating status of the system, the need to change the lamps and a possible fault.
Regulation automaton.
On / off switch.
Simplified installation thanks to the wall mounting kit and the 2.5 m power cable supplied as standard.
Single-phase 230 V power supply.
