GA - GA GAS - GG
Flexible ducts
Galva or aluminum - Semi rigid
View larger
GA - GA GAS - GG
New product
- GA: Non-insulated semi-rigid aluminum conduit M0 - 3 m
- GA GAZ: Semi-rigid non-insulated aluminum conduit special M0 gas - 1.5 m
- GG: Semi-rigid galvanized steel conduit, uninsulated M0 - 3 m
- GA ISO: Semi-rigid insulated aluminum conduit M0/M0 - 3 m
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

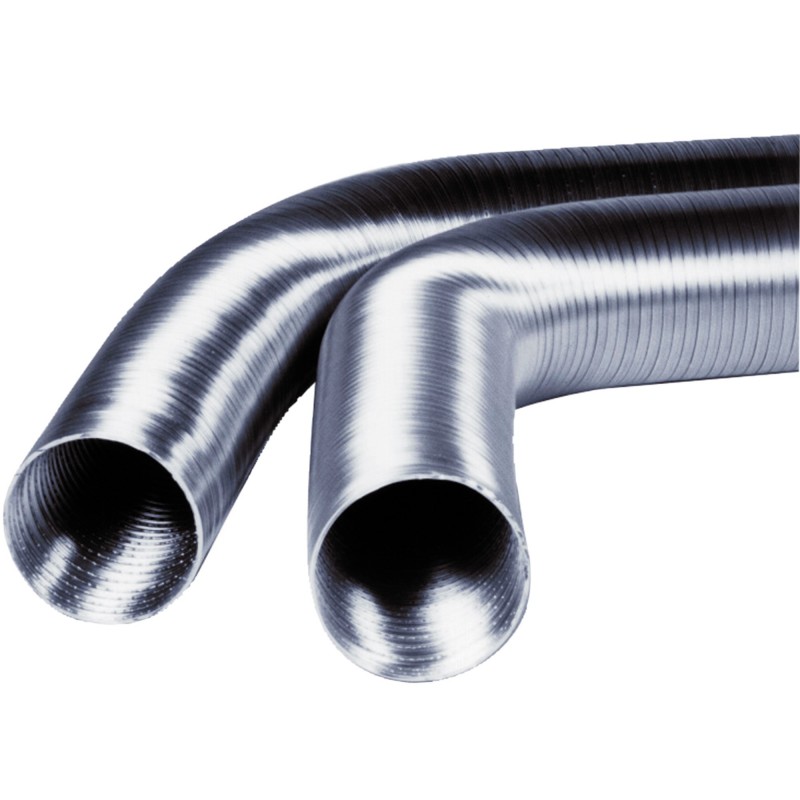

GA: Semi-rigid non-insulated aluminum conduit M0 - 3 m
GA GAZ Semi-rigid non-insulated aluminum conduit special gas M0 - 1.5 m
GG: Semi-rigid galvanized steel conduit, uninsulated M0 - 3 m
GA ISO: Semi-rigid insulated aluminum conduit M0/M0 - 3 m
- Class A1: incombustible.
- Aluminum, thickness 12/100 mm (Ø80 to Ø200) and 10/100 mm (larger diameters).
- Complies with DTU 68-3.
- Packaged in 3 m lengths compressed to 0.6 m.
- Temperature resistance: -30°C to +300°C.
- Radius of curvature:
- Ø
- Ø 200 to 315: R ≈ 1.5xØ
- Ø > 315 : R ≈ 2xØ
GA GAZ Semi-rigid non-insulated aluminum conduit special gas M0 - 1.5 m
- Class A1: incombustible.
- Semi-rigid aluminum, QUALIGAZ A5 approved, thickness 15/100 mm.
- Complies with DTU 68-3 (Special standard gas collective housing VMC).
- Packaged in compressed 1.5 m lengths.
- Operating temperature: 250°C.
- Peak temperature: 300°C.
- Radius of curvature: R ≈ 1xØ.
boiler mouth connection, internal diameter 118 mm, external diameter 125 mm.
GA GAZ - 125/132: boiler mouth connection, internal diameter 125 mm, external diameter 132 mm.
- Supplied with a male sleeve for boiler connection.
GG: Semi-rigid galvanized steel conduit, uninsulated M0 - 3 m
- Class A1: incombustible.
- Galvanized steel, thickness 8/10 (Ø80 to 200), 10/10 (larger diameters).
- Complies with DTU 68-3.
- Packaged in 3 m lengths.
- Temperature resistance: -30°C to +300°C.
- Radius of curvature:
- Ø
- Ø 200 to 315: R ≈ 1.5xØ
- Ø > 315 : R ≈ 2xØ

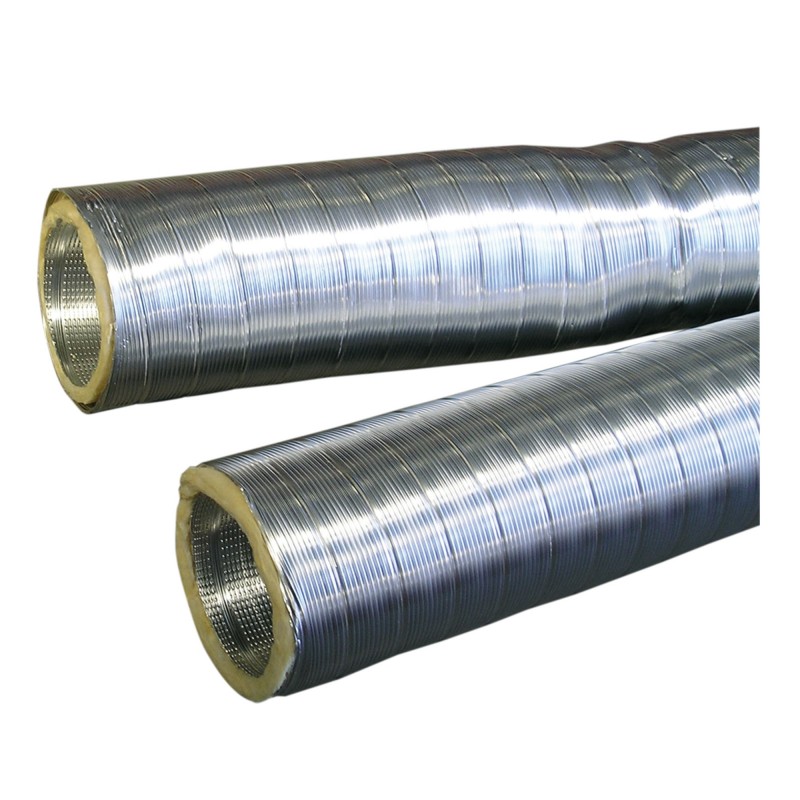

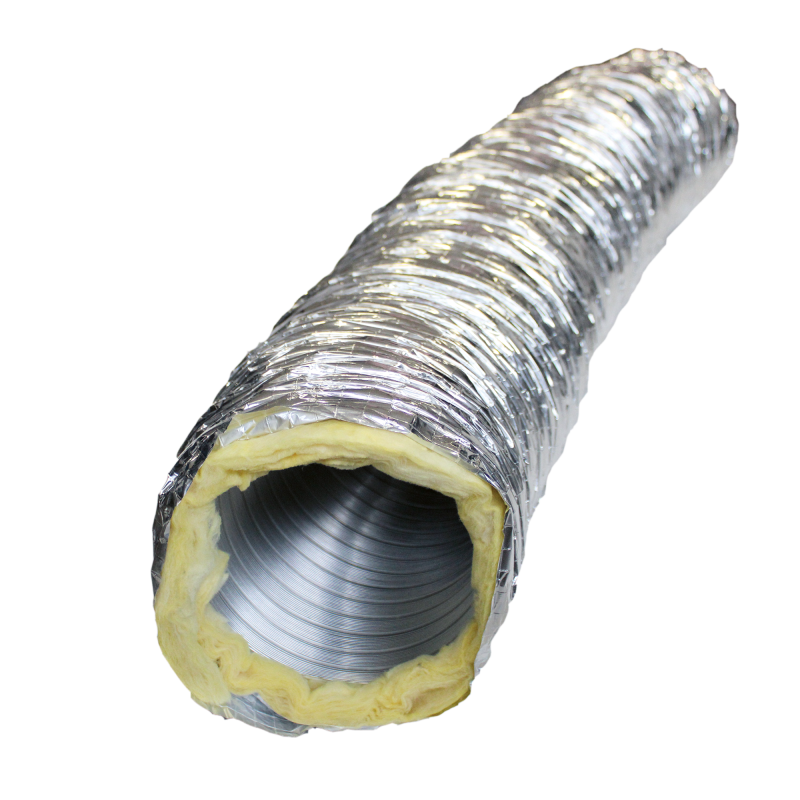

GA ISO: Semi-rigid insulated aluminum conduit M0/M0 - 3 m
- Soundproof.
- Classified A2-s1-d0 (M0/M0).
- Interior/exterior: aluminum, thickness 10/100 mm.
- 25 mm thick glass wool insulation.
- Packaged in 3 m lengths, uncompressed.
- Temperature resistance: -30°C to +250°C.
- Radius of curvature:
- Ø
- Ø 200 to 315: R ≈ 2.5xØ
- Ø > 315 : R ≈ 3xØ
