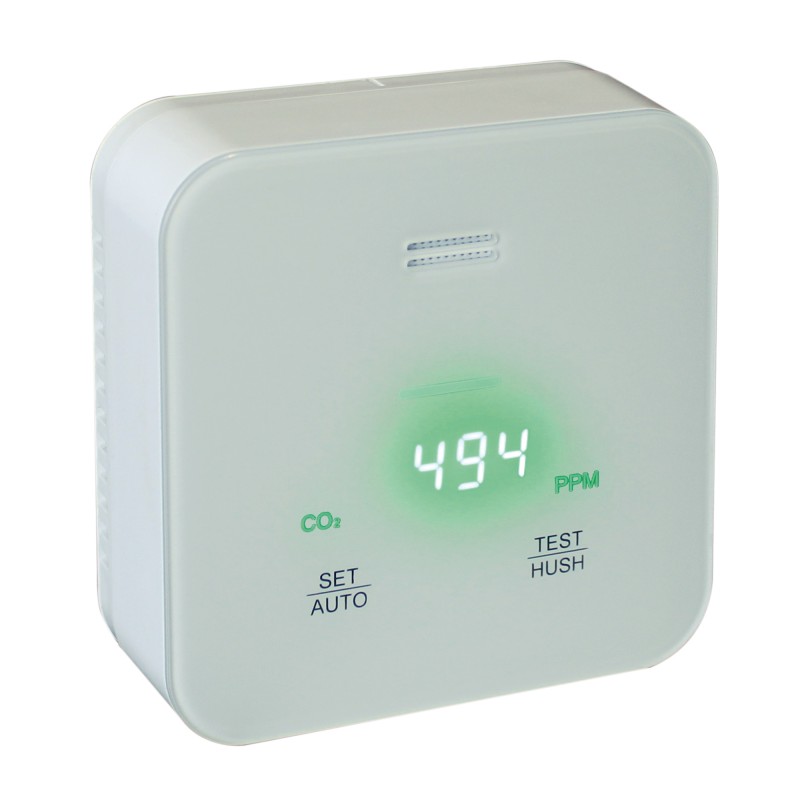

ACO2

IAQ and comfort sensors

Display CO2 + Temperature + RH

View larger

ACO2

IAQ and comfort sensors

Display CO2 + Temperature + RH

Large color screen
Display of CO2 level + temperature + hygrometry
Visual + sound alarms for exceeding thresholds

Applications:

Visualization of CO2 level, temperature and hygrometry in tertiary premises.
Meets the obligation to monitor IAQ in establishments receiving a sensitive public.
Product for informational and educational purposes.

Order online

Description

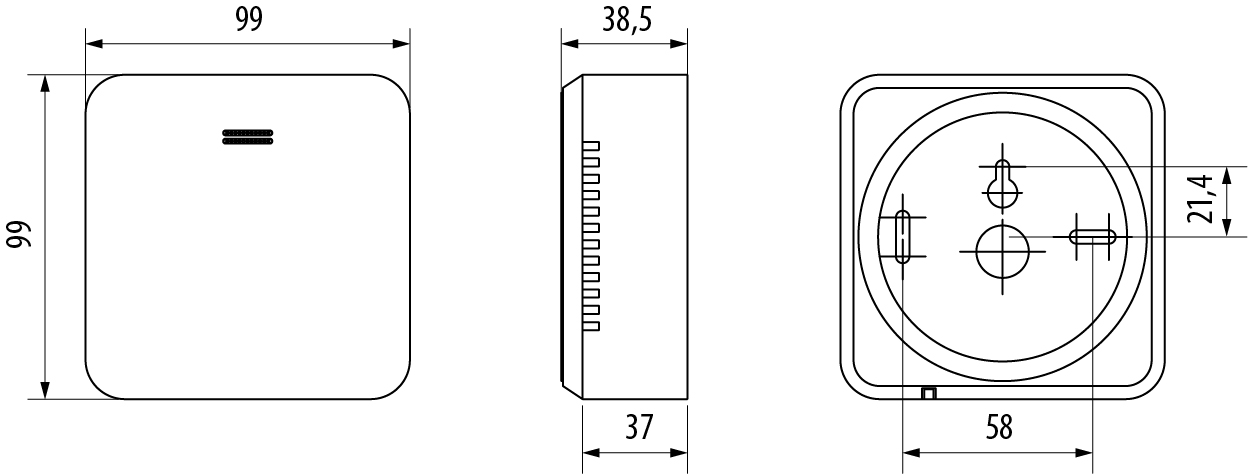

Dimensions
Documentation
Public Price
Software
References

1 ACO2 model: room measurement probe.

Measures and displays the CO2 concentration in the ambient air, in order to be alerted in the event of exceeding thresholds and to apply the appropriate measures (ventilation, reduction in the number of people, etc.).
Measurement by non-dispersive infrared (NDIR).
Indicator light color:

Green	CO2 measurement
Orange	1000 ≤ CO2 measurement
Red	CO2 measurement ≥ 1500 ppm

Audible alarm when the CO2 measurement reaches 1500 ppm alarm can be deactivated.
Automatic calibration.
Can also display ambient temperature and humidity.

Facility	Wall-mounted 1.5 to 1.8 m high (mounting bracket and screws supplied) or free-standing
Feed	12VDC 230VAC / 12VDC mains adapter supplied An integrated lithium-ion battery provides 12 hours of autonomy in the event of a power outage
Consumption	100mA max
CO2 measurement range	400 to 5000ppm
Temperature measurement range	0 to +50°C
Relative humidity measurement range	0 to 95%
Visualization	By display + 3-color LED: green, orange and red
Audible alarm	75dB; deactivatable function
Exit	None (display of measurements only)
Matter	Black plastic box
Protection sign	30
Usage environment	0 to +50°C; max 95%HR non-condensing
calibration	Automatic when powered on
Weight	290g
