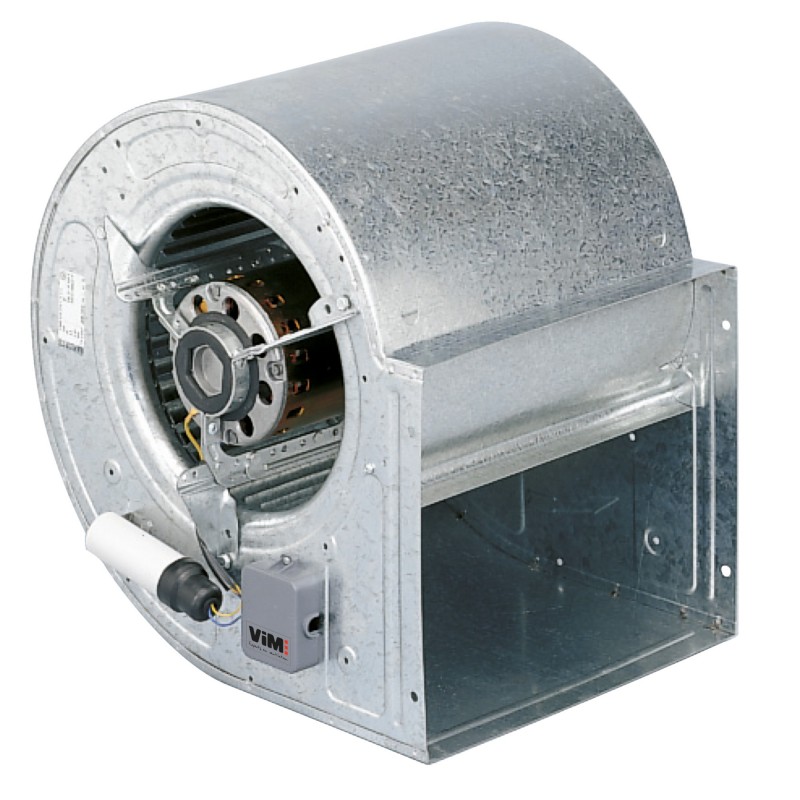

Fan

  • Multiple applications

Application

Component for ventilation unit or replacement.
It is incorporated into air conditioning and air treatment equipment, into unit heaters, into ventilation boxes and into kitchen hoods.
Airflow temperature from -20°C up to 60°C depending on engine.

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

8 wheel sizes: 7/7, 9/7, 9/9, 10/8, 10/10, 12/9, 12/12 and 15/15 inch series.
Flow rate from 400 to 9,000 m3/h.


Construction
  • Double-louvered volute in Z200 galvanized steel sheet.
  • Galvanized steel action turbine, dynamically balanced according to ISO 1940.
  • Direct drive with motor incorporated in the turbine.
Motorization
  • Single-phase motor 1 speed 230 V 50Hz class F:
    • 4 or 6 poles IP44.
    • Capacitor fixed on the volute.
  • 1-speed three-phase motor 230/400 V 50Hz class F:
    • 6 poles, IP44 or IP55 according to characteristics table.
  • IP 20 connection box.
  • Thermal protection with automatic reset at 170°C.
  • Motors mounted on silent blocks to attenuate vibrations and structure-borne noise.
  • Bearings greased for life.

Technical fans selection
CBM

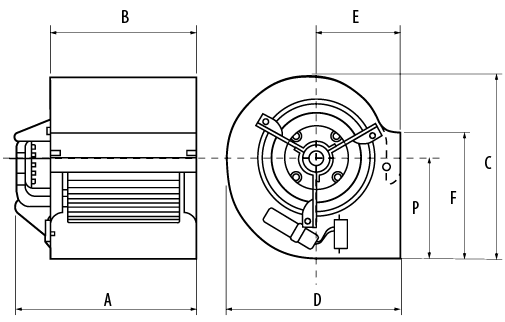

Templates

A

B

C

D

E

F

P

CBM-7/7 72W 6PC VR

270

233

327

308

145

207

187

CBM-9/7 373W 4PC VR

306

234

390

381

184

260

221

CBM-9/9 373W 4PC VR

348

300

390

381

184

260

221

CBM-9/9 550 4PC VR

371

300

390

381

184

260

221

CBM-10/9 550 4PC VR

357

267

443

423

200

288

249

CBM-10/8 736 4PT C 393 267 443 423 200 288

249

CBM-10/8 1500 4PT C 401 267 443 423 200 288

249

CBM-10/10 245 6PT C VR 377 333 443 423 200 288

249

CBM-10/10 550 4P C VR 388 333 443 423 200 288

249

CBM-10/10 1500 4PT C 387 333 443 423 200 288

249

CBM-12/9 736 6 PC VR 419 311 521 490 229 341

293

CBM-12/9 736 6PT C 419 311 521 490 229 341

293

CBM-12/9 1100 6PT C 416 311 521 490 229 341

293

CBM-12/12 736 6P C VR 459 396 521 490 229 341

293

CBM-12/12 1100 6PT C 460 396 521 490 229 341

293

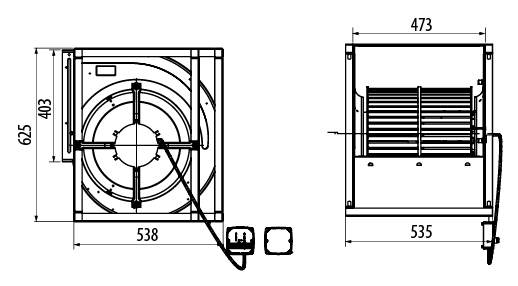

CBM 15/15

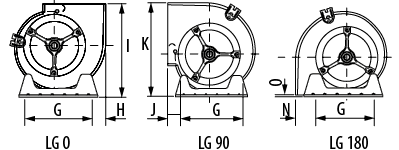

Orientations

Templates

G

H

I

J

K

N

O

CBM 7 /

225

48

314

57

333

9

6

CBM 9 /

296

35

382

69

396

35

6

CBM-10 /

339

39

427

67

452

39

8

CBM-12 /

407

41

497

70

529

42

5

Close Open Detailed specifications

Text catalog pages (CT)

Catalog Pages - Other

Close Open Public tariff price

Price catalog pages (CP)

Close Open Electrical / ATEX Certificates

Electrical CE Declarations (DCCE)

Close Open Prescription assistance

Specification text (TP)
