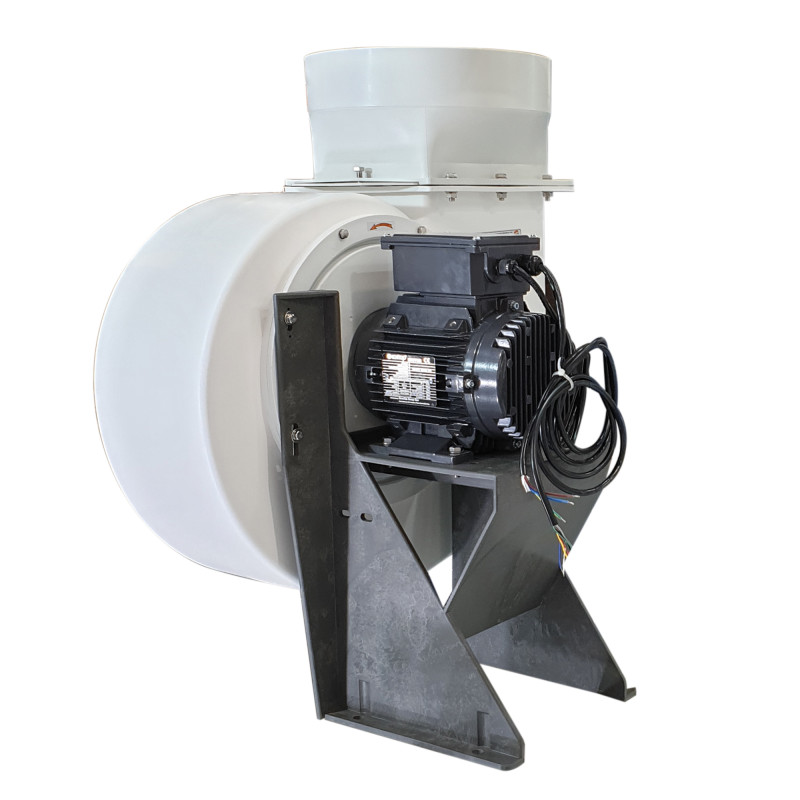

VSA EC - VSB EC - VSAT EC - VSBT EC

Polypropylene motor fans

Centrifuges - Action - ECM < 7,000 m3/h

View larger

VSA EC - VSB EC - VSAT EC - VSBT EC

Polypropylene motor fans

Centrifuges - Action - ECM < 7,000 m3/h

	ECM Engine

Anti-corrosive: injected polypropylene (PPH)
Engine outside the airflow
Low-consumption EC motors

Laboratories. Extraction from the fume cupboard.
“Anti-acid” type fans for aggressive atmospheres, resistant to most acids and solvents for transported gas temperatures below 60°C. Ambient air conditions -20°C/+40°C and 75%.

Industrial and logistics buildings

Description
Dimensions
Documentation
Public Price
Software
References

2 models

Motorcycle fans.
Turrets (up to size 30).

8 sizes:

Motor fans: VSA 20 / 25 / 30 and VSB 20 / 25 / 30 / 35 / 42
Turrets: VSAT 20 / 25 and VSBT 20 / 25 / 30

Flow rates from 100 to 7,000 m3/h.
2 standard pressure ranges for each model:

VSB: low pressure motor fans.
VSA: high pressure motor fans.
VSBT: low pressure turrets.
VSAT: high pressure turrets.

Construction

Polypropylene volute, UV resistant, stainless steel screws. For motor fans: adjustable to 6 positions. Standard position: 0 LG.
Statically and dynamically balanced action impeller, made of polypropylene with aluminum hub embedded in polypropylene.
Rectangular flange discharge, optionally circular. Anti-corrosion seal against the risk of gas leakage.
Support chair with stainless steel screws:
- Nylon for sizes 20/25.
- Polypropylene for sizes 30/35.
- Galvanized steel 42.

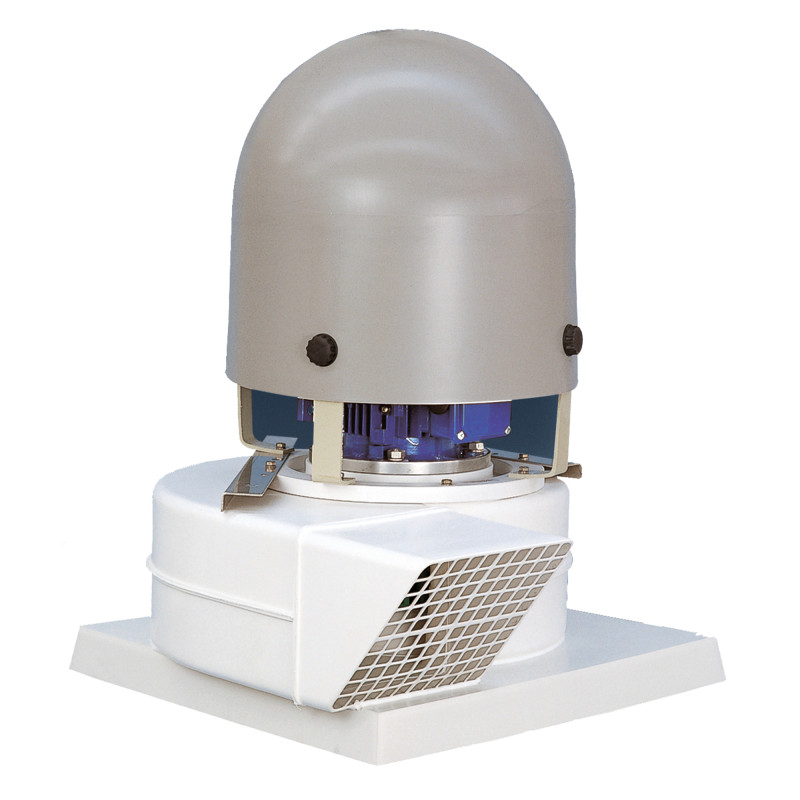

Turrets: polypropylene engine cover resistant to environmental factors.

Motorization

ECM engine with on-board controller:
- Single-phase power supply 230V 50/60Hz up to and including size 30,
- Three-phase power supply 400V 50/60Hz in sizes 35 and 42.
ModBus communication on RS485 port, communication software provided.

Accessories

RPSB - RPSA: anti-corrosive accessory to adapt the rectangular flanged port to the circular pipe. Thanks to the air flow throttle flap, it is possible to regulate the fan performance.
RPRB - RPRA: RPSB - RPSA accessory without adjustment flange.
TFSB - TFSA: Flange connection with inclined outlet equipped with a protective mesh. Thanks to the air flow throttle flap, it is possible to regulate the fan performance. Flangeless version TEFB-TEFA available.
MSGX outlet check valve assembly: gravity-closing fins prevent air from returning to the fan.
CPMX PVC engine cover designed to protect the engine against atmospheric agents.
SCCX Volute Drain: Circular expulsion sleeve for the discharge of condensation liquid and rainwater. Welded directly onto the fan volute.
GTX PVC flexible sleeve: anti-corrosive PVC accessory for connecting the suction/discharge port to the circular pipe of length 160 mm.
CMN rain cap: vertical PVC air outlet, fitted with a protective cap that prevents rain from entering. It has a female fitting end.
Vertical discharge execution for RJVX turrets.

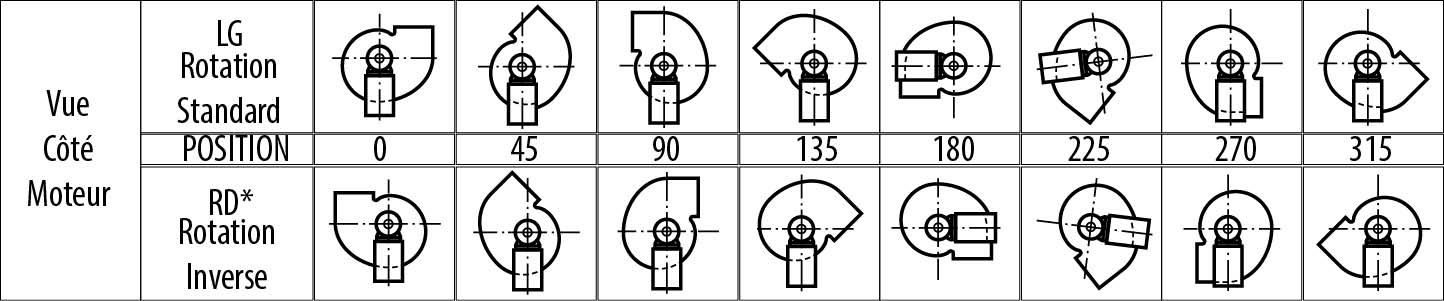

Direction of rotation and position

* Rotation not available for VSA 20 and VSA 30 fan motors

Polypropylene centrifugal fans

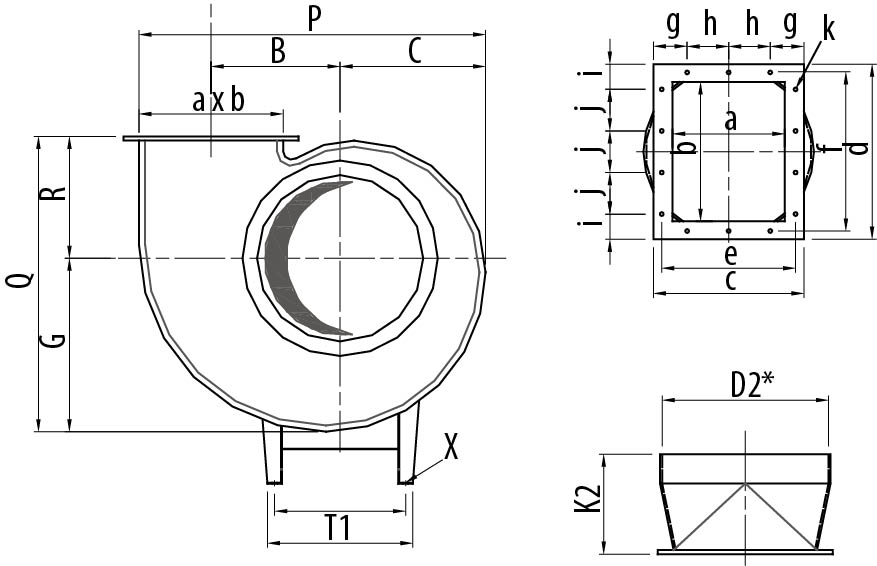

“B” Flange Discharge (standard)

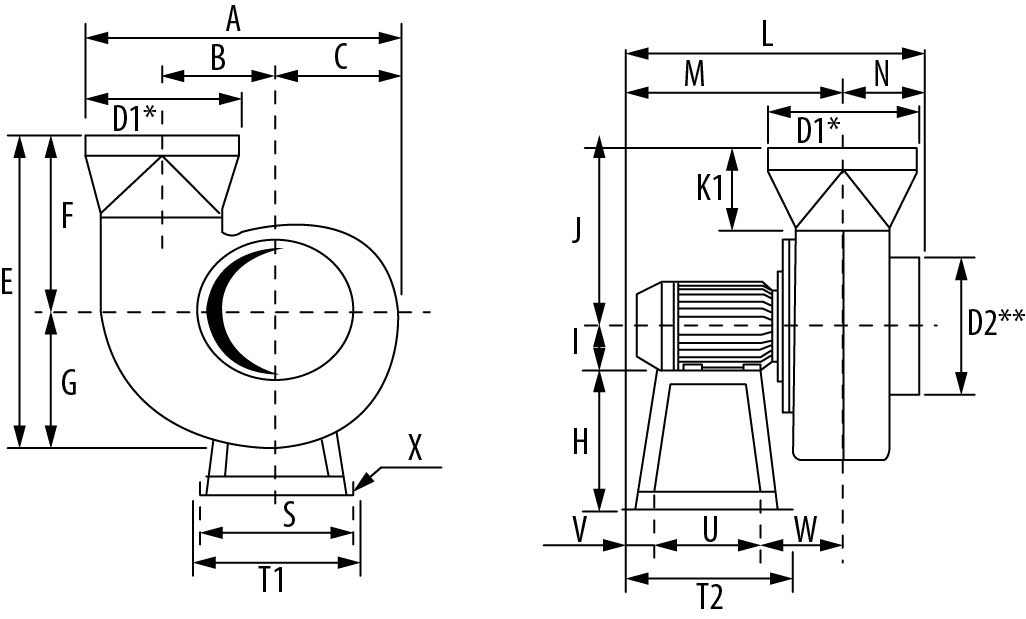

Circular discharge “A” (on request for VSB 25 and 30)

Kind	A	B	C	ØD1	ØD2	E	F	G	H	I	K2	L	M	N	P	Q	R
VSB 20	418	148	170	200	200	501	300	201	200	300	168	420	300	120	398	349	148
VSB 25	520	185	210	250	250	570	320	250	250	320	160	486.5	357.5	129	495	428	178
VSB 30	598	222	251	250	315	545	245	300	310	245	170	565	380	185	593	515	215
VSB 35		259	297		355			353	320		210	660	450	210	696	628	275
VSB 42		310	357		400			424	410		230	810	565	245	834.5	724	300
VSA 20		139.5	157		160			177	200		120	370	285	85	349	325	148
VSA 25		175	193		160			219	250		120	459	355	104	433	394	175
VSA 30		210.5	237		200			269	310		265			155	525	494	225

Kind	S	T1	T2	U	V	W	ØX	a	b	c	d	e	f	g	h	i	I	nbs x Øk
VSB 20	215	240	240	170	35	95	10	160	130	210	180	194	164	20	2x85	90		8x7
VSB 25	255	280	280	175	52.5	130	10	200	160	266	228			13	3x80	13	2x101	10x7
VSB 30	234	260	275	175	50	155	12	240	195	306	265	282	241	53	2x100	82.5	100	10x9
VSB 35	285	320	300	200	50	170	12	280	225	356	305	326	275	28	3x100	102.5	100	12x9
VSB 42	315	350	350	250	50	197	12	335	270	421	362	381	322	60.5	3x100	81	2x100	14x9
VSA 20	215	240	240	170	35	80	10	105	90	150	140	130	120	30	1x90	70		6x9
VSA 25	255	280	280	175	52.5	112	10	130	115	180	180	160	160	10	2x80	10	2x80	8x7
VSA 30	234	260	275	175	30	130	12	155	140	221	210	200	186	10.5	2x100	12	2x93	3x9

	VSA						VSB
Kind	20-2	20-5	25-2	25-4	30-2	30-4	14	20-2	20-4	20-6	23-4	23-6	24-2	24-4	24-6	25-4	25-6	30-4	30-6	35-4	35-6	42
I (axle height in mm)	71	63	90	71	100	80	63	80	63	71	80	71	90	80	71	80	71	90	80	100	90	132
