JBRE AC PR

Regulated C4 extraction boxes

Direct drive - Reaction - AC < 12,000 m3/h

Flag Nouveau
JBRE AC PR View larger

JBRE AC PR

Regulated C4 extraction boxes


Direct drive - Reaction - AC < 12,000 m3/h

PIC-ERP-conforme-01.jpg Conforme ErP
PIC-Isolation-acoustique-01.jpg Pression régulée VMC Hygro - Cdep 2 Maintenance facilitée OPTAIR VMC, RT CONSO

  • AC motor out of airflow
  • Good quality/performance/price ratio
  • High performance reaction wheel
  • COP constant pressure operation
  • Single-phase and three-phase
Applications :
New or renovated.
Air extraction.
Indoor or outdoor installation.
Approved 400°C 1/2h category C4.
VMC in collective residential buildings.
Air return in tertiary premises.
Ideal for replacing the HUCF ECO / HUCF ranges during renovation.


Collective residential buildings

Collective residential buildings
Tertiary buildings

Tertiary buildings

Order online Order online

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Flow rates from 200 to 12,000 m3/h.
6 sizes: 20/30/45/70/80/115.
Factory vertical discharge, configurable on site:

  • Interchange a side hatch and the grille to change the orientation of the discharge
  • Reverse the frequency converter without unwiring it to change the direction of access to it.
  • Obligation to change the direction of the variator when using the JBRZ04 option for horizontal discharge to the right.

Available configurations:

  • VM: horizontal suction and vertical discharge
  • VD: double horizontal suction and vertical discharge
JBRE AC PR - Main spare parts

Construction
  • Z275 galvanized sheet steel box, 4 fixing points.
  • Handles for handling.
  • IP66 pre-wired frequency converter mounted/wired on the box, equipped with a padlockable proximity switch (INTZ).
    • 230V single drive power supply, 230V three-way motor output.
    • 400V tri drive power supply, 400V tri motor output.
    • 1 programmable dry contact output (default, on) available.
    • Integrated MODBUS communication.
  • BDEZ: Pressure switch mounted, air-connected, factory set at 80Pa, cannot be modified.
  • High performance reaction turbine in Z275 galvanized steel.
  • Direct coupling.
  • Connection tapping with class D seals.
Motorization
  • AC motor outside the air flow: IP55, IE3, class F, three-phase 230/400V, 50Hz, integrated thermal protection with closed contact at rest (PTO), to be connected for use in air return in tertiary premises ( no 400°C 1/2h).
  • Thermal protection managed electronically and approved for C4 operation.
VCHV regulation
  • COP constant pressure operation.
  • Regulation box, IP54, factory mounted and wired:
    • Setpoint adjustment keys,
    • Clear display of the pressure measurement and the set point.

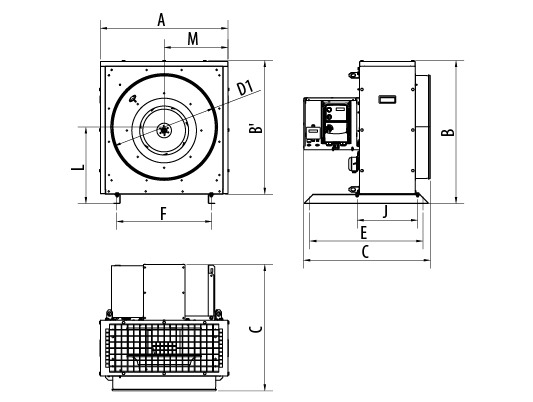

JBRE AC PR VM
Size HAS B B' C ØD1 E F I L M Weight (Kg)
without JBRZ 03
20 550 630 580 577 400 507 356 225 345 275 35
30 575 655 605 643 450 573 386 287 375 287.5 40
45 691 791 721 683 560 613 516 328 415 345.5 46
70 771 851 801 715 630 645 576 360 465 385.5 61
80 873 954 904 767 710 697 666 376 510 436.5 76
115 1146 1226 1176 830 800 720 966 393 646 573 107

JBRE AC PR VD

Size HAS B C ØD2 I I K P N Weight (kg)
20 550 580 973 355 350 225 675 727 350 50
30 575 605 1139 400 380 287 841 839 350 57
45 691 721 1181 450 510 321 882 894 335 68
70 771 801 1213 500 570 360 915 912 360 83
80 873 904 1365 630 660 376 1067 996 415 107
115 1146 1176 1496 630 960 393 1157 1082 460 155
