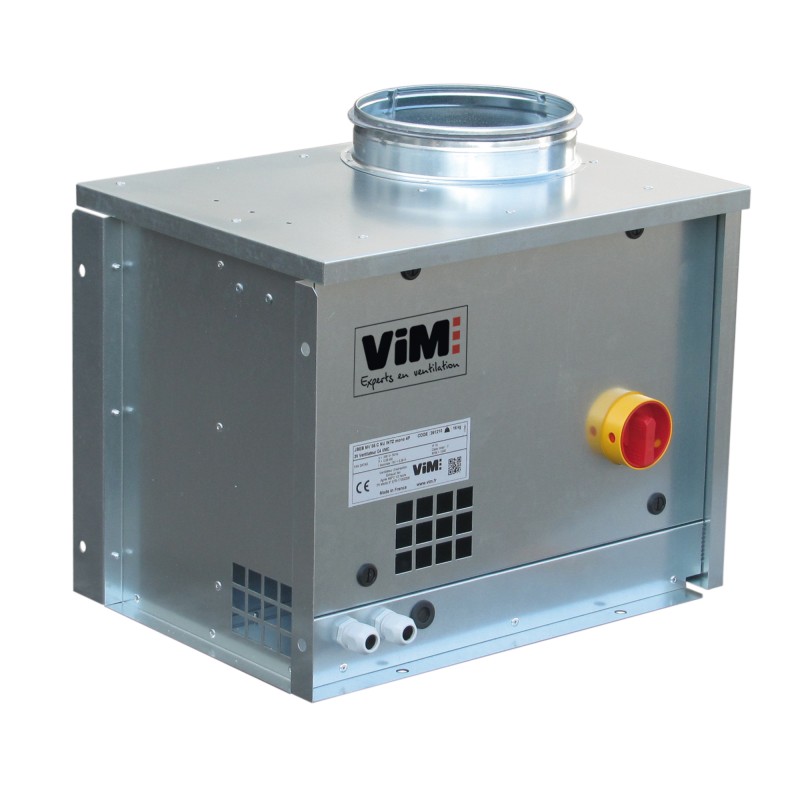

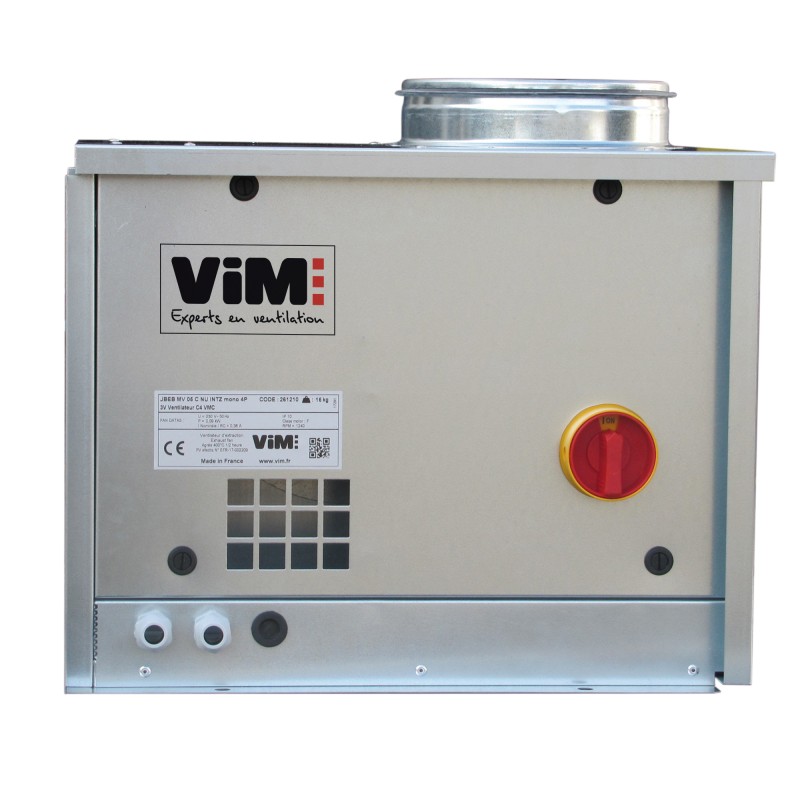

JBEB MV MA
Unregulated C4 extraction boxes
Direct drive - Action - AC < 800m3/h
View larger
JBEB MV MA
New product
 |
ErP 2015 Compliant - Fan
|
||
 |
 |
 |
|
- Economy range
- Low noise level
- Compliance with Hygro Technical Notice and CPT 3827 - Cdep 1
Applications:
Air extraction.
Indoor or outdoor installation.
Horizontal or vertical mounting.
Approved 400°C 1/2h category C4 – PTO not connected.
Not approved – PTO connected.
VMC in collective housing – approval 400°C 1/2 hour.
VMC in tertiary premises – approved 400°C 1/2 hour.
Air intake in tertiary premises – without approval.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
2 sizes: 05/08.
Flow rates from 100 to 800 m3/h.
With INTZ or with INTZ + BDEZ.
JBEB MV MA - Main spare parts
Construction
Flow rates from 100 to 800 m3/h.
With INTZ or with INTZ + BDEZ.
JBEB MV MA - Main spare parts
Construction
- Box made of galvanized Z275 steel sheet.
- Connection tappings with class D sealing joints.
- INTZ: padlockable proximity switch with mounted/wired position feedback.
- BDEZ: pressure switch mounted, not air-connected.
Fan
- Single inlet fan with direct motor action, sealed bearings greased for life.
Engine:
- 3-speed AC motor, single-phase 230V, 50Hz, out of air flow, IP10, class F.
- PTO thermal protection to be connected for use in air intake in tertiary premises.
C4 fan selection - 400°C 1/2H

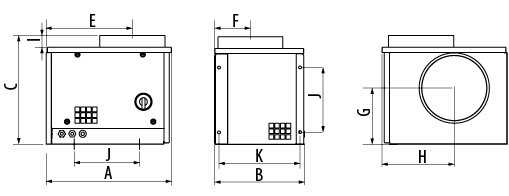

JBEB MV vertical discharge

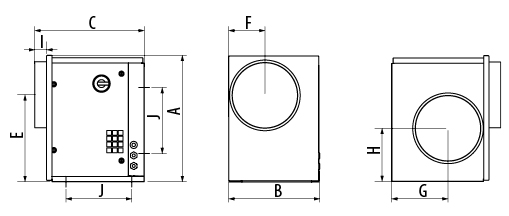

JBEB MV horizontal discharge
JBEB MV horizontal discharge
| Model | A | B | C | ØD | E | F | G | H | I | J | K |
| JBEB MV 05 | 480 | 347 | 416 | 200 | 330 | 138 | 215 | 276 | 45 | 250 | 313 |
| JBEB MV 08 | 480 | 347 | 416 | 250 | 348 | 113 | 230 | 276 | 45 | 250 | 313 |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Fire / Smoke extraction certificates
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Technical Notice (ATEC)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
