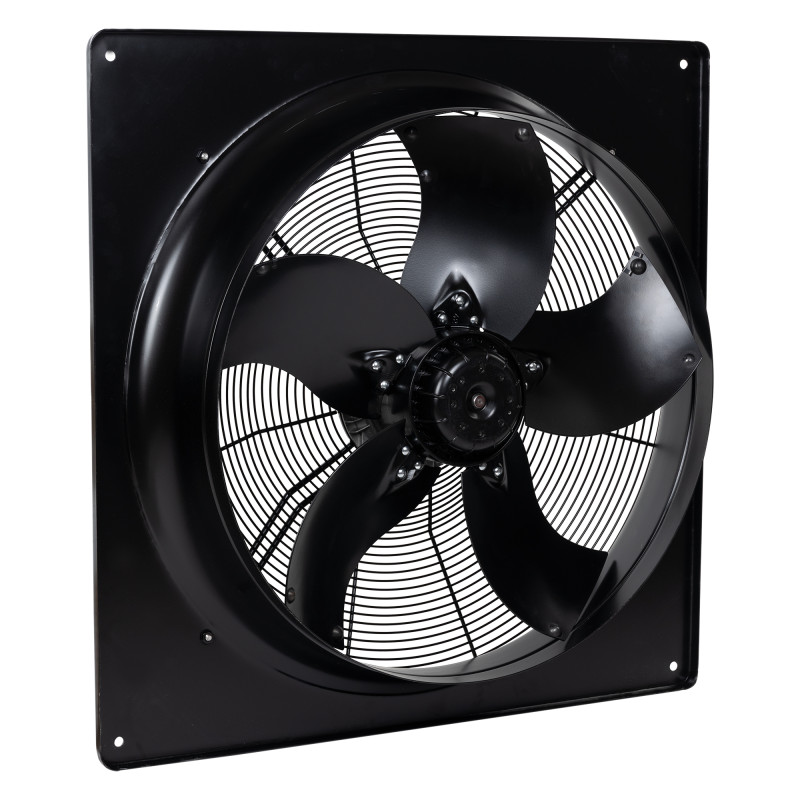

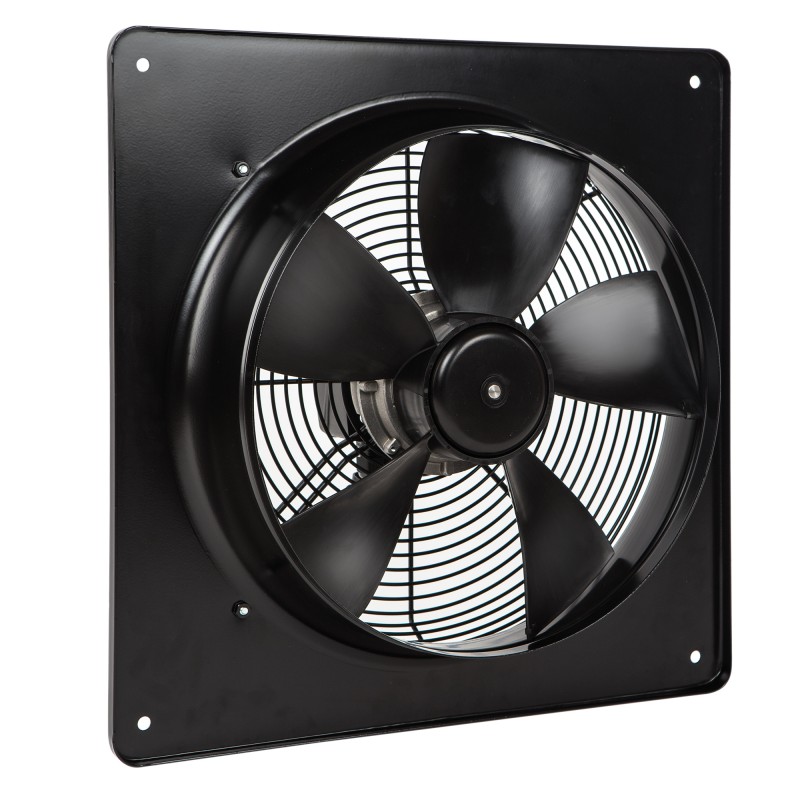

HXBR ECOWATT - HXTR ECOWATT
Axial fans
Wall mounting - ECM < 13,000 m3/h
View larger
HXBR ECOWATT - HXTR ECOWATT
New product
 | ErP 2015 compliant Fan | |
 |  | |
- Low-consumption single ECM motor
- Compact product
- Low noise level
Application
Air extraction and introduction.
Airflow temperature from -20°C up to +50ºC.
Horizontal or vertical installation.
Order online Description
Dimensions
Documentation
Public Price
Software
References
Flow rates from 400 to 13,000 m3/h.
10 diameters: 200 / 250 / 300 / 315 / 355 / 400 / 450 / 500 / 560 / 630.
HXBR ECOWATT: single-phase motor version.
HXTR ECOWATT: three-phase motor version.
Construction
Motorization
Communication
10 diameters: 200 / 250 / 300 / 315 / 355 / 400 / 450 / 500 / 560 / 630.
HXBR ECOWATT: single-phase motor version.
HXTR ECOWATT: three-phase motor version.
Construction
- Square plate made of galvanized steel sheet stamped in one piece.
- Sizes 200 to 450: high efficiency, low noise glass fibre reinforced polyamide propeller.
- Sizes 500 to 630: high efficiency sickle aluminum propeller with reduced noise signature.
- Dynamically balanced propeller/rotor assembly following ISO 1940.
- Air direction A: engine > propeller.
- Engine support made of electro-welded steel wires equipped as standard with a protective grille.
- The whole is protected from corrosion by cataphoresis and black polyester paint. Suitable for corrosion class environments C3.
- Stainless steel screws.
Motorization
- ECM Engine with Controller:
- Mono 230V ±10% 50/60Hz. IP44 motors in sizes 200-450, IP54 above.
- Tri 400V ±10% 50/60Hz IP54.
- Thermal protection integrated into the controller.
- IP65 terminal box sizes 200 to 450, IP 54 beyond.
- Ball bearings
Communication
ModBus RTU in RS485 port and alarm relay from size 500
Technical fans selection

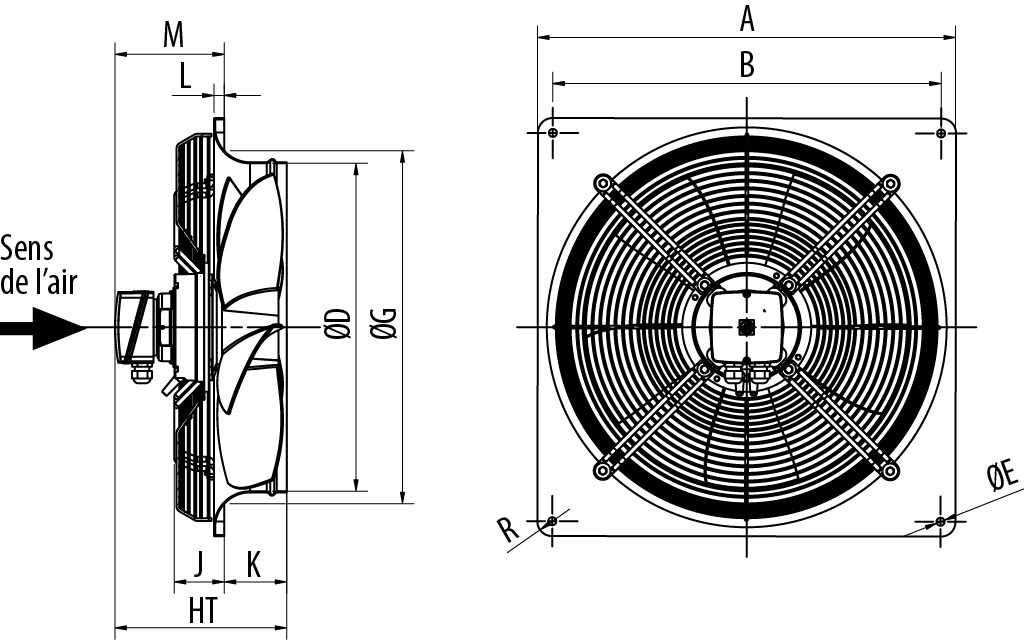

Cut | A | B | D | E | G | HT | J | K | L | M | R |
200 | 312 | 260 | 200 | 7 | 210 | 190 | 70 | 46 | 6 | 138 | 20 |
250 | 370 | 320 | 254 | 7 | 264 | 190 | 70 | 48 | 6 | 136 | 20 |
300 | 430 | 380 | 305 | 9 | 324 | 190 | 55 | 71 | 11 | 108 | 20 |
315 | 430 | 380 | 317 | 9 | 330 | 190 | 55 | 71 | 11 | 108 | 20 |
355 | 485 | 435 | 358 | 9 | 378 | 190 | 56 | 74 | 12 | 104 | 20 |
400 | 540 | 490 | 403 | 9 | 426 | 232 | 62 | 88 | 12 | 132 | 20 |
450 | 576 | 535 | 452 | 11 | 487 | 237 | 69 | 86 | 14 | 137 | 20 |
500 | 655 | 615 | 504 | 11 | 540 | 197.5 | 88 | 104 | 16 | 93.5 | 20 |
560 | 725 | 675 | 559 | 11 | 596 | 194.5 | 85 | 104 | 16 | 90.5 | 20 |
630 | 805 | 750 | 635 | 11 | 673 | 212.5 | 77 | 130 | 20 | 82.5 | 20 |
