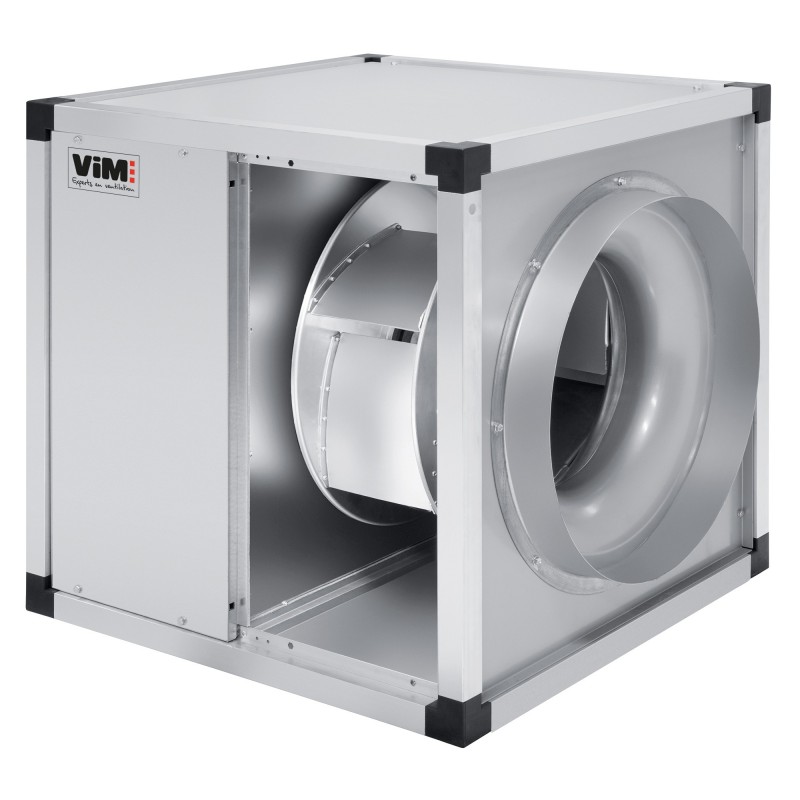

KABT
Extraction boxes
Waterproof - Reaction - AC < 11,000 m3/h
View larger
KABT
New product
 |
ErP - UVNR compliant | |
 |
 |
 |
- Waterproof construction, condensate collection tray, drain
- Centrifugal reaction turbine
- Double skin
- Engine outside the airflow
- Airflow temperature up to 100°C continuously
Applications:
Indoor or outdoor installation with roof.
Extraction of stale air, particularly in kitchens (not F400 approved).
CAD / BIM
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
KABT: 5 sizes, flow rate from 500 to 11,000 m3/h, three-phase motor, modulation possible by frequency variator.
Pressure from 50 to 600 Pa.
Construction
Motorization
Pressure from 50 to 600 Pa.
Construction

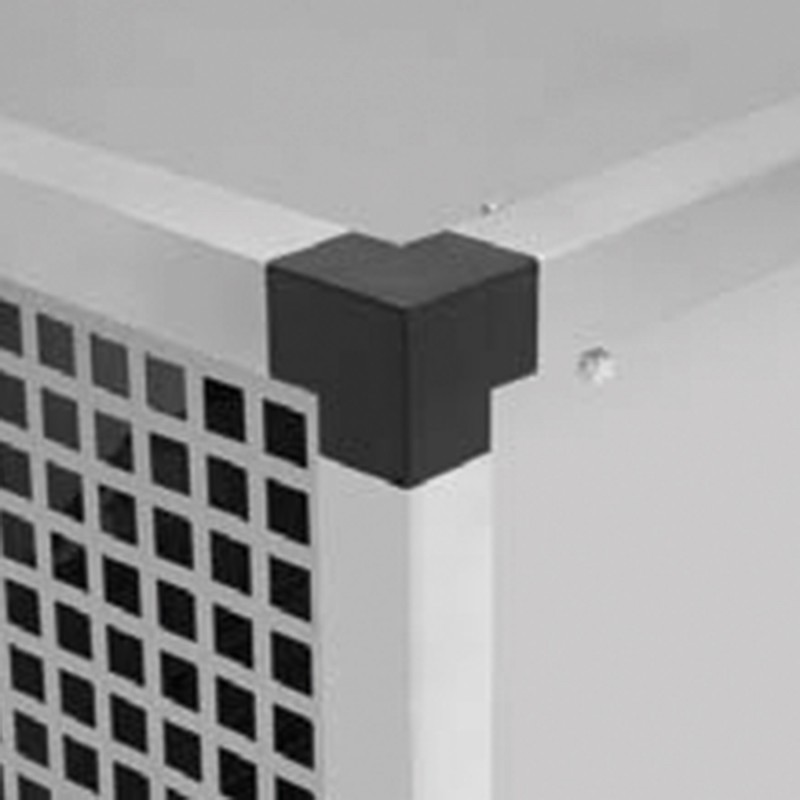

- Aluminum profile structure with foam seal ensuring sealing with the panels.
- Double-skin panels made of galvanized steel sheet, insulated with 17 mm thick glass wool (M0).
- Bottom of the watertight box forming a recovery tank with drain for condensate and cleaning water.
- Circular connection tapping to the suction.
- Rectangular connection with left discharge in the air direction as standard, modifiable on site (right or top outlet).

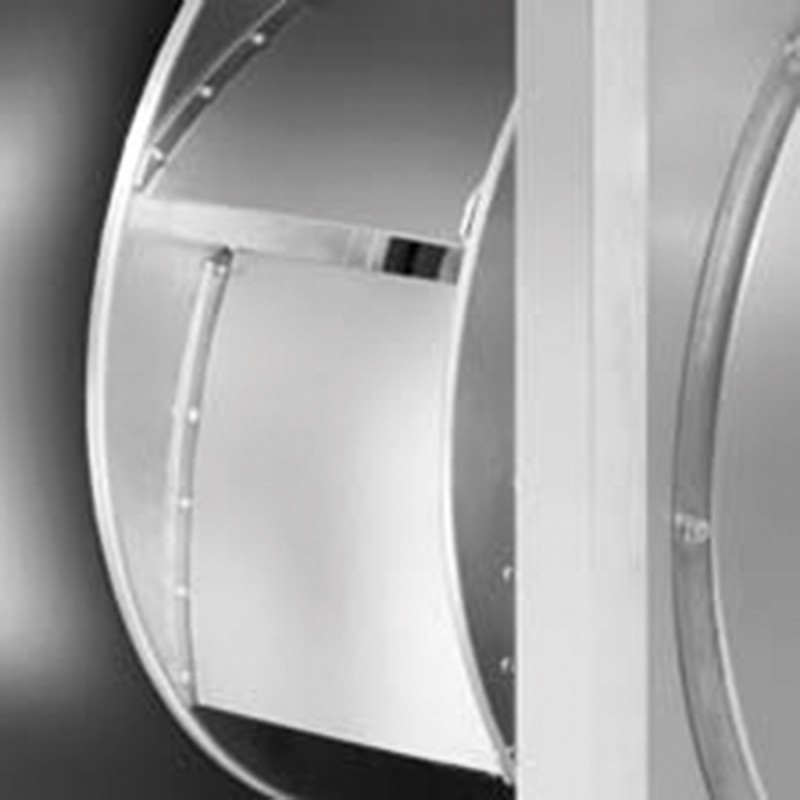

- Dynamically balanced, aluminium reaction centrifugal turbine.
Motorization
- AC motor outside the air flow allowing air extraction up to 100°C continuously for an ambient temperature below +40°C.
- From model KABT/4-3000/315 to KABT/4-9000/500: 4-pole three-phase motors 230/400V 50Hz, IP55, class F, equipped with thermal protection, speed adjustable by frequency inverter.
- KABT/4-12000/560: 4-pole 400V 50Hz three-phase motor, IP55, class F, equipped with thermal protection, speed adjustable by frequency inverter.
|
Model |
A |
B |
C |
ØD |
F |
H |
J |
K |
N |
O |
Weight (kg) |
|
KABT/4-3000/315 |
505 |
547 |
445 |
315 |
305 |
253 |
226 |
244 |
9 |
142 |
33 |
|
KABT/4-4000/355 |
550 |
592 |
490 |
355 |
350 |
275 |
248 |
266 |
9 |
153 |
40 |
|
KABT/4-6000/450 |
630 |
675 |
570 |
450 |
430 |
315 |
269 |
287 |
9 |
163 |
58 |
|
KABT/4-9000/500 |
710 |
753 |
630 |
500 |
510 |
355 |
293 |
315 |
11 |
182 |
75 |
|
KABT/4-12000/560 |
800 |
844 |
720 |
560 |
600 |
400 |
344 |
366 |
11 |
207 |
120 |
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
EASYVENT
Access the software online
| ALL APPLICATIONS |
|||
 |
Selection of fans and AHU |
|
