OUVRAGE

Facade openings

Insulated panel

View larger

OUVRAGE

Facade openings

Insulated panel

Neat aesthetics, standard RAL 9006
Good air and water tightness
Thermal insulation as standard
Same pre-frame as AVANTAGE / KAMOUFLAGE shutters
Hinges cannot be removed from the outside
Reduced depth
RAL colors on request

Application
Remote-controlled Safety Activated Device (SAD) for mounting on the building's external vertical facade:

- Intended for fresh air supply in low-level ventilation (VB) in ERP, collective housing (premises, stairwells and circulation) and IGH.
- Complies with NFS 61937-8 (300 cycles).
- Closed in standby position and open in case of fire.

Not for use in ventilation and heat/smoke evacuation (VH).

Collective residential buildings

Tertiary buildings

Description
Dimensions
Documentation
Public Price
Software
References

Thermal insulation version as standard.
Dimensions WxH: 350x385 to 1100x1105 mm.
Free area up to 107.4 dm².
Electromagnetic triggering by 24Vdc or 48Vdc emission or break coil.
Factory-fitted single-pole (FDCU) or double-pole (FDCB) start/end of travel contacts.
Manual reset by handle.
The interior trim grilles: GDOF, GDOA, GDOC provide a consistent aesthetic with the trim grilles of the shutters in the AVANTAGE range.

Construction

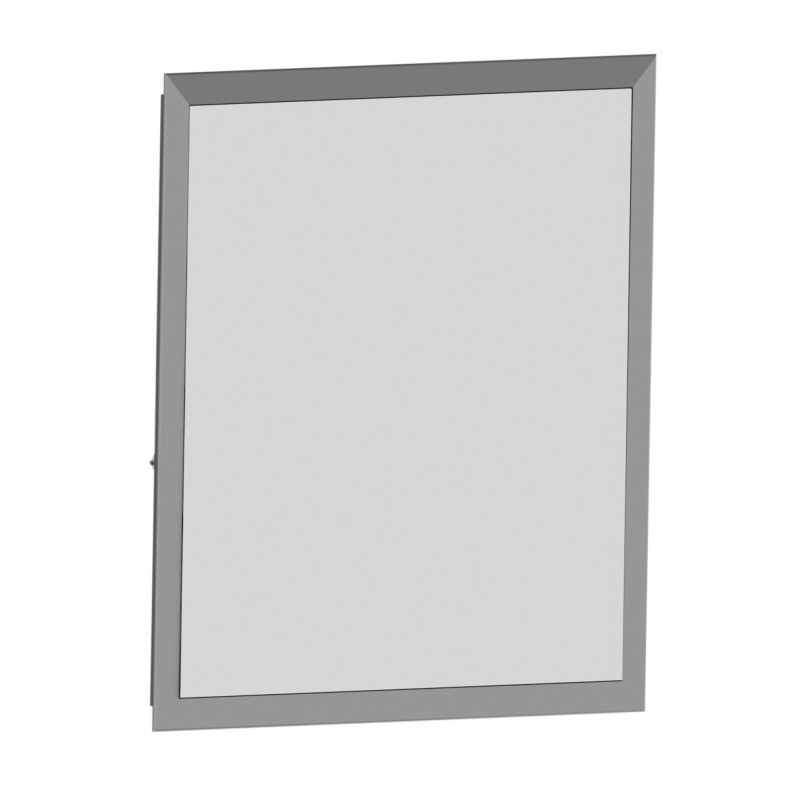

Frame made of RAL 9006 colored aluminum profile.
XPS (extruded polystyrene) filling panel, 18 mm thick, held between 2 sheets of 1 mm thick aluminium.
Panel opening: “outside hinge” with the hinges facing upwards.
Panel articulation made by two steel hinges invisible from the outside.

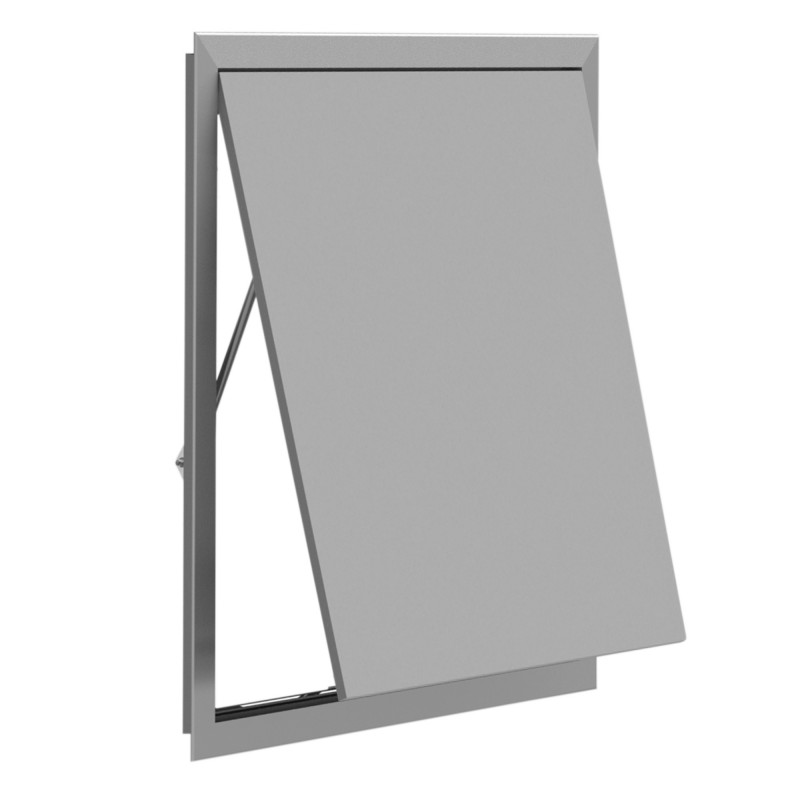

Facade opening with insulated panel held in waiting position by electromagnetic coil.

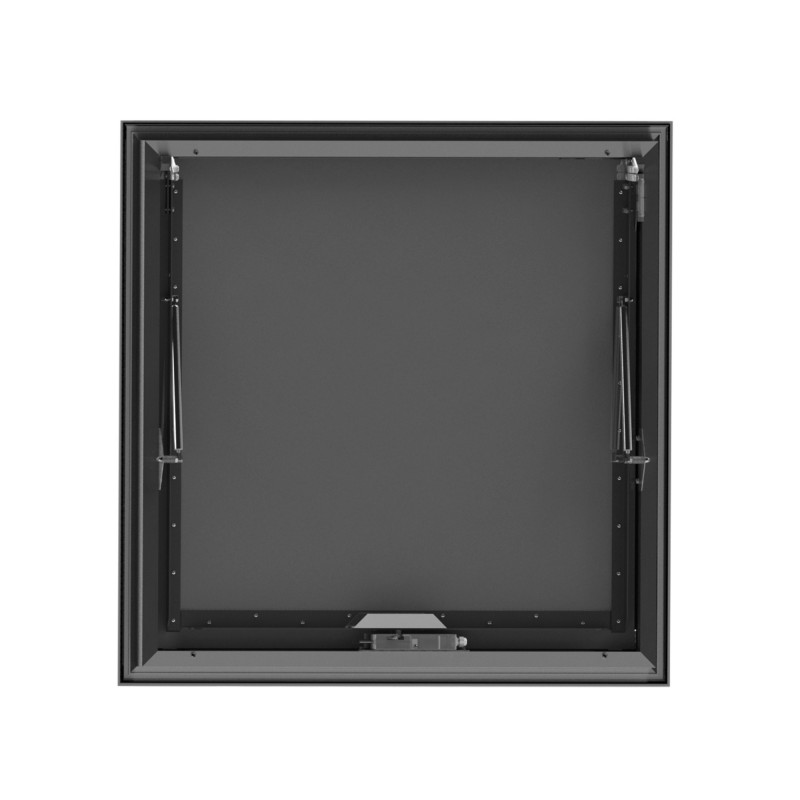

Opening by oleopneumatic spring of the leaf and maintenance of the safety position.
The leaf opens to an angle of approximately 60°.
Manual reset by handle.
Single-pole (FDCU) or double-pole (FDCB) start and end position contact.
Specific RAL shades available on request.

Facility

Lower part assembly (VB).
Use of pre-frame highly recommended.
Installation opening of the horizontal panel only.

The openings coded in the TARIFF are without option

The order must be accompanied by:
- From a 24 or 48V trigger coil with emission or break: choice of VD24 or VM24 or VD48 or VM48.
- Unipolar or bipolar end and start of travel position contact: FDCU or FDCB option.

GDOF, GDOA, GDOC dressing grid

Dimensions WxH: 350x385 to 1100x1105 mm.
Free surface greater than 90%.
GDOF : Fixed core grid – welded to the frame.
GDOA : Removable core grid – spring system (for dimensions h>625mm -> GDOC).
GDOC : Removable core grid - spring system with square firefighter safety beater locking.
Painted finish in RAL color: contact us.
Frame with rounded shapes and natural-colored anodized aluminum fin.
Fixing the grid frame directly on the masonry wall using 4 screws (Ø3.5 mm) not supplied. The fixing holes are located on the inner fold return.
45° inclined domed profile fins - crimped onto aluminium tubes at the rear of the grille.
Same design as the GFAV-GAAV-GPAV dressing grilles

Vertical section

Vertical section with GDOF, GDOA, GDOC type dressing grid

Horizontal section

Overall dimensions
Overall length	Overall height
L_ht = L + 84	H_ht = H + 84

Opening the panel

Height (mm)	Travel d (mm)
385	306
415	332
445	358
475	384
505	410
535	436
565	462
595	488
625	514
655	540
685	566
715	592
745	618
775	644
805	670
835	696
865	722
895	748
925	774
955	800
985	826
1015	852
1045	878
1075	904
1105	930
