AVANTAGE H - KAMOUFLAGE H

Gate shutters

Special Collective Housing - 1 or 2 leaves - Trump versions: aluminum or RAL 9010

ADVANTAGE H 1V View larger

AVANTAGE H - KAMOUFLAGE H

Gate shutters


Special Collective Housing - 1 or 2 leaves - Trump versions: aluminum or RAL 9010

CE.jpg Logiciel.jpg

  • Easy installation
  • Installation with ceiling height 2.30 m
  • Reinforced sealing
  • Low pressure drop (KAMOUFLAGE)
  • Free area 20dm²
  • Integrated line control
  • Reversible (hinges on the right or on the left)


Application

Intended for mechanical or natural smoke extraction in collective housing of 3th family B or 4th family of traffic or entry SAS.
Remote-controlled shutters intended for the introduction of fresh air (installation in the lower part) or for the extraction of fumes (installation in the upper part).
Use inside buildings.
Solution for ground floor without false ceiling or with a reduced false ceiling (KAMOUFLAGE H 1V P, KAMOUFLAGE H ATOUT 1V P).

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

ADVANTAGE H:
  • Smoke evacuation damper with remote control gate with covering grille.
    • 1 leaf: EI60S, dimension (LxH) 380x630 mm.
    • 2 leaves: EI60S, dimension (LxH) 480x535 or 540x475 mm.
    • Free passage of 20 dm².

KAMOUFLAGE H and KAMOUFLAGE H Asset:
  • Aesthetic smoke evacuation dampers with a remote control gate without a covering grille.
    • 1 leaf: EI60S, dimension (LxH) 380x595 or 380x630 mm.
    • 2 leaves: EI60S, dimension (LxH) 480x535 or 540x475 mm.
    • ATOUT version available in RAL 9010 and anodized aluminum finish.
    • Free passage of 20 dm².

KAMOUFLAGE H 1V P and KAMOUFLAGE H ATOUT 1V P:
  • Aesthetic smoke evacuation dampers with remote control door for ceiling mounting.
    • 1 leaf: EI60S, dimension (LxH) 430x530 mm.
    • ATOUT version available in RAL 9010.
    • Free passage of 20 dm².


Description

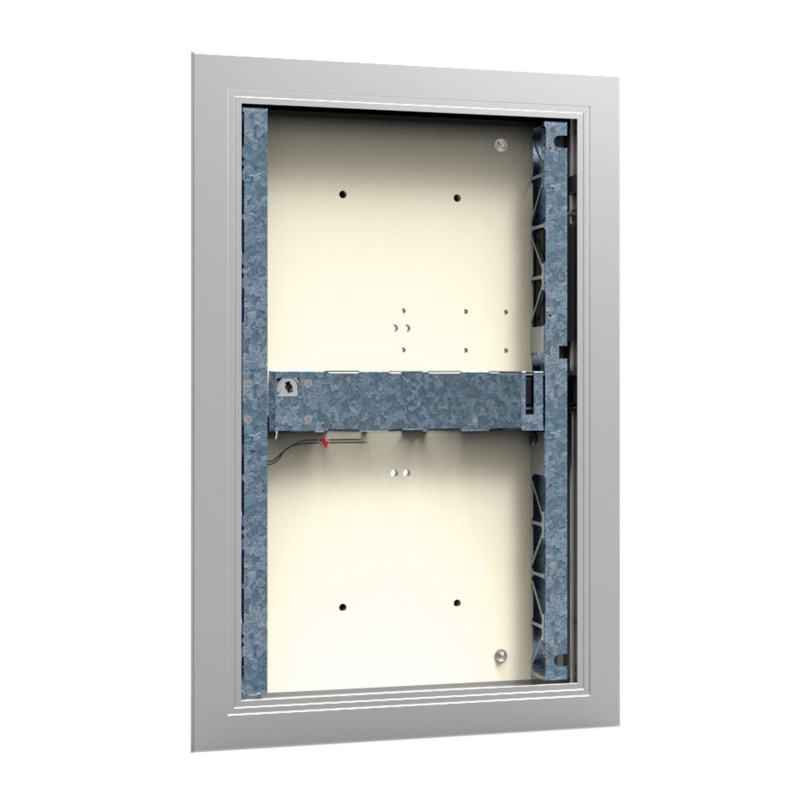

  • 1 leaf or 2 leaves in refractory material pivoting on hinges.
  • 2-leaf version more particularly suitable for shallow-depth shafts and low ceiling heights.
  • Self-locking anti-return.
  • Integrated line control (end of line module and intermediate shutter connection module).

ADVANTAGE H

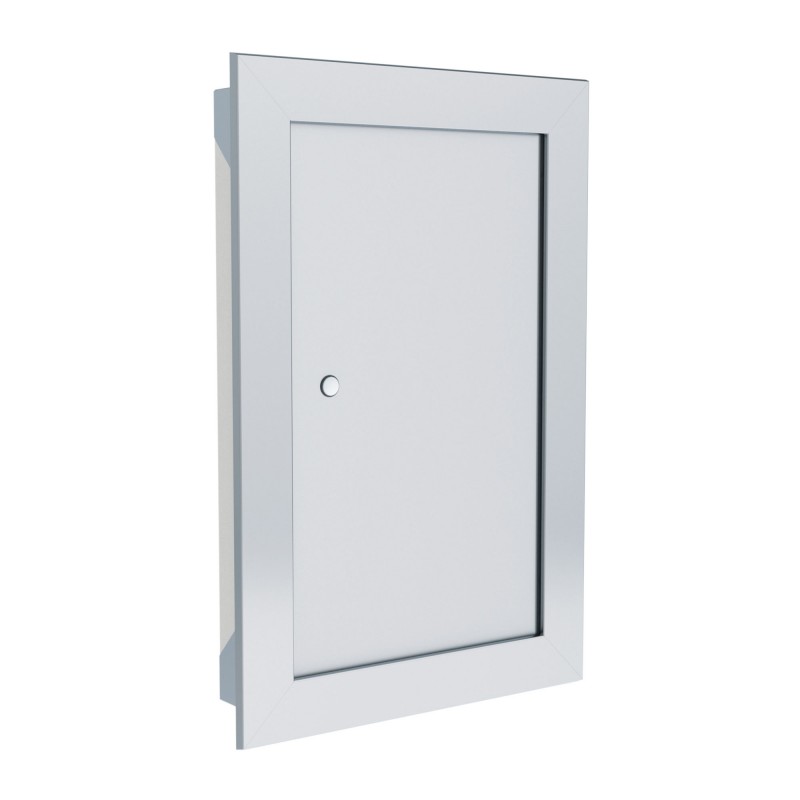

  • Raw aluminum frame.
  • Provide an aesthetic aluminum finishing grille of the GFAV, GAAV, GBAV, GPAV, GCAV type.

KAMOUFLAGE H
  • Anodized aluminum frame.
  • Shutters to paint, wallpaper or dress for perfect integration into the interior decoration of the building.

KAMOUFLAGE H Asset

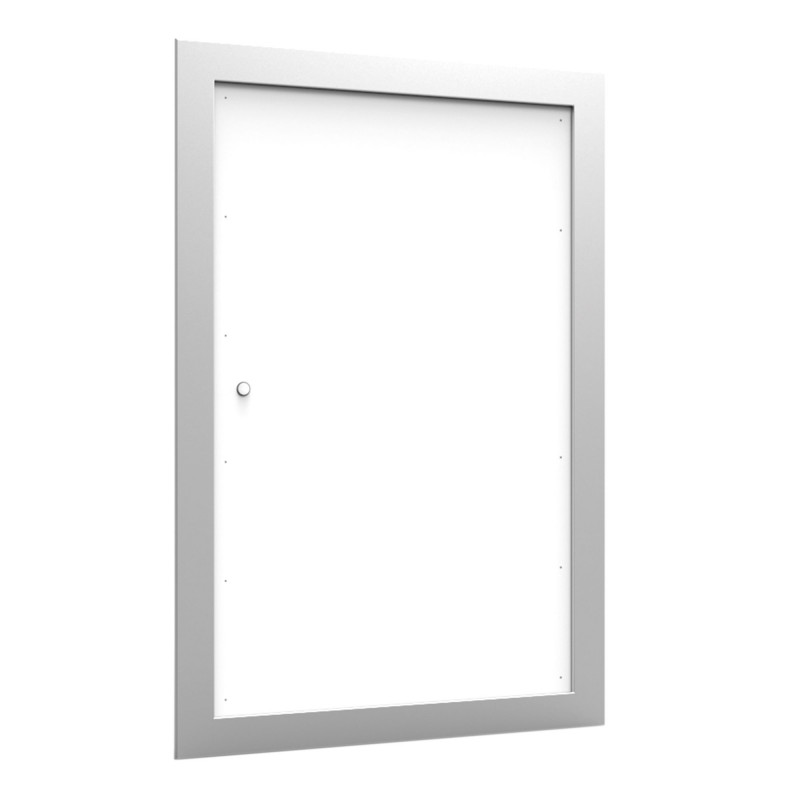

  • Aluminum frame delivered with protective film:

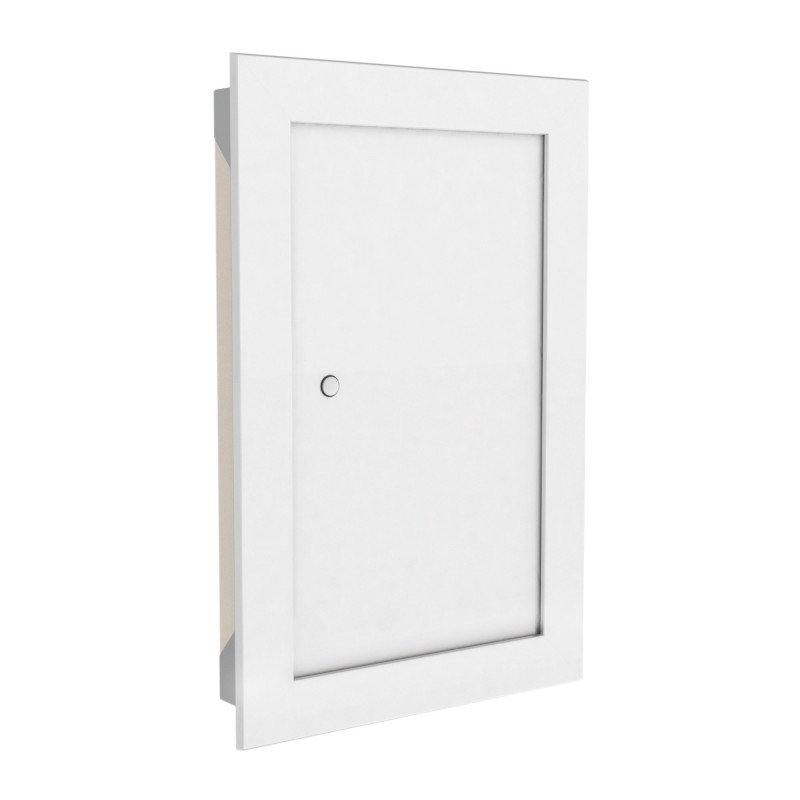

    • RAL 9010 white finish.
    • Anodized aluminum finish.
  • Gate covered with a metal panel delivered with protective film:
    • RAL 9010 white finish.
    • Anodized aluminum finish.

KAMOUFLAGE H 1V P or KAMOUFLAGE H ATOUT 1V P
  • Gate flush with the frame, possibility of painting or upholstering (KAMOUFLAGE H 1V P).
  • Wicket door covered with white RAL 9010 finish metal panel supplied with protective film (KAMOUFLAGE H ATOUT 1V P).
  • The habitat components codified in the TARIFF are optional.

  • The order must be accompanied by a 24V shunt trip coil.
  • If end and start of travel signaling contacts (unipolar or bipolar) are required, refer to the ranges of smoke control dampers for the tertiary sector.
ADVANTAGE H

1- Refractory material (eg silico-limestone plate)
2 - KAP pre-framework (option)
3 - Sealing (ex. Plaster) if pre-framed

KAMOUFLAGE H
1- Refractory material (eg silico-limestone plate)
2 - KAP pre-framework (option)
3 - Sealing (ex. Plaster) if pre-framed
4 - KGC anti-fall (option on the frame)
