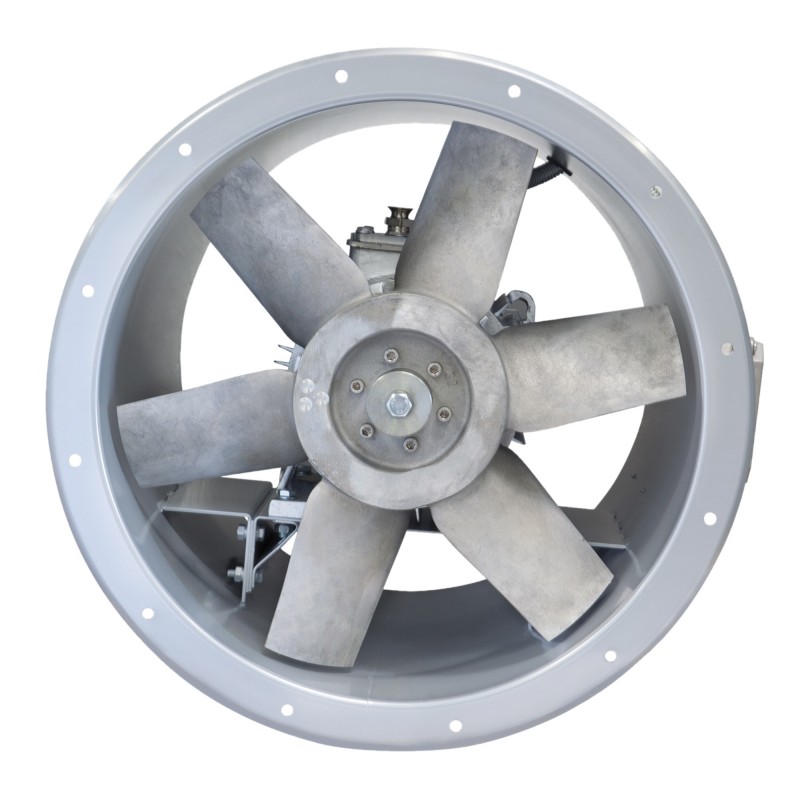

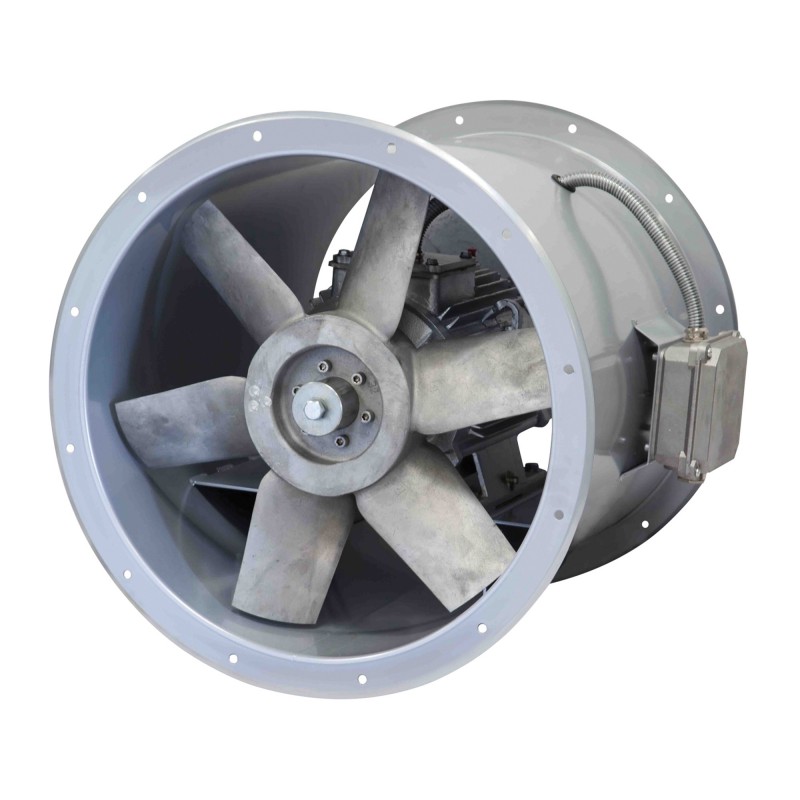

THGT F400 3000 rpm
Axial fans F400 or F200
Tubular 3000 rpm - AC < 34,000 m3/h
View larger
THGT F400 3000 rpm
New product
 | ErP 2015 compliant Fan | |
 |  |  |
- High speed suitable for high pressures
- Approved 2-pole and 2/4-pole range
- F400 120 certified fan in a 400°C environment, gas and fan.
Application
Extraction of fumes and hot gases in the event of fire.
Extraction of clean or low-dust air in tertiary and industrial premises.
Air extraction and smoke extraction from covered parking lots.
Horizontal or vertical mounting.
Airflow temperature between -20 and 50°C in comfort ventilation.
CAD / BIM
Order online Description
Dimensions
Documentation
Public Price
Software
References
- Approved smoke extraction model F400 120.
- Long ferrule and terminal box.
- 5 sizes: Ø 400 / 450 / 500 / 560 / 630 mm.
- Flow rates from 2,500 to 34,000 m3/h.
Construction
- Construction in embossed steel sheet treated with hot-dip galvanization according to EN 1461.
- Ferrule adapted to the corrosion class C4 environments.
- High efficiency single-piece fixed pitch aluminium propeller, dynamically balanced to ISO 14694: G6.3.
- External terminal box.
Motorization
- IP 55 class H three-phase asynchronous motor directly coupled to the propeller, without thermal protection, Services S1 and S2. 1-speed motors
- Possible control by frequency variation.
- 1 speed three-phase, 2 poles, 230/400 V 50 Hz up to 3 kW.
- 1 speed three-phase, 2 poles, 400 V 50 Hz above 3 kW.
- 2-speed three-phase, 2/4 poles, 400 V 50 Hz, Dahlander winding (1 cable gland for 7-wire cable).
Model | A | B | C | D | E | F | n |
400 | 558 | 380 | 536 | 400 | 450 | 12 | 8 |
450 | 613 | 480 | 606 | 450 | 500 | 12 | 8 |
500 | 662 | 480 | 656 | 500 | 560 | 12 | 12 |
560 | 726 | 600 | 716 | 560 | 620 | 12 | 12 |
630 (7.5kW) | 795 | 600 | 786 | 630 | 690 | 12 | 12 |
630 | 815 | 700 | 786 | 630 | 690 | 12 | 12 |
