TV - TVR - MTV
New product
Application
TV - TVR
- Inspection hatches for the maintenance of circular and rectangular ducts.
Recommendation of DTU 68.3, installation to be carried out in accordance with standard NF EN 12097.
MTV - Inspection hatch sleeve for maintenance of circular conduits.
Recommendation of DTU 68.3, installation to be carried out in accordance with standard NF EN 12097.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

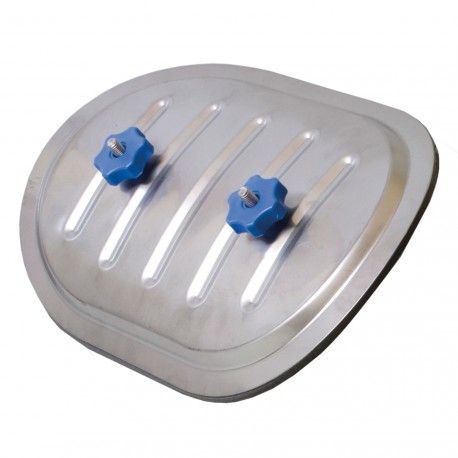

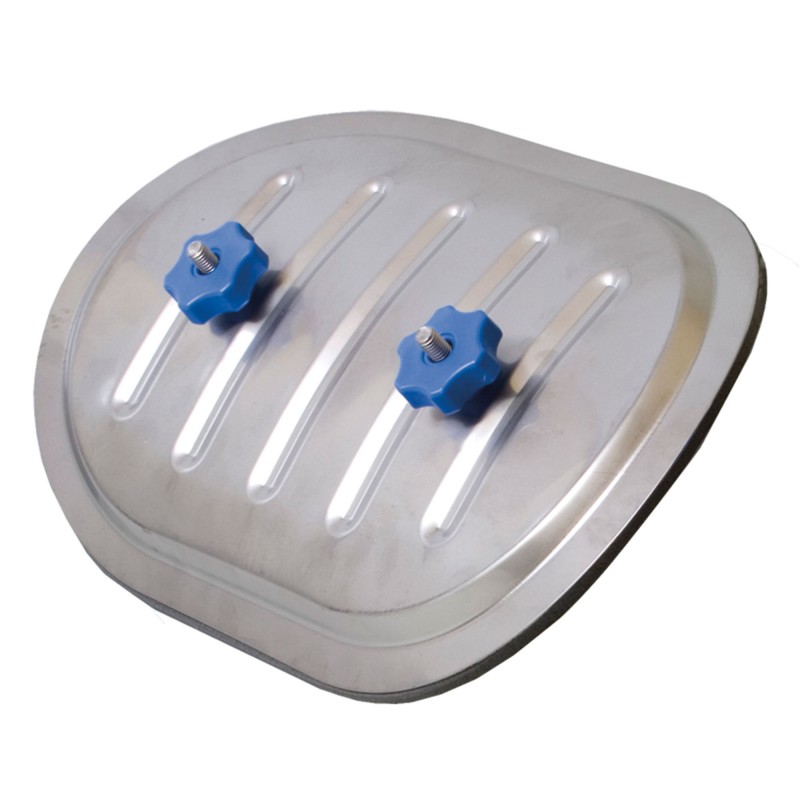

TV: Curved inspection hatches for circular conduits with a diameter of 100 to 800 mm.

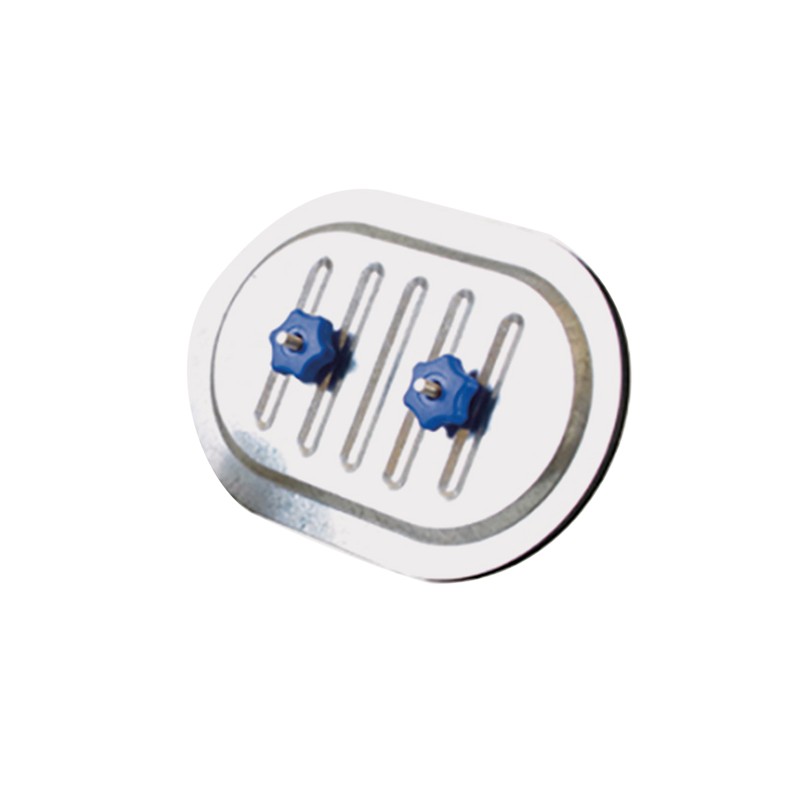

TVR: Flat inspection hatches for rectangular conduits.
MTV: Diameter 100 to 450 mm.
Length 500 mm.
TVR: Flat inspection hatches for rectangular conduits.
- Internal and external panel in Z275 galvanized steel.
- Internal panel equipped with a flat seal.
- High quality PUR sealing gasket, temperature resistance -40°C/ +90°C.
- 2 ABS star handles with M8 or M10 metal insert with compression springs.
- Self-adhesive cutting template supplied with each inspection hatch.
- Waterproofing class C.

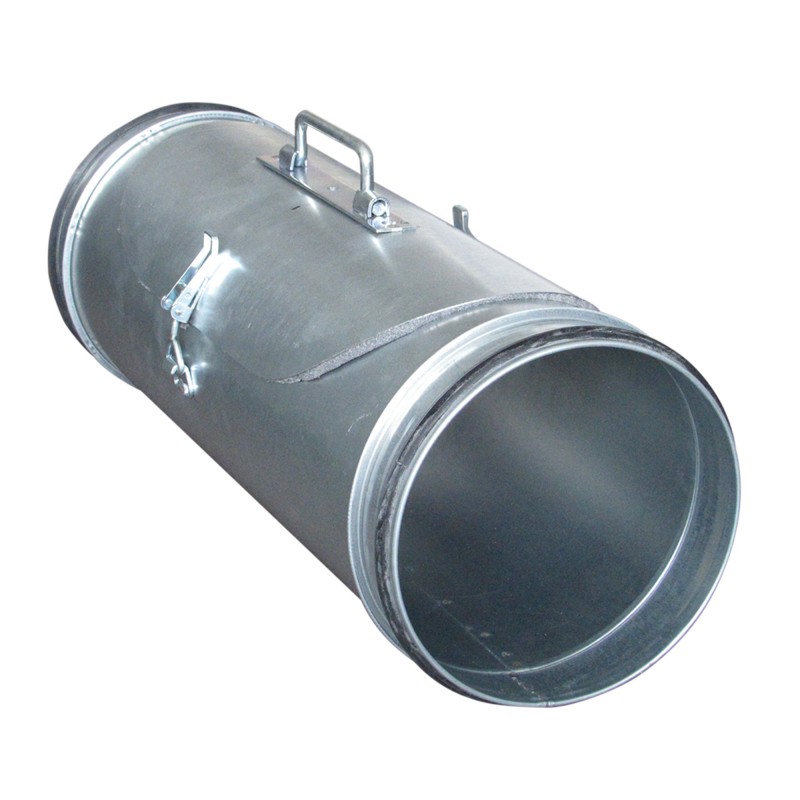

MTV: Diameter 100 to 450 mm.
Length 500 mm.
- Galvanized steel Z275.
- EPDM seal between the hatch and the body.
- Latch for opening/closing the inspection hatch.
- Male connection with sealing gasket.
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
THE ROSTER - ANNECY
Independent commercial catering
74 - Haute-Savoie
Année : 2021
Maître d'ouvrage : SARL THE ROSTER
Installateur : CFM EQUIPEMENTS - CRAN GEVRIER (dep. 74)
Installed products:
