VORAX® 90/10 COMFORT 90/10
Induction hoods
Capture - Inductive curtain 10% - Diffusion
View larger
VORAX® 90/10 COMFORT 90/10
New product
 |
 |
 |
- Improving capture efficiency - CETIAT tests
- Reduction of extracted flow rate by 30 % - CETIAT tests
- Improved comfort through low-speed diffusion
- Rigid and hygienic design
- Exposed faces in AISI 304L stainless steel with brushed SB finish
- Hood with vertical sides at constant height 400 or 500 mm
- Cheeks without visible marks
Application
Capture and filtration of pollutants and heat.
Low-speed air diffusion through the front for the COMFORT 90/10 version.
Improved capture efficiency by inductive curtain.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
2 versions
Depth advances 1250, 1500 and 1750 mm. Height: 500 and 400 mm.
Dimensions and finishes identical to the models: CHEF, FOUR, LAUNDRY and INDUCT from the VORAX Range®.
Hood

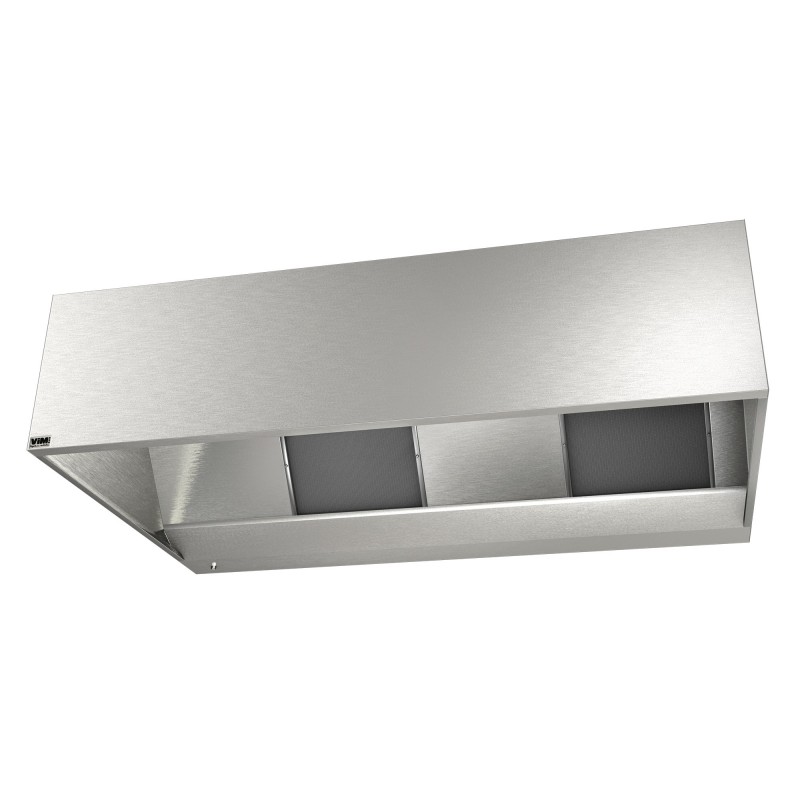

- VORAX® 90/10: induction only.

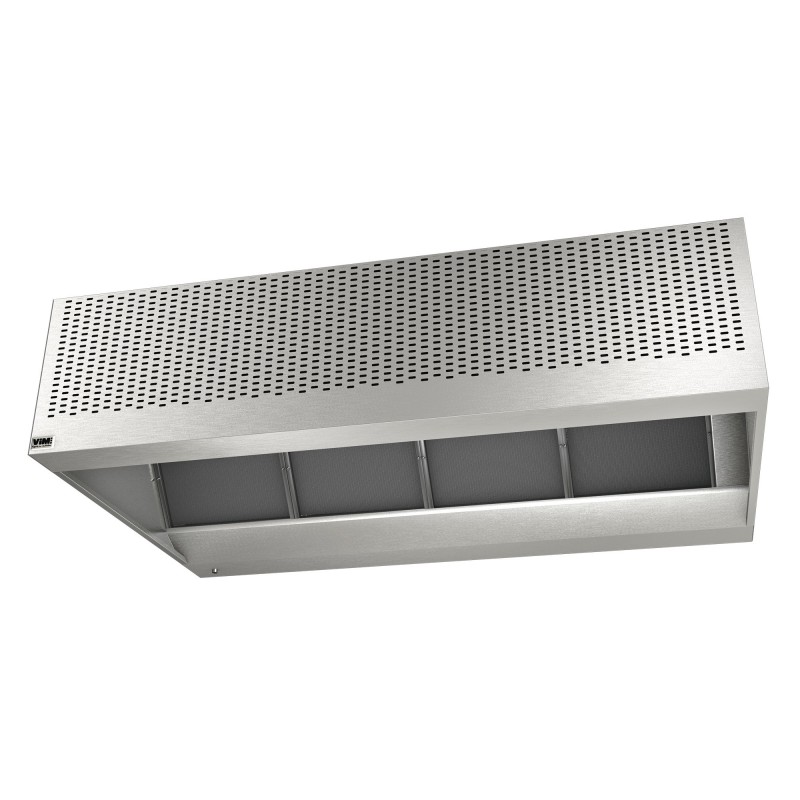

- VORAX® COMFORT 90/10: induction + low speed compensation on the front.
- Central hoods made by assembling back to back 2 hoods attached with partitions.
Depth advances 1250, 1500 and 1750 mm. Height: 500 and 400 mm.
Dimensions and finishes identical to the models: CHEF, FOUR, LAUNDRY and INDUCT from the VORAX Range®.
Hood
- Internal face equipped with a calibrated lip generating the inductive air curtain.
- VORAX® 90/10: full front face.
- VORAX® COMFORT 90/10: perforated front face.
- Isolated pulse chamber.
- Pressure measurement.
- Removable panel providing access to the blowing register as well as periodic cleaning of the pulsation chamber.
- Self-supporting construction with no visible fixings or sharp edges. Side panels with no visible marks such as rivets and studs.
- Lateral reinforcements, in 15/10th galvanized steel, height 50 mm, integrated into the hood, ensuring the rigidity of the assembly.
- Leveling adjustment from inside the hood.
- Gussets at the end of the sensor for a rigid junction between 2 modules while allowing a large air passage.
- Exposed faces in austenitic stainless steel AISI 304L (1.4307) brushed SB finish. Rear and upper faces in galvanized steel.
- Standard galvanized media filters, M0 stainless steel frame 397 x 472 x 25 mm over the entire length.
- Peripheral gutter. Stainless steel purge organ and plug - threaded 1/2” Gas.
- Packed in a clear crate under heat-shrink film.
- Stainless steel exterior faces protected by PVC film.
VORAX® 90/10
VORAX® CONFORT 90/10
Optional lighting - Supplied drilled
Underlined = dimensions of model 400 - Not underlined = model 500
|
Module |
Total length * |
Capture length |
Number of holes |
A |
B |
C |
D |
P Hole dimension |
Advanced |
Advanced |
Advanced |
||||||
|
Extr. |
90/10 |
CONFORT 90/10 |
H400 |
H550 |
F |
G |
F |
G |
F |
G |
|||||||
|
1000 |
1004 |
1000 |
1 |
1 |
1 |
502 |
502 |
968 |
910x285 |
910x385 |
507 |
650 |
632 |
650 |
757 |
650 |
|
|
1500 |
1504 |
1500 |
1 |
1 |
1 |
752 |
752 |
1468 |
1410x285 |
1410x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
|
2000 |
2004 |
2000 |
2 |
1 |
2 |
514 |
976 |
1002 |
1968 |
1910x285 |
1910x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
2500 |
2504 |
2500 |
2 |
1 |
2 |
645.5 |
1213 |
1252 |
2468 |
2410x285 |
2410x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
3000 |
3004 |
3000 |
2 |
1 |
2 |
645.5 |
1713 |
1502 |
2968 |
2910x285 |
2910x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
* Total length of assembled modules: 3504, 4004, 4504, 5004, 5504, 6004
VORAX® CONFORT 90/10
Optional lighting - Supplied drilled
Underlined = dimensions of model 400 - Not underlined = model 500
|
Module |
Total length * |
Capture length |
Number of holes |
A |
B |
C |
D |
P Hole dimension |
Advanced |
Advanced |
Advanced |
||||||
|
Extr. |
90/10 |
CONFORT 90/10 |
H400 |
H500 |
F |
G |
F |
G |
F |
G |
|||||||
|
1000 |
1004 |
1000 |
1 |
1 |
1 |
502 |
502 |
968 |
910x285 |
910x385 |
507 |
650 |
632 |
650 |
757 |
650 |
|
|
1500 |
1504 |
1500 |
1 |
1 |
1 |
752 |
752 |
1468 |
1410x285 |
1410x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
|
2000 |
2004 |
2000 |
2 |
1 |
2 |
514 |
976 |
1002 |
1968 |
1910x285 |
1910x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
2500 |
2504 |
2500 |
2 |
1 |
2 |
645.5 |
1213 |
1252 |
2468 |
2410x285 |
2410x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
|
3000 |
3004 |
3000 |
2 |
1 |
2 |
645.5 |
1713 |
1502 |
2968 |
2910x285 |
2910x385 |
507 |
1260 |
632 |
1260 |
757 |
1260 |
* Total length of assembled modules: 3504, 4004, 4504, 5004, 5504, 6004
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Other files
Other files
Commercial documents
Commercial leaflet (FCOM)
OPTAIR Kitchen
Download OPTAIR Cuisine
For any questions, please send an email to optair@vim.fr
