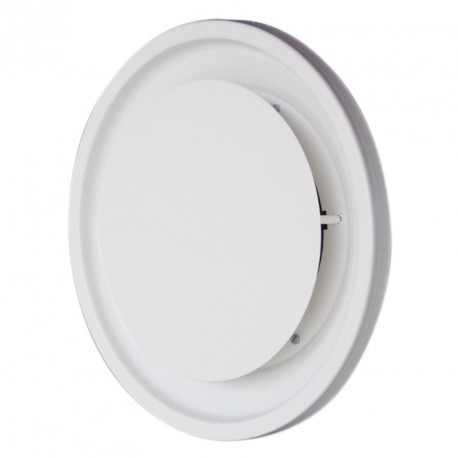

DCDU
Circular diffusers
Adjustable single disc - Projection or slab
View larger
DCDU
New product
- Adapted to variable flow rate
- Blowing or recovery
- Summer/winter adjustment positions
- RAL 9003 matt white finish
Application
Ceiling mounting.
Air conditioning, heating, ventilation.
Stable air diffusion, suitable for installations with variable flow rates.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
DCDU: Single disc circular diffuser, standard, without register.
DCDU R: Single disc circular diffuser, standard, with telescopic register.
DCDU D: single disc circular diffuser, plate model for 600 x 600 slab, without register.
DCDU DR: single disc circular diffuser, plate model for 600 x 600 slab, with telescopic register.
Connection on the diffuser neck in Ø 125, 160, 200, 250, 315 mm.
Description
DCDU R: Single disc circular diffuser, standard, with telescopic register.
DCDU D: single disc circular diffuser, plate model for 600 x 600 slab, without register.
DCDU DR: single disc circular diffuser, plate model for 600 x 600 slab, with telescopic register.
Connection on the diffuser neck in Ø 125, 160, 200, 250, 315 mm.
Description
- Circular diffuser with adjustable deflection disc.
- Removable deflection disc allowing 5 adjustment positions.
- Vertical or horizontal air diffusion (hot/cold).
- Diffuser in steel painted in matt white RAL 9003.
- Connection directly to the diffuser neck.

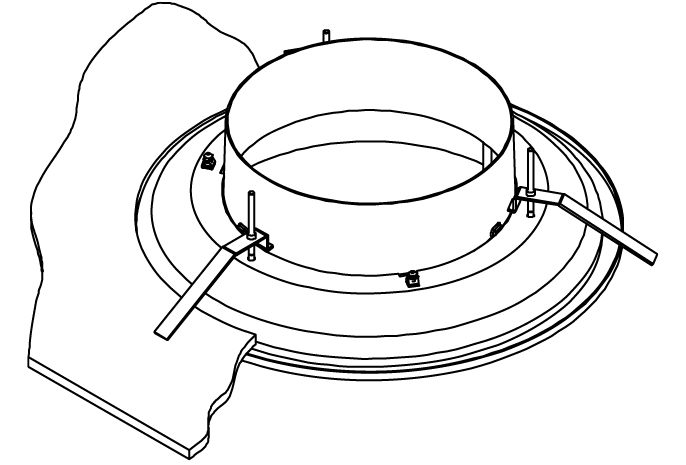

- DCDU And DCDU R : fixing by 3 mounting brackets.
- DCDU R And DCDU DR : model with telescopic register.
- Other RAL: contact us.

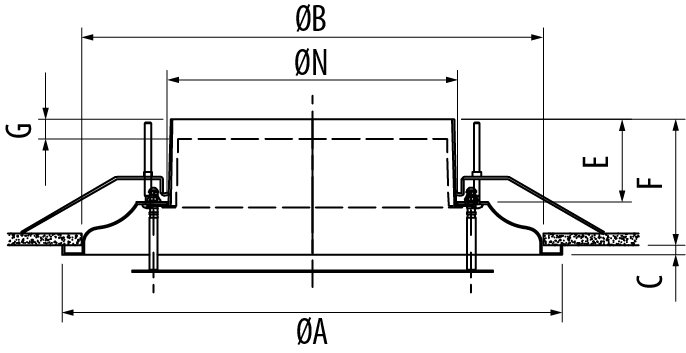

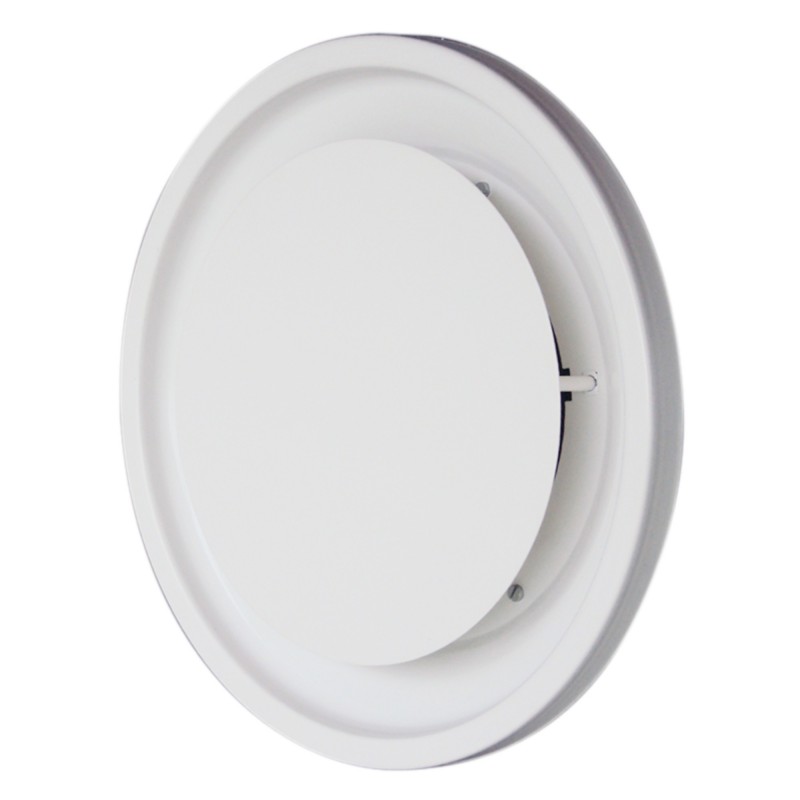

DCDU / DCDU R

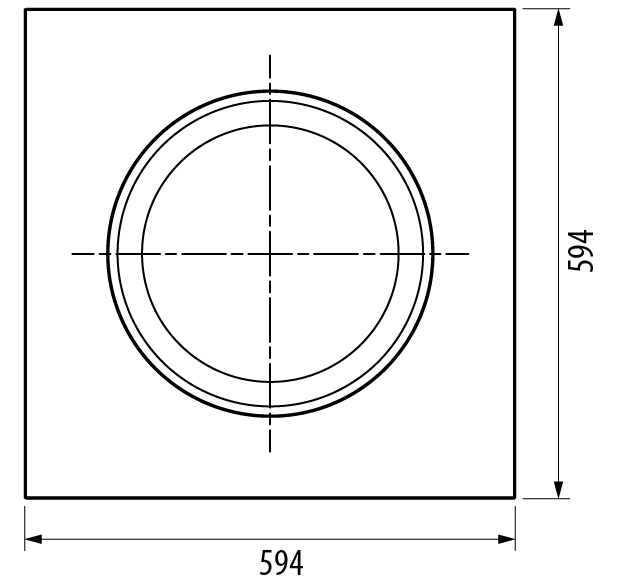

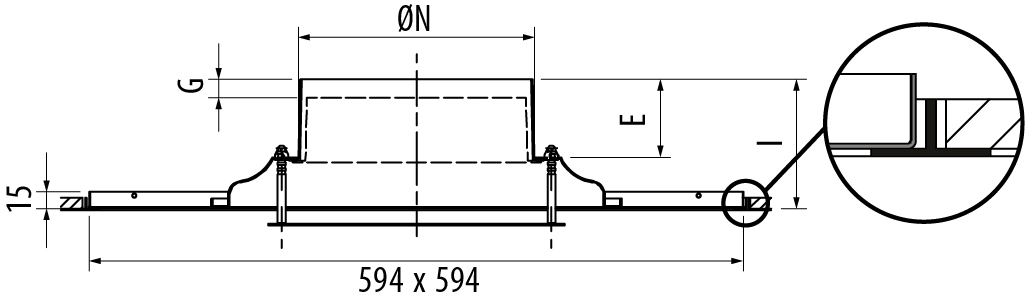

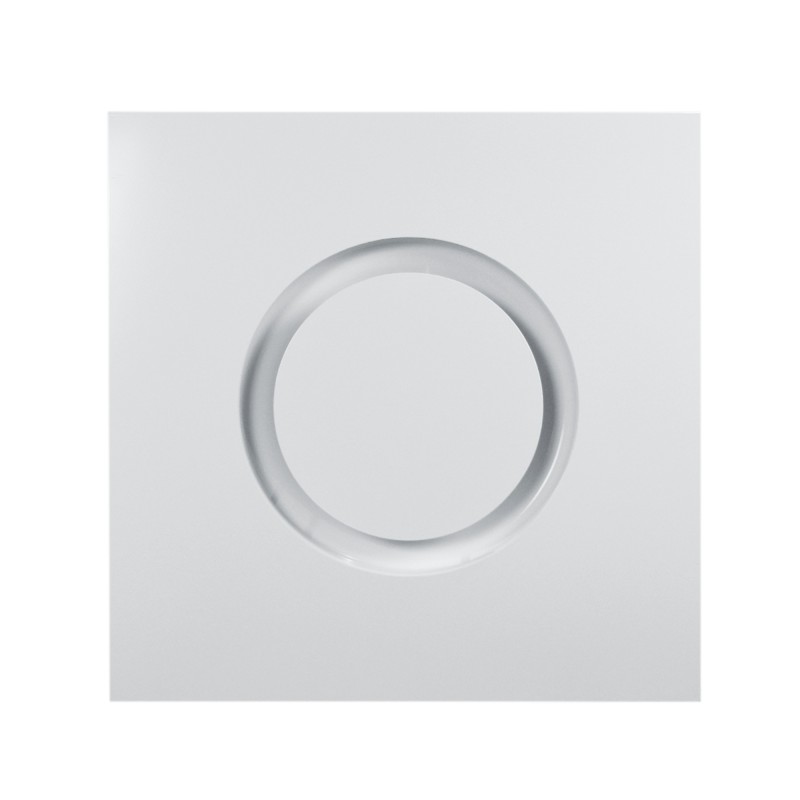

DCDU D / DCDU DR
| ØN | ØA | ØB | C | E | F | G | I |
| 125 | 265 | 243 | 8 | 53 | 69 | 17 | 78 |
| 160 | 310 | 288 | 8 | 73 | 109 | 17 | 118 |
| 200 | 365 | 343 | 8 | 73 | 109 | 17 | 118 |
| 250 | 430 | 408 | 8 | 73 | 109 | 17 | 118 |
| 315 | 515 | 493 | 8 | 73 | 109 | 17 | 118 |
DCDU D / DCDU DR
| ØN | ØA | ØB | C | E | F | G | I |
| 125 | 265 | 243 | 8 | 53 | 69 | 17 | 78 |
| 160 | 310 | 288 | 8 | 73 | 109 | 17 | 118 |
| 200 | 365 | 343 | 8 | 73 | 109 | 17 | 118 |
| 250 | 430 | 408 | 8 | 73 | 109 | 17 | 118 |
| 315 | 515 | 493 | 8 | 73 | 109 | 17 | 118 |
