VAPZ

Voltage variators

Mono controllable electronics IP55

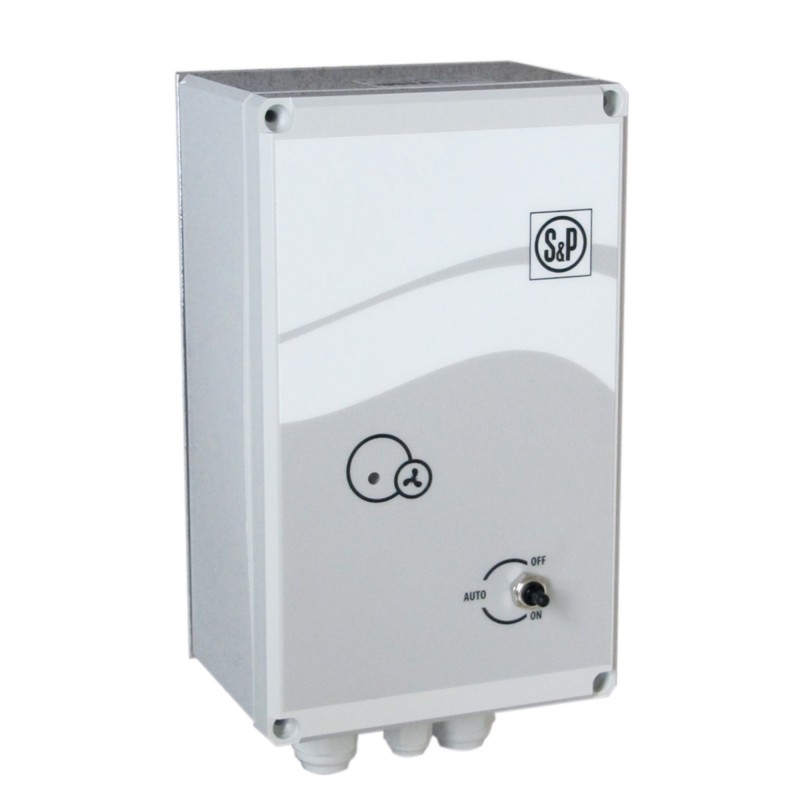

VAPZ-3-5-11 View larger

VAPZ

Voltage variators


Mono controllable electronics IP55

AJUST'AIR

  • Controlled by an external control signal
  • Ventilation on / off switch on the front
  • SELV 24Vdc output
  • Gas solenoid valve control

Applications:

Speed variation by voltage variation of a single-phase 230V 50Hz single-phase asynchronous motor.
Allows the variation of ventilation rates according to the signal of a CO2, VOC, IAQ, hygrometry, temperature, or a presence sensor.

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

3 ratings: 3A, 5A, 11A.

Description
  • 3-position front switch: off, automatic on, forced operation.
  • Engine operating light.
  • Voltage variation range: 110 - 230V (motor output adjustable at installation).
  • Analog input (current or voltage) or all or little (dry contact) adjustable at installation.
  • "Max speed run" input for remote control (by dry contact).
  • SELV 24Vdc output for supplying a sensor.
  • Output for gas solenoid valve control.
  • Factory input / output pre-setting.
  • Protection against overloads and short circuits by integrated fuse.
  • Cable glands supplied assembled.

Selection of electrical accessories
VAPZ


* fixing dimensions

Close Open Detailed specifications

Text catalog pages (CT)

Close Open Public tariff price

Price catalog pages (CP)

Close Open Electrical / ATEX Certificates

Electrical CE Declarations (DCCE)
