SY STEM E ASR1 ECOWATT
Single zone - Air extraction/introduction control
View larger
SY STEM E ASR1 ECOWATT
New product
 |
ErP compliant | |||
 |
 |
 |
 |
 |

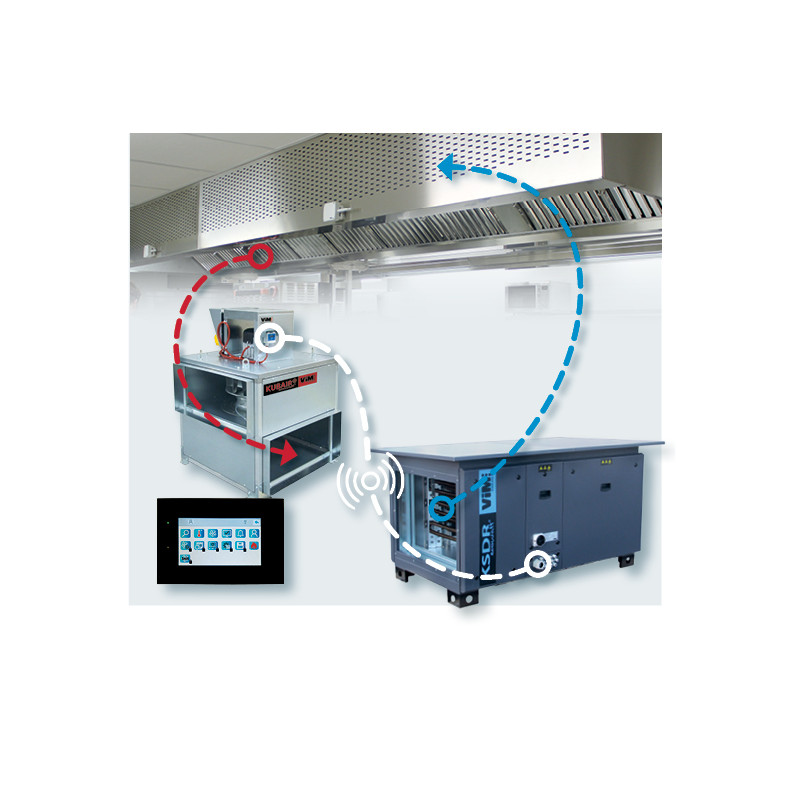

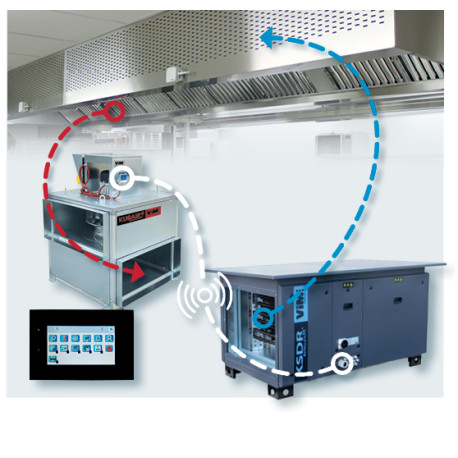

- Complete kitchen air treatment management system
- Control of extraction and compensation flow rates
- Flow and temperature regulation
- Measurement and display of controlled parameters
- Security and alarm control
- Comfort management and smoke extraction
- VIM Commissioning
Applications:
Complete management of single-zone ventilation and air treatment systems for all types of professional kitchens and laundries.
Combining an extraction fan with an AHU. In the case of several extraction fans with a single AHU, use the ASR2 ECOWATT system.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
SY STEM E ASR ECOWATT®
Management manual debits
Management manual debits
Comfortable operation
- A unique local CVF control allows manual variation of extraction and introduction flow rates. It also stops the air handling unit and the exhaust fan.
- The KSDR ECOWATT type air handling unit® is equipped with a CORRIGO regulator which receives a 0-10V signal from the local CVF control to control the speed variation of its own ECM motor and that of the exhaust fan motor.
- The compensation flow can be blown in by the hood (VORAX type compensation hoods® COMFORT 90/10) or by a network of diffusers placed in the cooking zone or in the dining room.
- The blowing temperature is kept constant in winter thanks to a post-heating battery regulated and controlled by a motorized 3-way valve or by an electric heater. If the unit is equipped with a cold coil, the AHU will allow cooling in summer.
- The air handling unit's regulation can be connected to a BMS in Modbus or BACnet.
Smoke extraction operation
- If necessary, the BDRA punch can switch to smoke extraction mode by activating the "fire" input of the air handling unit and the extractor. This fire input has priority over all the other controller inputs such as the external start / stop input, but also if the unit has been shut down from the ETD remote control.
- The CORRIGO regulator forces the extractor to pass to its maximum speed, with a self-holding function. This function ensures the smoke extraction function, even if the punch is damaged by fire.
- All the regulating functions of the extractor are inhibited. A fire alarm is activated.
- According to the requirements of the safety commission, the compensation fan is managed according to 2 possibilities:
- Forcing the air handling unit fan to stop, closing the damper and closing the valve or cutting off the electric heater.
- Forcing the air handling unit fan to its maximum speed (water coil always regulated to protect it from freezing).
Adjustment and start-up
- The extraction fan and the AHU will have been selected at the maximum flow rate, with an extraction flow rate greater than the introduction flow rate, to keep the kitchen in slight depression.
- The exhaust fan flow display (TED ECOWATT® ASR, KUBAIR ECOWATT® ASR and JBRB ECOWATT® ASR) is possible thanks to a pressure transmitter connected to the pressure ports of the exhaust fan and to the CORRIGO regulator of the air handling unit.
- The ETD remote control of the air handling unit allows the adjustment of the minimum and maximum flow rates, the display of the flow rates (m3/ h) in real time and the change of temperature setpoint. It should be placed outside the area to be smoke free.
Security and alarms
- Checking the clogging of the fresh air filters by depressostat.
- Check the operation of the supply fan, the operation of the exhaust fan.
- Antifreeze safety on the hot water coil by contact probe.
- Overheating thermostat on electric heater.
- Post-ventilation to allow the battery to cool after shutdown.
- Motorized anti-freeze damper on the fresh air (option).
- Slaving of the gas valve to the operation of the extractor according to the decree of June 25, 1980.
VORAX® ECO ASR ECOWATT®
Management automatic debits
Management automatic debits
Comfortable operation
- Automatic flow management is carried out by the VORAX system® ECO thanks to relative humidity probes positioned on the front face of hoods and temperature probes placed in the kitchen. The flow rate varies linearly as a function of the temperature evolution as long as the humidity is below the set threshold. When the humidity exceeds the setpoint, the system gives it priority and goes to maximum speed.
- The KSDR ECOWATT type air handling unit® is equipped with a CORRIGO regulator which receives a 0-10V signal from the CTCF box for the speed variation of its own ECM motor and that of the exhaust fan motor.
- The compensation flow can be blown in by the hood (VORAX type compensation hoods® COMFORT 90/10) or by a network of diffusers placed in the cooking zone or in the dining room.
- The blowing temperature is kept constant in winter thanks to a post-heating battery regulated and controlled by a motorized 3-way valve or by an electric heater. If the unit is equipped with a cold coil, the AHU will allow cooling in summer.
- The air handling unit's regulation can be connected to a BMS in Modbus or BACnet.
Smoke extraction operation
- If necessary, the COML punch can switch to smoke extraction mode by activating the "fire" input of the air handling unit and the extractor. This fire input has priority over all the other controller inputs such as the external start / stop input, but also if the unit has been shut down from the ETD remote control.
- The CORRIGO regulator forces the extractor to pass to its maximum speed, with a self-holding function. This function ensures the smoke extraction function, even if the punch is damaged by fire.
- All the regulating functions of the extractor are inhibited. A fire alarm is activated.
- According to the requirements of the safety commission, the compensation fan is managed according to 2 possibilities:
- Forcing the air handling unit fan to stop, closing the damper and closing the valve or cutting off the electric heater.
- Forcing the air handling unit fan to its maximum speed (water coil always regulated to protect it from freezing).
Adjustment and start-up
- The extraction fan and the AHU will have been selected at the maximum flow rate, with an extraction flow rate greater than the introduction flow rate, to keep the kitchen in slight depression.
- The exhaust fan flow display (TED ECOWATT® ASR, KUBAIR ECOWATT® ASR and JBRB ECOWATT® ASR) is possible thanks to a pressure transmitter connected to the pressure ports of the exhaust fan and to the CORRIGO regulator of the air handling unit.
- The ETD remote control of the air handling unit allows the adjustment of the minimum and maximum flow rates, the display of the flow rates (m3/ h) in real time and the change of temperature setpoint. It should be placed outside the area to be smoke free.
- Checking the clogging of the fresh air filters by depressostat.
- Check the operation of the supply fan, the operation of the exhaust fan.
- Antifreeze safety on the hot water coil by contact probe.
- Overheating thermostat on electric heater.
- Post ventilation to allow the battery to cool after its shutdown.
- Motorized anti-freeze damper on the fresh air (option).
- Slaving of the gas valve to the operation of the extractor according to the decree of June 25, 1980.
