JBRB ECOWATT MA

Unregulated C4 extraction boxes

Direct drive - Backward - ECM < 9 200 m3/h

View larger

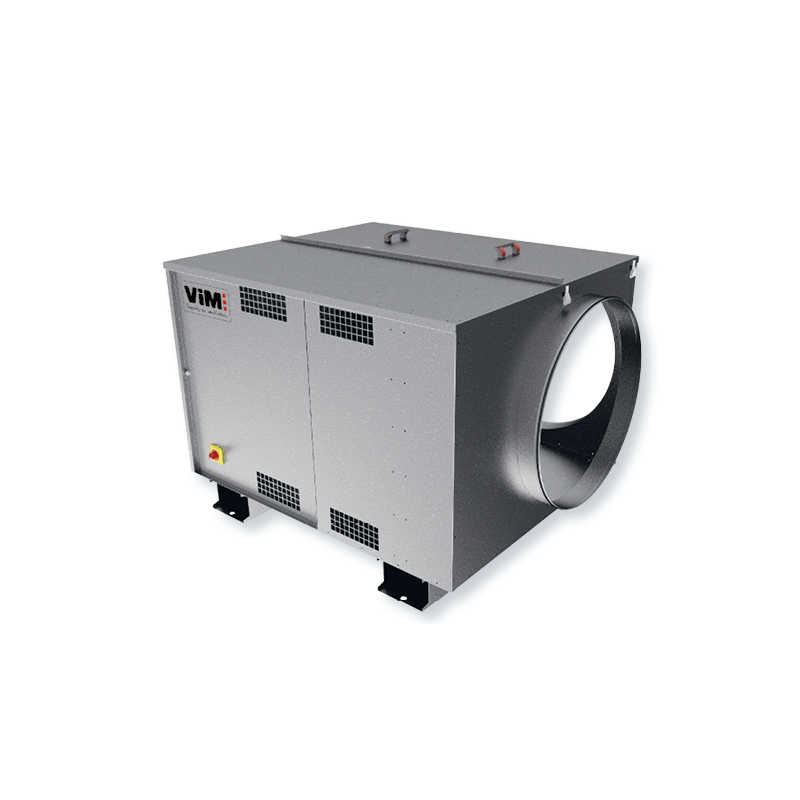

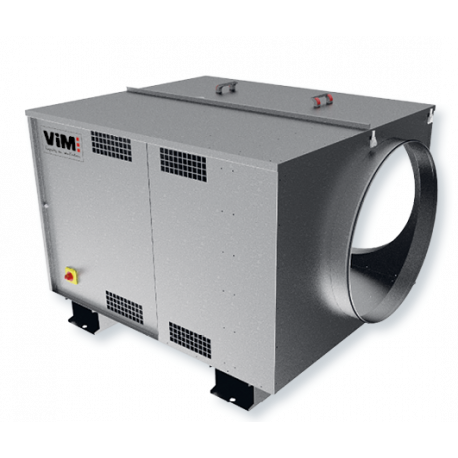

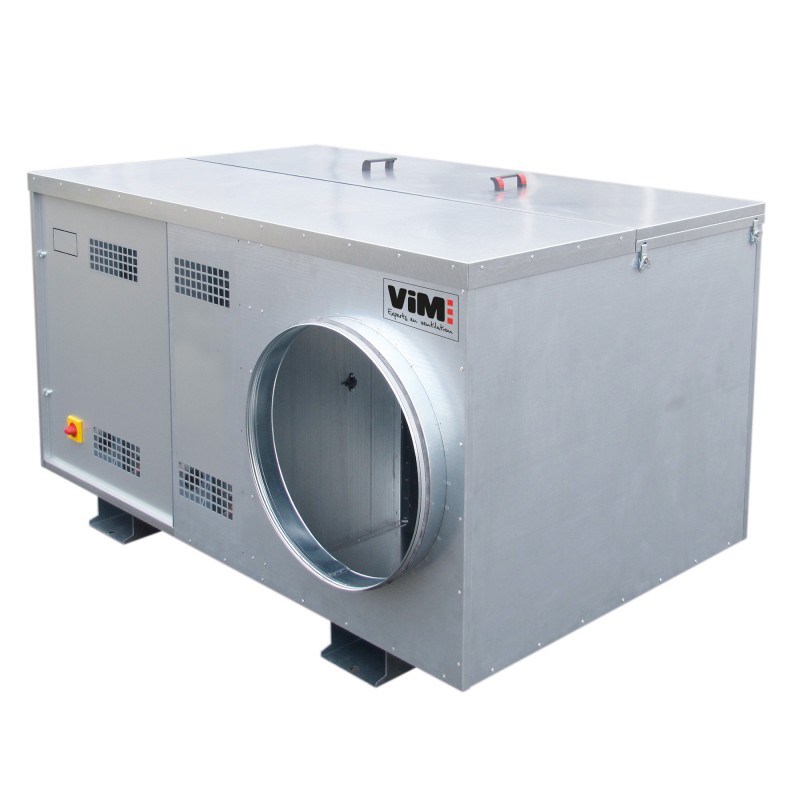

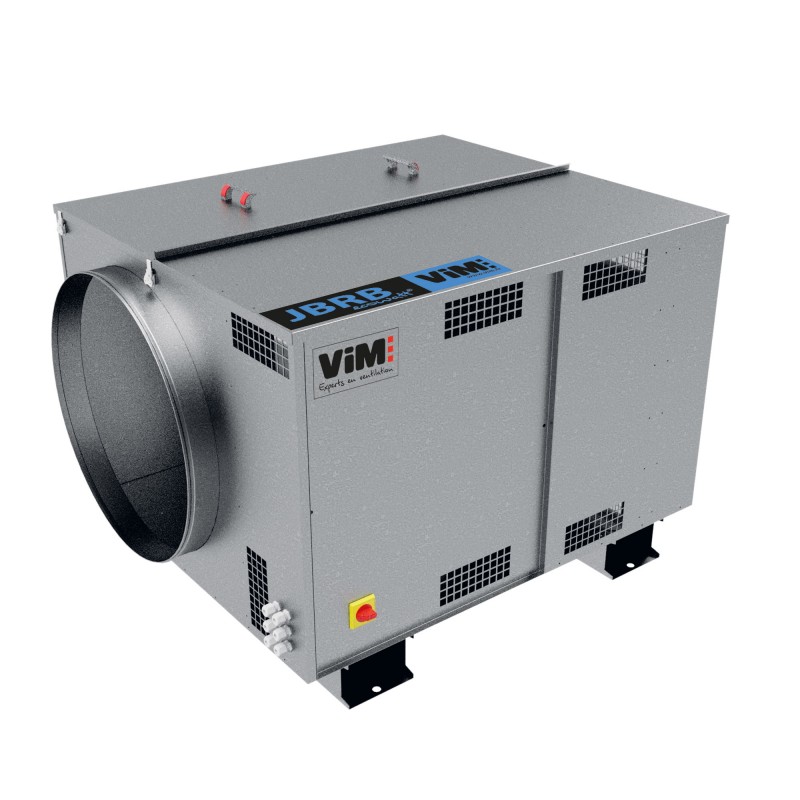

JBRB ECOWATT MA

Unregulated C4 extraction boxes

Direct drive - Backward - ECM < 9 200 m3/h

	ErP 2018 compliant - UVNR - Variable EC motor

Low-power ECM motor out of the airflow
ZM310 alloy steel casing for C4 and C5 environments
Built-in potentiometer
High-performance reaction wheel
Multiple installation configurations
Easy maintenance
Single-phase or three-phase
ASR model for association with CTA for introducing fresh air

Application

Air extraction.
Indoor or outdoor installation.
Approved 400°C 1/2h category C4.
VMC for tertiary premises.
Air intake in tertiary premises.
Extraction in professional kitchens.

Tertiary buildings

Buildings for catering

CAD / BIM

BIM: JBRB ECOWATT H Media locked

BIM: JBRB ECOWATT V Media locked

CAD : JBRB ECOWATT

Order online

Description
Dimensions
Documentation
Public Price
Software
References

Flow rates from 100 to 9,200 m3/h.
10 sizes: 04 / 06 / 10 / 22 / 30 / 38 / 48 / 70 / 82 / 92.
Available configurations:

L: online.

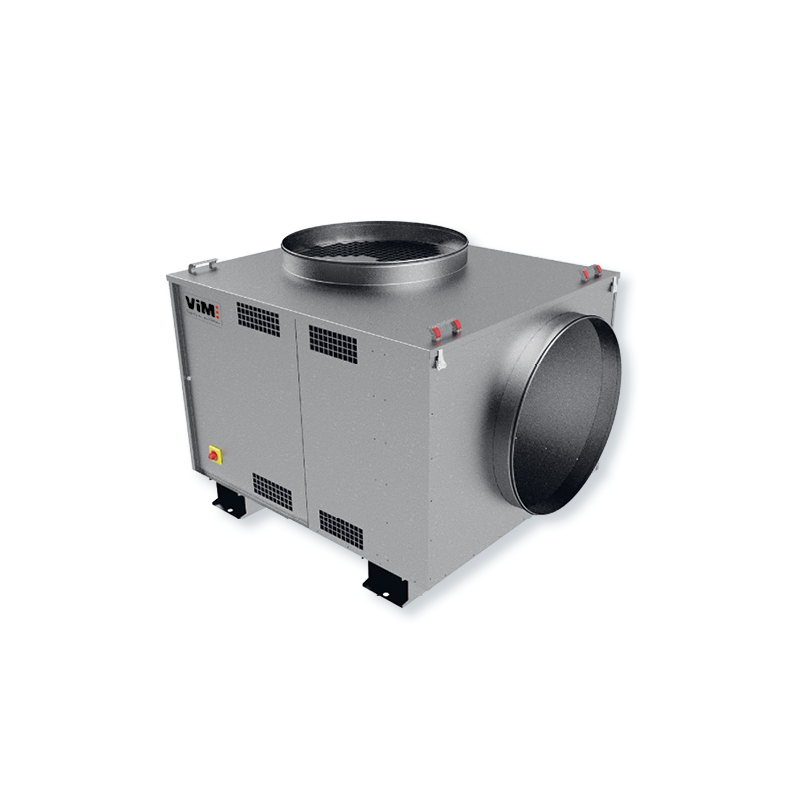

M: modular, supplied with a cap, for 1 or 2 suctions at 90°.

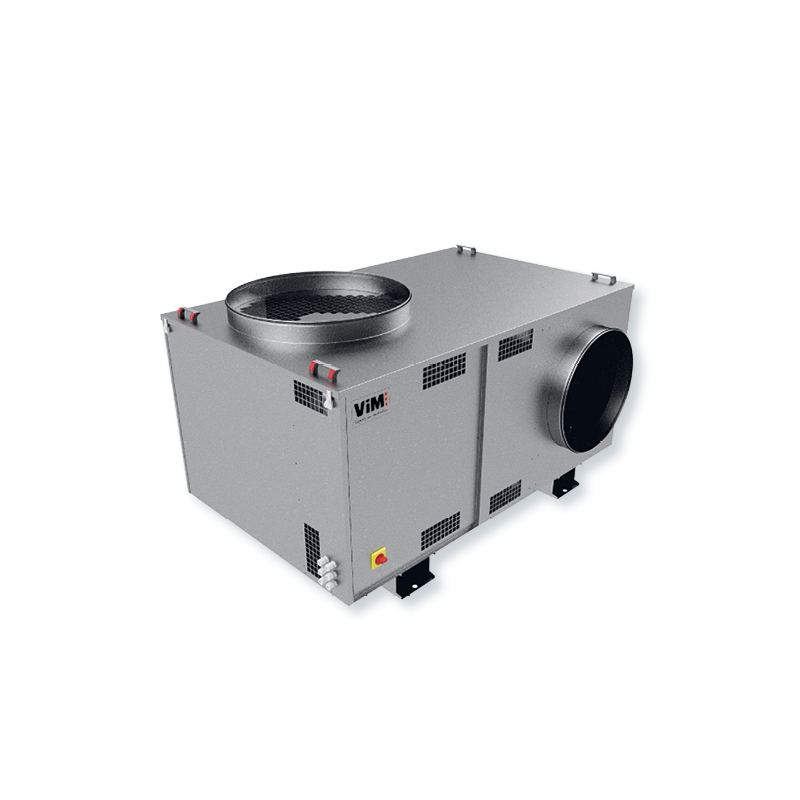

D: 180° double suction.

Horizontal or vertical rejection version.
Insulated version: acoustic insulation with 25 mm glass wool (fire classification A2-s1, d0 or M0) in double-skin panels.

Options - Anti-corrosion treatment

JBRB ECOWATT - Sizes 04 to 92 - Main spare parts

JBRB ECOWATT - Sizes 30 to 92 - Main spare parts

Construction

ZM310 alloy steel sheet casing (Zn - Al - Mg) for environments with C4 medium durability or C5 low durability corrosivity, equipped with 4 fixing lugs (size 04 to 38) or 2 transverse omegas (sizes 48 to 92).
Lifting by 2 steel legs or by slinging through the omegas.
Connection tap with class D seals. Vertical discharge version supplied without connection tap (flat tap with PAPV seal to be mounted as an option with self-drilling screws).
INTZ: Mounted/wired padlockable proximity switch.
BDEZ: mounted pressure switch, air-connected, to be adjusted on site.
High performance reaction turbine in Z275 galvanized steel.
Direct coupling.
Cover equipped with 2 or 4 handles, removable without tools to ensure easy access to the inside of the box for cleaning.
IS version: acoustic insulation with 25 mm M0 glass wool in double-skin panels.
Corrosion resistance treatment option: contact us.

Motorization

Electronically Commutated Motor ECM out of airflow:
- 04 to 22: IP44 class B single-phase 230V, 50Hz.
- 30, 38, 48, 70, 82: IP54, class F, single-phase 230V, 50Hz.
- 30, 38, 48, 70, 92: IP 54, class F, three-phase 400V, 50Hz.
Electronically controlled thermal protection approved for C4 operation.

Easy maintenance

C4 fan selection - 400°C 1/2H

JBRB ECOWATT MA 04 / 06 / 10 / 22 / 30 / 38 - L / M
Horizontal discharge

Model	A	B	B1	C*	D1	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 04	627	523	533	320	160	568	502	157	175	157	161	22
JBRB ECOWATT MA 06	627	523	533	320	200	568	502	157	175	157	161	22
JBRB ECOWATT MA 10	627	566	583	421	250	569	544	207	185	207	186	26
JBRB ECOWATT MA 22	767	683	701	511	355	709	661	252	237	252	239	45
JBRB ECOWATT MA 30	1019	820	873	568	400	892	797	267	271	267	271	64
JBRB ECOWATT MA 38	1153	938	971	631	500	1036	907	306	331	306	331	78

* IS version: +27 mm

JBRB ECOWATT MA 48 / 70 / 82 / 92 - L / M
Horizontal discharge

Model	A	B	B1	C*	D1	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 48	1165	985	1065	800	560	700	918	433	330	433	330	107
JBRB ECOWATT MA 70	1280	1030	1100	880	630	815	970	473	365	473	365	121
JBRB ECOWATT MA 82	1404	1100	1175	970	710	846	1032	518	405	518	405	170
JBRB ECOWATT MA 92	1404	1100	1175	970	710	846	1032	518	405	518	405	170

* IS version: +27 mm

JBRB ECOWATT MA 04 / 06 / 10 / 22 / 30 / 38 - L / M
Vertical discharge

Model	A	B	B1	C*	D1	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 04	609	523	533	320	160	568	502	157	175	130	165	22
JBRB ECOWATT MA 06	609	523	533	320	200	568	502	157	175	130	165	22
JBRB ECOWATT MA 10	616	566	583	421	250	569	544	207	185	166	198	26
JBRB ECOWATT MA 22	756	683	701	511	355	709	661	252	237	236	271	45
JBRB ECOWATT MA 30	973	820	873	565	400	892	797	267	271	248	286	64
JBRB ECOWATT MA 38	1106	938	971	637	500	1036	907	306	331	315	350	78

* IS version: +27 mm

JBRB ECOWATT MA 48 / 70 / 82 / 92 - L / M
Vertical discharge

Model	A	B	B1	C*	D1	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 48	1119	985	1065	800	560	700	918	433	330	320	340	107
JBRB ECOWATT MA 70	1234	1030	1100	880	630	815	970	473	365	370	375	121
JBRB ECOWATT MA 82	1358	1100	1175	970	710	846	1032	518	405	482	415	170
JBRB ECOWATT MA 92	1358	1100	1175	970	710	846	1032	518	405	482	415	170

* IS version: +27 mm

JBRB ECOWATT MA 10 / 22 / 30 / 38 - D
Horizontal discharge

Model	A	B	C*	D1	D2	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA10	815	603	421	250	200	777	544	194	161	207	186	28
JBRB ECOWATT MA22	1048	720	511	355	315	998	661	239	219	252	239	45
JBRB ECOWATT MA30	1324	930	566	400	355	1238	797	267	247	267	271	67
JBRB ECOWATT MA38	1468	1024	631	500	400	1396	908	306	281	306	331	83

* IS version: +27 mm

JBRB ECOWATT MA 48 / 70 / 82 / 92 - D
Horizontal discharge

Model	A	B	C*	D1	D2	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA48	1490	1105	800	560	450	990	918	433	270	433	330	135
JBRB ECOWATT MA70	1691	1183	880	630	500	986	978	473	301	473	365	150
JBRB ECOWATT MA82	1813	1237	970	710	560	1016	1032	518	340	518	405	200
JBRB ECOWATT MA92	1813	1237	970	710	560	1016	1032	518	340	518	405	200

* IS version: +27 mm

JBRB ECOWATT MA 10 / 22 / 30 / 38 - D
Vertical discharge

Model	A	B	C*	D1	D2	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 10	804	603	421	250	200	777	544	194	161	166	198	28
JBRB ECOWATT MA 22	1037	720	511	355	315	998	661	239	219	236	271	45
JBRB ECOWATT MA 30	1276	930	566	400	355	1238	797	267	247	248	286	67
JBRB ECOWATT MA 38	1426	1025	637	500	400	1396	909	306	281	315	350	83

* IS version: +27 mm

JBRB ECOWATT MA 48 / 70 / 82 / 92 - D
Vertical discharge

Model	A	B	C*	D1	D2	E	F	G	H	I	J	Weight (kg)
JBRB ECOWATT MA 48	1444	1105	800	560	450	990	918	433	270	320	340	135
JBRB ECOWATT MA 70	1691	1183	880	630	500	986	978	473	301	370	375	150
JBRB ECOWATT MA 82	1767	1237	970	710	560	1016	1032	518	340	482	415	200
JBRB ECOWATT MA 92	1767	1237	970	710	560	1016	1032	518	340	482	415	200
