JBRB ECOWATT PR
Regulated C4 extraction boxes
Direct drive - Backward - ECM < 9200 m3/h
View larger

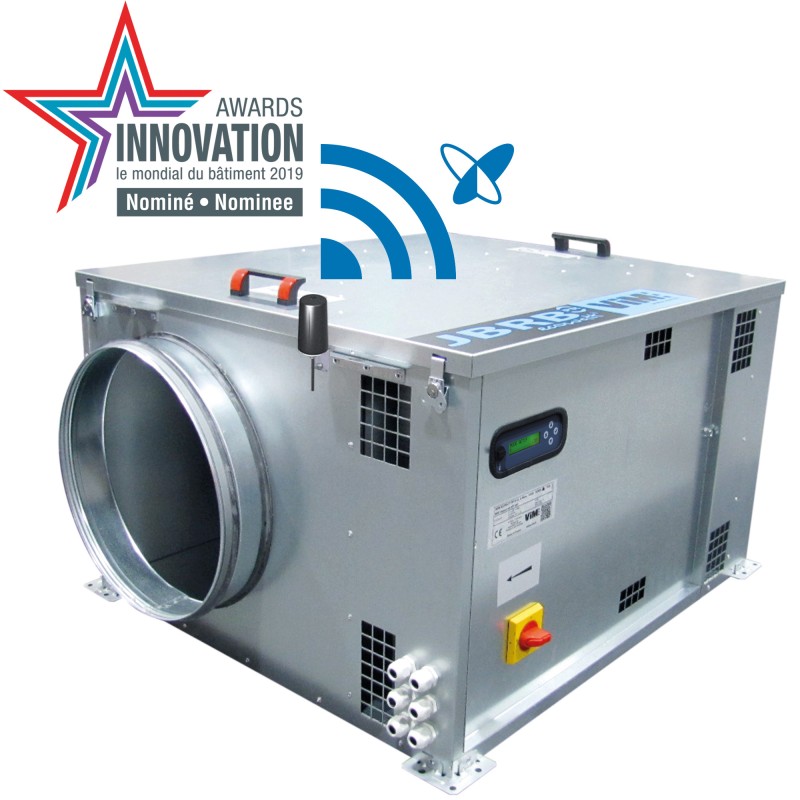

JBRB ECOWATT PR
New product
 |
ErP 2018 compliant UVNR - Variable EC Motor |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
- Low-power ECM motor out of the airflow
- ZM310 alloy steel casing for C4 and C5 environments
- High-performance reaction wheel
- COP, CAV, VAV operation
- Modbus or Sigfox communication
- Compliance with Hygro Technical Notice and CPT 3827 - Cdep 2
- Multiple installation configurations
- Easy maintenance
- Single-phase or three-phase
Application
Air extraction.
Indoor or outdoor installation.
Approved 400°C 1/2h category C4.
VMC in collective housing and tertiary premises.
Air intake in tertiary premises.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flow rates from 100 to 9200 m3/h.
10 sizes: 04 / 06 / 10 / 22 / 30 / 38 / 48 / 70 / 82 / 92.
JBRB ECOWATT PR: Modbus RTU communicator.
JBRB ECOWATT PR SIGFOX: Sigfox communicator.
Available configurations:
Insulated version: acoustic insulation with 25 mm A2-s1, d0 (M0) glass wool in double-skin panels.
Options - Anti-corrosion treatment
JBRB ECOWATT PM-PR - Main spare parts
Construction
10 sizes: 04 / 06 / 10 / 22 / 30 / 38 / 48 / 70 / 82 / 92.
JBRB ECOWATT PR: Modbus RTU communicator.
JBRB ECOWATT PR SIGFOX: Sigfox communicator.
Available configurations:

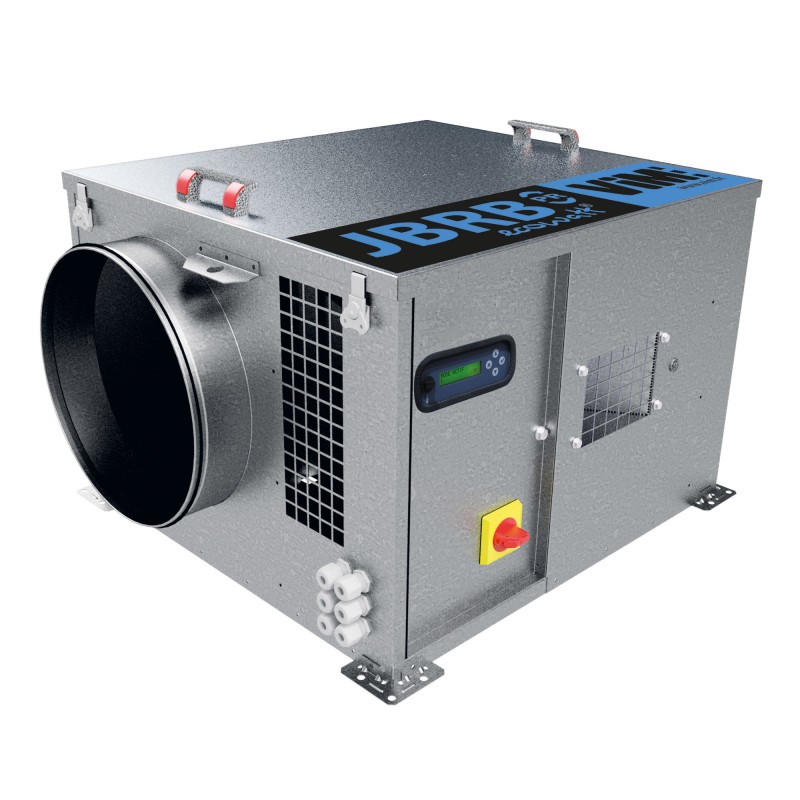

- L: online.

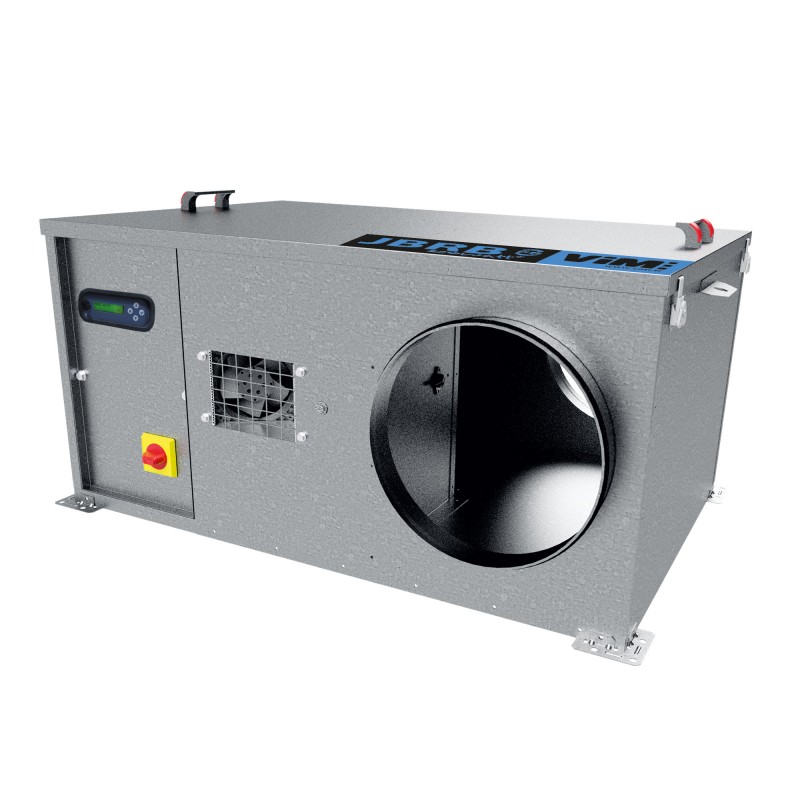

- M: modular, supplied with a cap for 1 or 2 90° suctions.

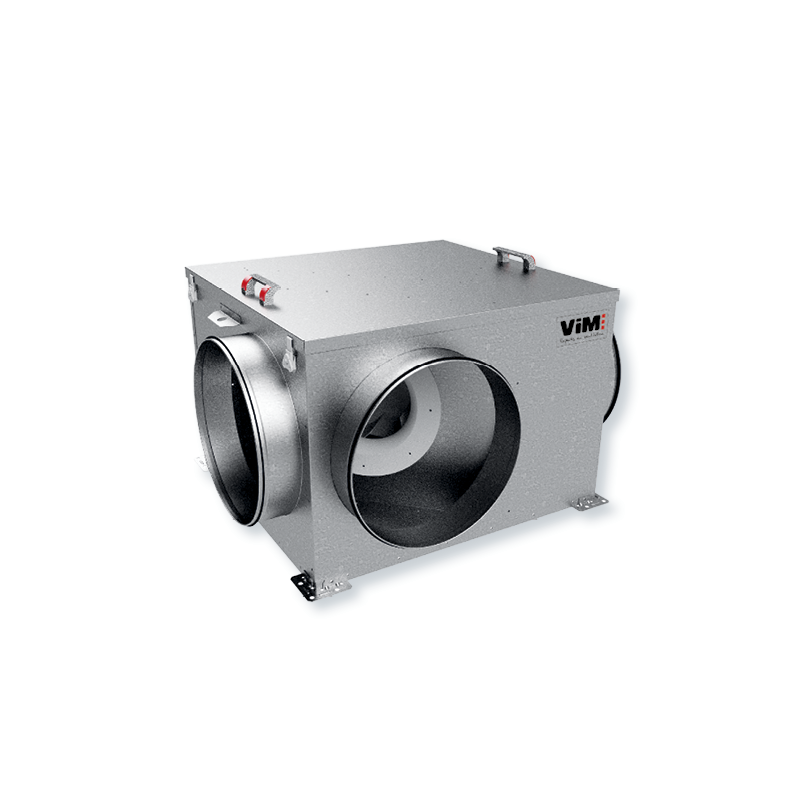

- D: 180° double suction.
Insulated version: acoustic insulation with 25 mm A2-s1, d0 (M0) glass wool in double-skin panels.
Options - Anti-corrosion treatment
JBRB ECOWATT PM-PR - Main spare parts
Construction
- Alloy steel sheet casing (Zn - Al - Mg) ZM310 for environments with C4 medium durability or C5 low durability corrosivity, equipped with 4 fixing lugs (size 04 to 38) or 2 transverse omegas (sizes 48 to 92).
- Lifting by 2 steel legs or by slinging through the omegas.
- Connection tap with class D seals. Vertical discharge version supplied without connection tap (flat tap with PAPV seal to be mounted as an option with self-drilling screws).
- Direct coupling.
- INTZ : mounted/wired padlockable proximity switch.
- High performance reaction turbine in Z275 galvanized steel.
- Cover equipped with 2 or 4 handles, removable without tools to ensure easy access to the inside of the box for cleaning.
- Horizontal or vertical rejection version.
- IS version : Acoustic insulation with 25 mm M0 glass wool in double-skin panels.
- Corrosion resistance treatment option: contact us.
Motorization
- Electronically Commutated Motor ECM out of the airflow:
- 04 to 22: IP44 class B single-phase 230V, 50Hz.
- 30, 38, 48, 70, 82: IP54, class F, single-phase 230V, 50Hz.
- 30, 38, 48, 70, 92: IP 54, class F, three-phase 400V, 50Hz.
- Electronically controlled thermal protection approved for C4 operation.
RMEC Modbus regulation
- Operation in COP (constant pressure), VAV (variable flow) or CAV (constant flow).
- Control box, IP55, factory mounted and wired.
- Backlit LCD display, with function keys on the front, optional remote control.
- Clear display of the measurement (pressure, flow rate) and the setpoint.
- Integrated ventilation fault signaling: dry contact available on the RMEC terminal block (cutting power under 230Vac: 3A resistive).
- ModBus RTU communication as standard.
RMEC Sigfox Regulation
- SIGFOX network, very low speed and very long range cellular wireless network with national coverage.
- Allows supervision of collective or tertiary VMC installations.
- Cost-effective alternative technology to wired/3G solutions for monitoring or remote reading.
- Additional card integrated into the RMEC to send data to the SIGFOX radio network:
- average, minimum and maximum pressure of the installation,
- average, minimum and maximum flow rate of the installation,
- signal sent in case of power failure,
- signal sent in case of power return,
- alarm on minimum pressure and flow threshold.
C4 fan selection - 400°C 1/2H
JBRB ECOWATT® PR - PR SIGFOX 04 / 06 / 10 / 22 / 30 / 38 - L / M
Horizontal discharge
--- Available only on the "M" modular version
JBRB ECOWATT® PR - PR SIGFOX 10 / 22 / 30 / 38 - D
Horizontal discharge
Horizontal discharge
--- Available only on the "M" modular version
|
Model |
A** |
A |
B |
B' |
C* and ** |
C*** |
D1 |
E |
F |
G |
H |
I |
J |
Weight (kg) |
|
JBRB ECOWATT® PR - PR SIGFOX 04 |
627 |
648 |
523 |
533 |
320 |
321 |
160 |
568 |
502 |
157 |
175 |
157 |
161 |
22 |
|
JBRB ECOWATT® PR - PR SIGFOX 06 |
627 |
648 |
523 |
533 |
320 |
321 |
200 |
568 |
502 |
157 |
175 |
157 |
161 |
22 |
|
JBRB ECOWATT® PR - PR SIGFOX 10 |
627 |
648 |
566 |
583 |
421 |
440 |
250 |
569 |
544 |
207 |
185 |
207 |
186 |
26 |
|
JBRB ECOWATT® PR - PR SIGFOX 22 |
767 |
789 |
683 |
701 |
511 |
530 |
355 |
709 |
661 |
252 |
237 |
252 |
239 |
45 |
|
JBRB ECOWATT® PR - PR SIGFOX 30 |
1019 |
1019 |
820 |
873 |
568 |
585 |
400 |
892 |
797 |
267 |
271 |
267 |
271 |
64 |
|
JBRB ECOWATT® PR - PR SIGFOX 38 |
1153 |
1153 |
938 |
971 |
631 |
656 |
500 |
1036 |
907 |
306 |
331 |
306 |
331 |
78 |
* IS version: +27 mm ** JBRB ECOWATT PR version only ***JBRB ECOWATT PR SIGFOX, IS version: +10 mm
JBRB ECOWATT® PR - PR SIGFOX 48 / 70 / 82 / 92 - L / M
Horizontal discharge
--- Available only on the "M" modular version
Horizontal discharge
--- Available only on the "M" modular version
|
Model |
A |
B |
B' |
C* and ** |
C*** |
D1 |
E |
F |
G |
H |
I |
J |
Weight (kg) |
|
JBRB ECOWATT® PR - PR SIGFOX 48 |
1165 |
985 |
1065 |
800 |
819 |
560 |
700 |
918 |
433 |
330 |
433 |
330 |
107 |
|
JBRB ECOWATT® PR - PR SIGFOX 70 |
1280 |
1030 |
1100 |
880 |
900 |
630 |
815 |
970 |
473 |
365 |
473 |
365 |
121 |
|
JBRB ECOWATT® PR - PR SIGFOX 82 |
1404 |
1100 |
1175 |
970 |
988 |
710 |
846 |
1032 |
518 |
405 |
518 |
405 |
170 |
|
JBRB ECOWATT® PR - PR SIGFOX 92 |
1404 |
1100 |
1175 |
970 |
988 |
710 |
846 |
1032 |
518 |
405 |
518 |
405 |
170 |
* version IS: +27 mm ** version JBRB ECOWATT PR uniquement ***JBRB ECOWATT PR SIGFOX, version IS : +10 mm
JBRB ECOWATT® PR - PR SIGFOX 04 / 06 / 10 / 22 / 30 / 38 - L / M
Vertical discharge
--- Available only on the "M" modular version
Vertical discharge
--- Available only on the "M" modular version
|
Model |
A** |
A |
B |
B' |
C* and ** |
C*** |
D1 |
E |
F |
G |
H |
I |
J |
Weight (kg) |
|
JBRB ECOWATT® PR - PR SIGFOX 04 |
609 |
648 |
523 |
533 |
320 |
321 |
160 |
568 |
502 |
157 |
175 |
130 |
165 |
22 |
|
JBRB ECOWATT® PR - PR SIGFOX 06 |
609 |
648 |
523 |
533 |
320 |
321 |
200 |
568 |
502 |
157 |
175 |
130 |
165 |
22 |
|
JBRB ECOWATT® PR - PR SIGFOX 10 |
616 |
648 |
566 |
583 |
421 |
440 |
250 |
569 |
544 |
207 |
185 |
166 |
198 |
26 |
|
JBRB ECOWATT® PR - PR SIGFOX 22 |
756 |
789 |
683 |
701 |
511 |
530 |
355 |
709 |
661 |
252 |
237 |
236 |
271 |
45 |
|
JBRB ECOWATT® PR - PR SIGFOX 30 |
973 |
1019 |
820 |
873 |
565 |
585 |
400 |
892 |
797 |
267 |
271 |
248 |
286 |
64 |
|
JBRB ECOWATT® PR - PR SIGFOX 38 |
1106 |
1153 |
938 |
971 |
637 |
656 |
500 |
1036 |
907 |
306 |
331 |
315 |
350 |
78 |
* IS version: +27 mm ** JBRB ECOWATT PR version only ***JBRB ECOWATT PR SIGFOX, IS version: +10 mm
JBRB ECOWATT® PR - PR SIGFOX 48 / 70 / 82 / 92 - L / M
Vertical discharge
--- Available only on the "M" modular version
|
Model |
A** |
A |
B |
B' |
C* and ** |
C*** |
D1 |
E |
F |
G |
H |
I |
J |
Weight (kg) |
|
JBRB ECOWATT® PR - PR SIGFOX 48 |
1119 |
1165 |
985 |
1065 |
800 |
819 |
560 |
700 |
918 |
433 |
330 |
320 |
340 |
107 |
|
JBRB ECOWATT® PR - PR SIGFOX 70 |
1234 |
1280 |
1030 |
1100 |
880 |
900 |
630 |
815 |
970 |
473 |
365 |
370 |
375 |
121 |
|
JBRB ECOWATT® PR - PR SIGFOX 82 |
1358 |
1404 |
1100 |
1175 |
970 |
988 |
710 |
846 |
1032 |
518 |
405 |
482 |
415 |
170 |
|
JBRB ECOWATT® PR - PR SIGFOX 92 |
1358 |
1404 |
1100 |
1175 |
970 |
988 |
710 |
846 |
1032 |
518 |
405 |
482 |
415 |
170 |
* IS version: +27 mm ** JBRB ECOWATT PR version only ***JBRB ECOWATT PR SIGFOX, IS version: +10 mm
Horizontal discharge
|
Model |
A** |
A |
B |
C* and ** |
C*** |
D1 |
D2 |
E |
F |
G |
H |
I |
J |
Weight |
|
JBRB ECOWATT® PR - PR SIGFOX 10 |
815 |
837 |
603 |
421 |
440 |
250 |
200 |
777 |
544 |
194 |
161 |
207 |
186 |
28 |
|
JBRB ECOWATT® PR - PR SIGFOX 22 |
1048 |
1070 |
720 |
511 |
530 |
355 |
315 |
998 |
661 |
239 |
219 |
252 |
239 |
45 |
|
JBRB ECOWATT® PR - PR SIGFOX 30 |
1324 |
1324 |
930 |
566 |
585 |
400 |
355 |
1238 |
797 |
267 |
247 |
267 |
271 |
67 |
|
JBRB ECOWATT® PR - PR SIGFOX 38 |
1468 |
1468 |
1024 |
631 |
656 |
500 |
400 |
1396 |
908 |
306 |
281 |
306 |
331 |
83 |
* IS version: +27 mm
JBRB ECOWATT® PR - PR SIGFOX 48 / 70 / 82 / 92 - D
Horizontal discharge
|
Model |
A |
B |
C* and ** |
C*** |
D1 |
D2 |
E |
F |
G |
H |
I |
J |
Weight |
|
JBRB ECOWATT® PR - PR SIGFOX 48 |
1490 |
1105 |
800 |
819 |
560 |
450 |
990 |
918 |
433 |
270 |
433 |
330 |
135 |
|
JBRB ECOWATT® PR - PR SIGFOX 70 |
1691 |
1183 |
880 |
900 |
630 |
500 |
986 |
978 |
473 |
301 |
473 |
365 |
150 |
|
JBRB ECOWATT® PR - PR SIGFOX 82 |
1813 |
1237 |
970 |
988 |
710 |
560 |
1016 |
1032 |
518 |
340 |
518 |
405 |
200 |
|
JBRB ECOWATT® PR - PR SIGFOX 92 |
1813 |
1237 |
970 |
988 |
710 |
560 |
1016 |
1032 |
518 |
340 |
518 |
405 |
200 |
* version IS: +27 mm
JBRB ECOWATT® PR - PR SIGFOX 10 / 22 / 30 / 38 - D
Vertical discharge
|
Modèle |
A** |
A |
B |
C* et ** |
C*** |
D1 |
D2 |
E |
F |
G |
H |
I |
J |
Poids |
|
JBRB ECOWATT® PR - PR SIGFOX 10 |
804 |
837 |
603 |
421 |
440 |
250 |
200 |
777 |
544 |
194 |
161 |
166 |
198 |
28 |
|
JBRB ECOWATT® PR - PR SIGFOX 22 |
1037 |
1070 |
720 |
511 |
530 |
355 |
315 |
998 |
661 |
239 |
219 |
236 |
271 |
45 |
|
JBRB ECOWATT® PR - PR SIGFOX 30 |
1276 |
1308 |
930 |
566 |
585 |
400 |
355 |
1238 |
797 |
267 |
247 |
248 |
286 |
67 |
|
JBRB ECOWATT® PR - PR SIGFOX 38 |
1426 |
1468 |
1025 |
637 |
656 |
500 |
400 |
1396 |
909 |
306 |
281 |
315 |
350 |
83 |
* IS version: +27 mm
JBRB ECOWATT® PR - PR SIGFOX 48 / 70 / 82 / 92 - D
Vertical discharge
|
Model |
A** |
A |
B |
C* and ** |
C*** |
D1 |
D2 |
E |
F |
G |
H |
I |
J |
Weight |
|
JBRB ECOWATT® PR - PR SIGFOX 48 |
1444 |
1490 |
1105 |
800 |
819 |
560 |
450 |
990 |
918 |
433 |
270 |
320 |
340 |
135 |
|
JBRB ECOWATT® PR - PR SIGFOX 70 |
1691 |
1737 |
1183 |
880 |
900 |
630 |
500 |
986 |
978 |
473 |
301 |
370 |
375 |
150 |
|
JBRB ECOWATT® PR - PR SIGFOX 82 |
1767 |
1813 |
1237 |
970 |
988 |
710 |
560 |
1016 |
1032 |
518 |
340 |
482 |
415 |
200 |
|
JBRB ECOWATT® PR - PR SIGFOX 92 |
1767 |
1813 |
1237 |
970 |
988 |
710 |
560 |
1016 |
1032 |
518 |
340 |
482 |
415 |
200 |
* IS version: +27 mm
Detailed specifications
Text catalog pages (CT)
Text catalog pages (CT) Other languages
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) Other
Installation instructions (NT) Other languages
Installation instructions (NT) - Old version
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Technical Notice (ATEC)
Declaration of performance (DOP)
Product environmental profile (PEP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Commercial documents
Commercial leaflet (FCOM)
EASYVENT
Access the software online
| ALL APPLICATIONS |
|||
 |
Selection of fans and AHU |
|
Other products: permanent updates BSP F400 CAB ECOWATT CAD HR SLIM CAD O INTEGRAL CBM CBM RE CGT CAT N F400 CHGT F400 - CHGT F300 CHRB/TN - CRVB/TN CMB - CMT CRHB-CRVB ECOWATT CTB CVAB N - CVAT N CVAB N - CVAT N ECOWATT FR F400 HCTB - HCTT - HCTT ATEX HDB ATEX HGHT F400 / F200 HGTT-V HXBR - HXTR HXBR ECOWATT KABB - KABT PURECLASS TCBB - TCBT TCTB ATEX - TGT ATEX TCDH ATEX TD - TD ECOWATT TD ATEX TD SILENT - TD SILENT ECOWATT TGHT F400 - THGT F200 TGT TGT ATEX THC - THC ECOWATT THGT HATCH F400 TRB - TREB TXBR ECOWATT ECOWATT WIND VENT-NK - VENT-VN |
OPTAIR RT Conso
Download OPTAIR Conso
| COLLECTIVE AND TERTIARY VMC | |||
 |
Calculation of VMC flow rates Selection of VMC boxes |
|
ALIZE AUTO ALIZE HYGRO JBEB MV JBHB ECO ECM PR JBRB ECOWATT JBRB ECOWATT PR JBRB ECOWATT PM JBRE AC (bientôt disponible) JBRE ECOWATT JBRE ECOWATT PR KMDT - KMDT PM KSTD KSTD ECOWATT KSTD IP KUBAIR F400 ECOWATT MV TCRH TCRV ECOWATT TCRH TCRV ECOWATT PR TCSH TCSH ECOWATT TECH C4 ECOWATT (bientôt disponible) TEDH TEDV C4 ECOWATT TEDH TEDV C4 ECOWATT PR TEDH TEDV F400 ECOWATT THERMOGAZ |
OPTAIR VMC
Download OPTAIR VMC
| COLLECTIVE AND TERTIARY VMC | |||
 |
Sizing of VMC installations Material list and quote |
|
ALIZE AUTO ALIZE HYGRO JBEB MV JBHB ECO ECM PR JBRB ECOWATT JBRB ECOWATT PR JBRB ECOWATT PM JBRE AC (bientôt disponible) JBRE ECOWATT JBRE ECOWATT PR KMDT - KMDT PM KSTD KSTD ECOWATT KSTD IP KUBAIR F400 ECOWATT MV TCRH TCRV ECOWATT TCRH TCRV ECOWATT PR TCSH TCSH ECOWATT TECH C4 ECOWATT (coming soon) TEDH TEDV C4 ECOWATT TEDH TEDV C4 ECOWATT PR TEDH TEDV F400 ECOWATT THERMOGAZ |
ECOLE ROCKEFELLER
Specialized education
69 - Rhône
Année : 2018
Maître d'ouvrage : SERL LYON (69)
BET Fluides : AIA (69)
Installateur : MOOS SA (dep. 69)
Architecte : VURPAS ARCHITECTES LYON (69)
Installed products:
↑
X
