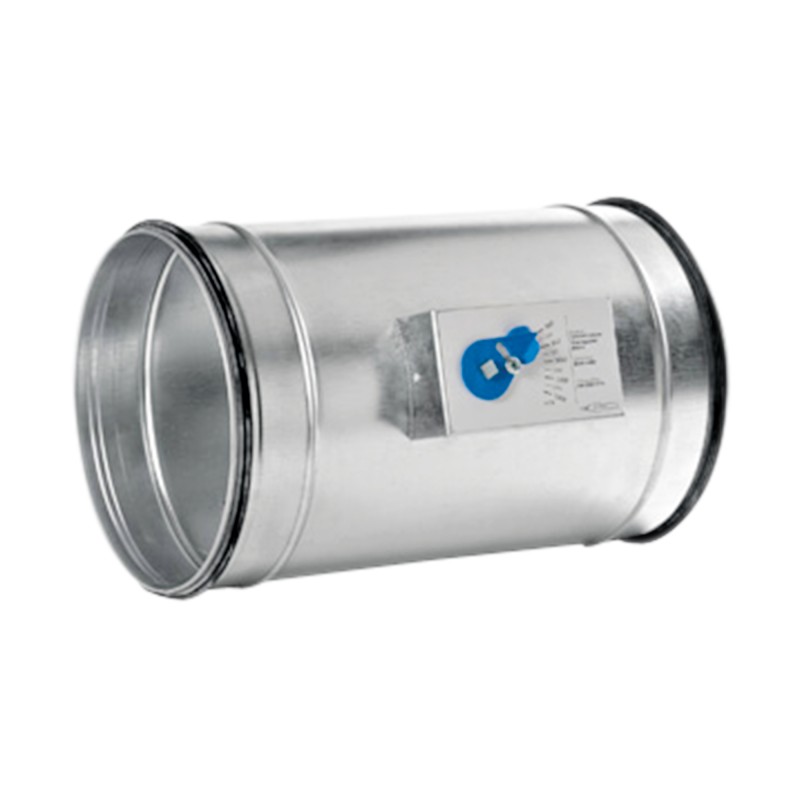

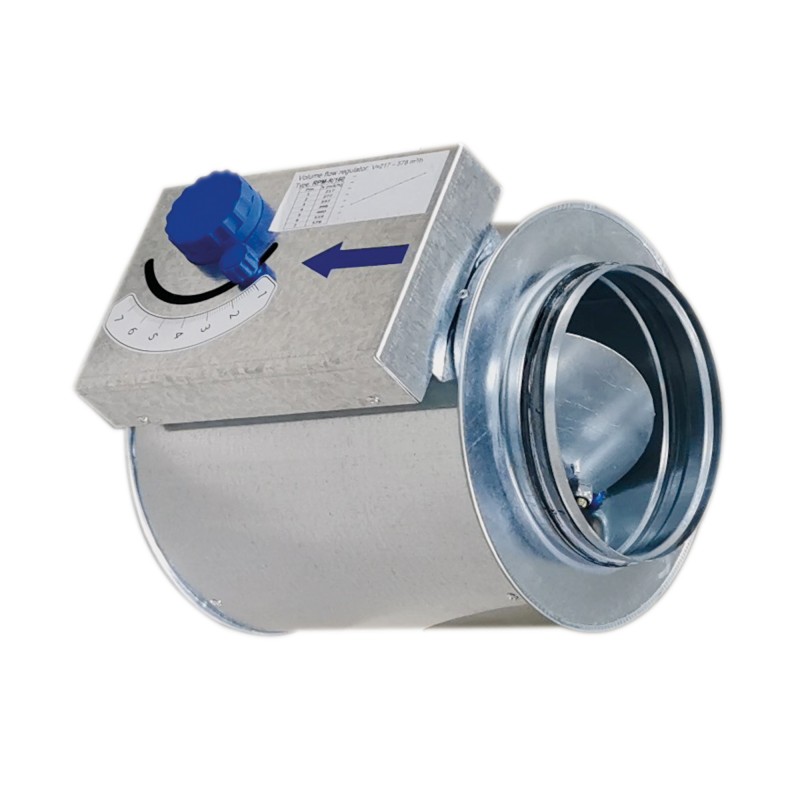

RDGC
Circular registers
Galva or stainless steel - CAV - Autonomous
View larger
RDGC
New product
- Mechanical regulation without auxiliary energy
- Accurate for network pressure between 50 and 1000 Pa
- Equipped with gaskets as standard
- Adjustable setpoint flow rate on site
Application
Ventilation and air conditioning installation.
Ensures constant flow without auxiliary energy.
Mounts on circular air extraction or intake ducts.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
9 models: Ø80, 100, 125, 160, 200, 250, 315, 355, 400 mm.
Description
Description
- Regulator body made of Z275 galvanized steel, laser-welded and waterproof.
- Equipped at each end with a sealing gasket.
- Balancing flap connected to a shock absorber preventing oscillations.
- Operating temperatures between -20°C and +70°C.
- Available in an insulated version: 30mm thick rock wool.
- Stainless steel body, shutter and flanges AISI 304 Or AISI 316 stainless steel > contact us
|

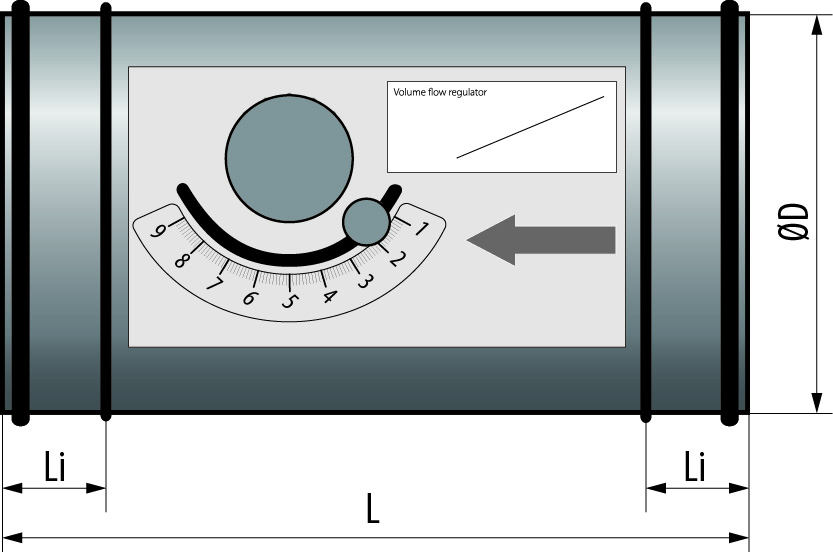

Ø D |
Minimum flow rates m3/h V = 3 m/s |
Flow m3/h V = 7 m/s |
L |
Li |
|
80 |
54 |
145 | 300 | 35 |
|
100 |
85 |
226 | 300 | 35 |
|
125 |
132 |
353 | 300 | 35 |
|
160 |
217 |
578 | 300 | 35 |
|
200 |
340 |
904 | 300 | 35 |
|
250 |
530 |
1413 |
400 |
55 |
|
315 |
840 |
2243 |
400 |
55 |
|
355 |
1070 |
2850 |
400 |
55 |
|
400 |
1356 |
3617 |
435 |
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) - Old version
Prescription assistance
Specification text (TP)
