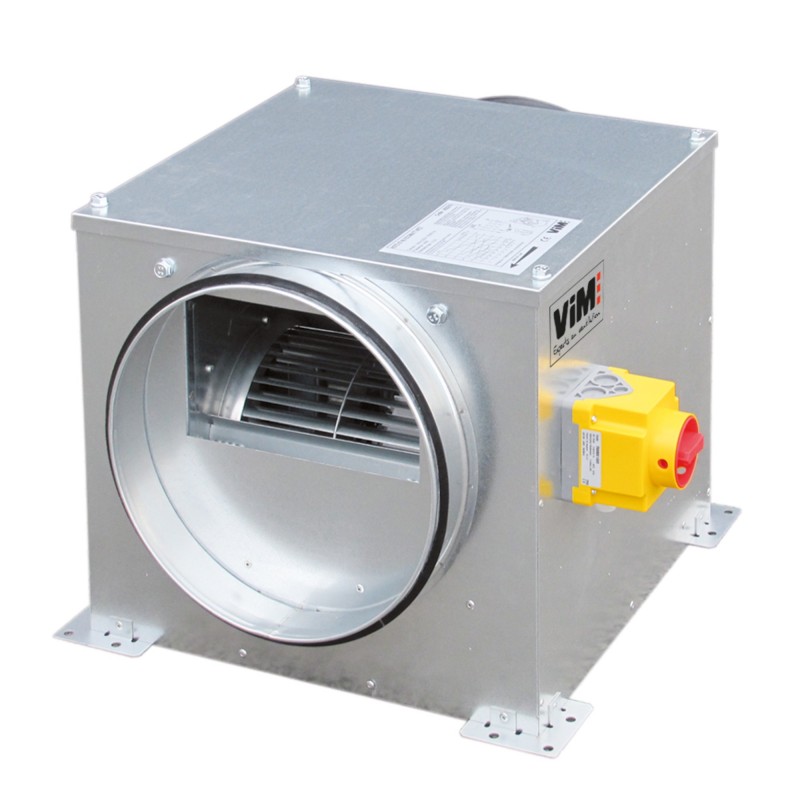

K STD ECOWATT
Extraction or insufflation boxes
Direct drive - Action - ECM < 6200 m3/h
View larger
K STD ECOWATT
New product
 | ErP 2018 compliant - UVNR - Variable EC motor | |||
 |  |  |  | |
- Low consumption ECM motor
- Bare version, insulated 10 mm or 50 mm
- Built-in potentiometer
- G4, M5 or F7 filter
- RMED option for regulation
Application
Extraction or introduction of air.
Indoor or outdoor installation without roof.
Horizontal or vertical mounting.
Order online Description
Dimensions
Documentation
Public Price
Software
References
Flow rates from 400 to 6,200 m3/h.
6 sizes: 7 (Ø250) / 10 (Ø315) / 15 (Ø355) / 28 (Ø400) / 40 (Ø450) / 45 (Ø500).
3 versions:
NU: box without insulation.
IS: 10 mm polyethylene foam insulation on 6 sides.
DB: reinforced insulation 50 mm of rock wool on 6 sides.
With INTZ or INTZ + BDEZ.
K STD ECOWATT - Main spare parts
Construction
Insulation
Motorization
Filtration as accessory
6 sizes: 7 (Ø250) / 10 (Ø315) / 15 (Ø355) / 28 (Ø400) / 40 (Ø450) / 45 (Ø500).
3 versions:
NU: box without insulation.
IS: 10 mm polyethylene foam insulation on 6 sides.
DB: reinforced insulation 50 mm of rock wool on 6 sides.
With INTZ or INTZ + BDEZ.
K STD ECOWATT - Main spare parts
Construction
- Box made of Z275 galvanized steel sheet equipped with 4 fixing brackets.
- Access to the filter and fan by unscrewing the cover.
- The filter is blocked when screwing the cover.
- Housing for G4, M5 or F7 filter (accessories).
- Circular connection with class D sealing gaskets.
- Double-inlet action fan with integrated motor.
- INTZ : padlockable proximity switch with mounted/wired position feedback.
- BDEZ : pressure switch fitted, not air-connected, to be adjusted on site.
Insulation
- IS version : acoustic and thermal insulation in 10 mm B-s2,d0 or M1 polyethylene foam.
- DB version : reinforced acoustic and thermal insulation in 50 mm rock wool, density 50 kg/m3, covered with a woven high-speed fleece, fire classification A2-s1, d0 or M0.
Motorization
- ECM type engine electronically switched, very high controllable efficiency:
- Thermal protection managed by electronics with automatic reset.
- Min/max air temperature: -20°C/+40°C.
- Size 07 to 15 : IP44 motor, single-phase 230V, 50-60Hz, class B.
- Size 28 : IP54 motor, single-phase 230V, 50-60Hz, class B.
- Size 40 and 45 : IP54 motor, three-phase 400V, 50-60Hz, class B.
Filtration as accessory
- Classification according to EN 779 and ISO 16890:
- FIGR G4 Coarse 70 Pleated Filters%.
- FIFI M5 ePM10 50 pleated filters%.
- FIFI F7 ePM1 55 mini-pleat filters%.
Version | Size | HAS | B | C | ØD | E | F | G | H | ØJ | K | Weight (Kg) |
NAKED | 07 | 385 | 385 | 337 | 250 | 183 | 470 | 409 | 50 | 9 | 95 | 10 |
10 | 385 | 385 | 382 | 315 | 196 | 470 | 409 | 50 | 9 | 95 | 12 | |
15 | 450 | 450 | 426 | 355 | 226 | 534 | 474 | 50 | 9 | 95 | 18 | |
28 | 600 | 600 | 504 | 400 | 258 | 754 | 623 | 50 | 9 | 95 | 36 | |
40 | 600 | 600 | 504 | 450 | 258 | 754 | 623 | 50 | 9 | 95 | 39 | |
45 | 702 | 702 | 656 | 500 | 382 | 853 | 724 | 50 | 9 | 95 | 53 | |
DB | 07 | 465 | 465 | 428 | 250 | 240 | 536 | 489 | 50 | 9 | 95 | 22 |
10 | 465 | 465 | 473 | 315 | 263 | 536 | 489 | 50 | 9 | 95 | 24 | |
15 | 530 | 530 | 518 | 355 | 268 | 680 | 554 | 50 | 9 | 95 | 30 | |
28 | 675 | 675 | 595 | 400 | 319 | 823 | 698 | 50 | 9 | 95 | 57 | |
40 | 675 | 675 | 595 | 450 | 319 | 823 | 698 | 50 | 9 | 95 | 60 | |
45 | 772 | 772 | 737 | 500 | 420 | 915 | 805 | 75 | 12 | 95 | 77 |
