AVANTAGE
Gate shutters
1 or 2 leaves - Cladding by grille
View larger
AVANTAGE
New product
 |
 |
 |
- Easy installation
- Reinforced sealing
- Motorized version 1V ME
- Reversible, hinges on the right or on the left
Application
Intended for mechanical or natural smoke extraction from premises or traffic.
Remote-controlled Safety Actuated Devices (DAS) intended for the introduction of fresh air (installation in the lower part) or for the extraction of fumes (installation in the upper part).
Opening on command of the CMSI (Fire Safety Control Center).
Use inside buildings.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
ADVANTAGE:
Remote controlled smoke evacuation dampers.
ADVANTAGE 1V ME:
Remote controlled smoke evacuation dampers with reset motor.
Description

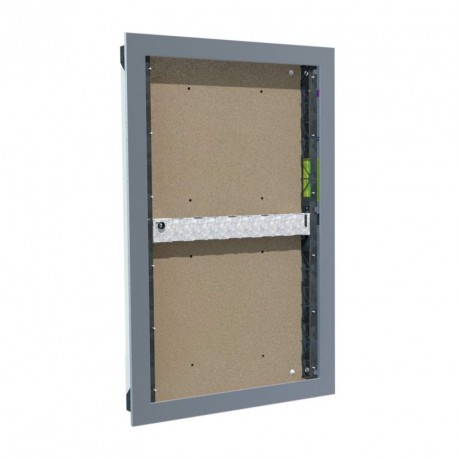

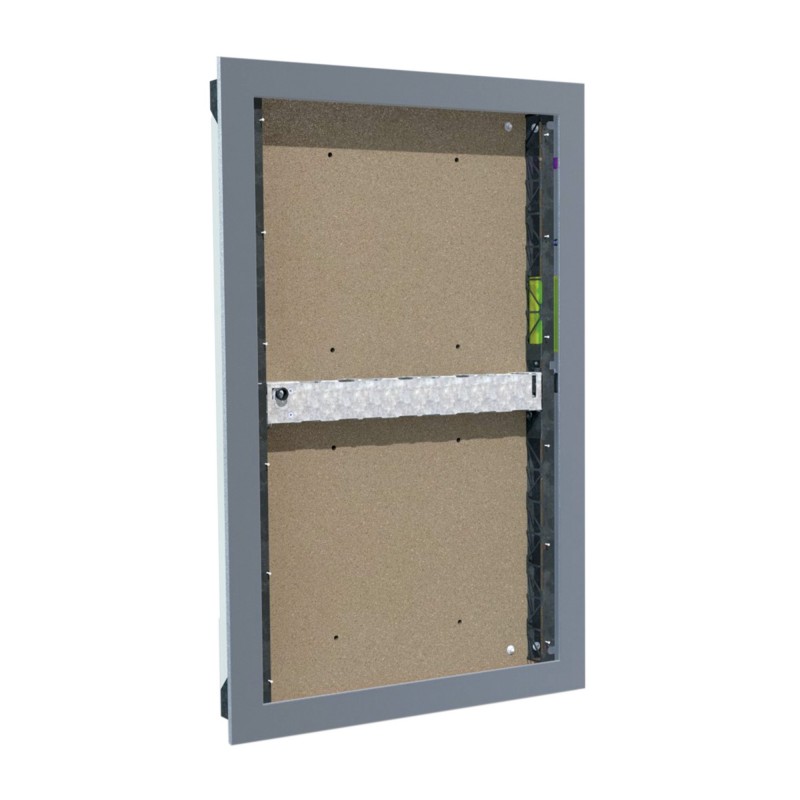

Remote controlled smoke evacuation dampers.
- 1 leaf: 1V60 EI60S and 1V120 EI120S, dimensions (LxH): 300x385 up to 700x1075.

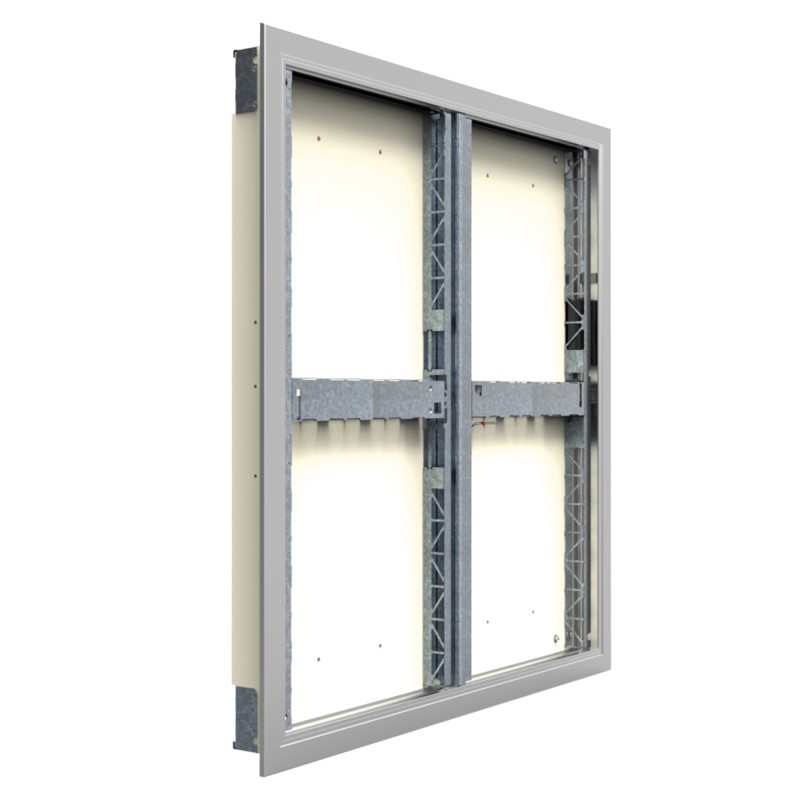

- 2 leaves: 2V60 EI60S and 2V120 EI120S, dimensions (LxH): 350x385 up to 1100x1105.
ADVANTAGE 1V ME:
Remote controlled smoke evacuation dampers with reset motor.
- 1 leaf only: 1V60 El60S and 1V120 El120S, dimensions (LxH): 350x385 up to 700x1075.
Description
- Raw aluminum frame.
- 1 or 2 leaves in refractory material pivoting on hinges.
- 2-leaf versions more particularly suited to shallow-depth shafts or large-dimension shutters.
- Self-locking 90 ° anti-return.
- Provide an aesthetic finishing grille in aluminum type GFAV, GAAV, GPAV or steel type GVAV.
- The order must be accompanied by at least:
- A 24 or 48V trip coil with VD shunt or VM break: optionally VD24 or VM24 or VD48 or VM48.
- Unipolar or bipolar end and start of stroke position contact: FDCU or FDCB option.
- The order must be accompanied by at least:
- A 24 or 48V trip coil with VD shunt: optionally VD24 or VD48.
- Unipolar or bipolar end and start of stroke position contact: FDCU or FDCB option.
1 - Refractory material (ex: silico-limestone plate)
2 - Sealing (ex: plaster) if pre-framed
3 - EASY KAP frame (option)
Weight (kg): see technical notices on vim.fr
