CAD O INTEGRAL

Double flow air handling unit V with exchanger

Rotary - Reaction - ECM < 20000 m3/h

CAD O Integral 60 VLEXD View larger

CAD O INTEGRAL

Double flow air handling unit V with exchanger


Rotary - Reaction - ECM < 20000 m3/h

ErP.jpgErP 2018 compliant - UVNR
Variable EC motors
Filters
Supplied as standard: Blowing fresh air: FIGR G4 Coarse 60 pleated filters% + FIFI F7 ePM1 55 mini-pleat filters%. Resumption stale air: FIFI M5 ePM10 50 pleated filters%.
Optional: Blowing fresh air: FIFI M5 ePM10 50 pleated filters% + FIFI F9 ePM1 80 minifold filters%. Blowing fresh air: FIFI G4 molecular mini-pleat filters Coarse 65% + FIFI F9 ePM1 80 minifold filters%. Resumption stale air: FIFI F7 ePM1 55 mini-pleat filters%.
FIFI G4 molecular mini-pleat filter, Coarse 65%, composed of a medium impregnated with activated carbon which is particularly effective in polluted urban environments, helps to improve the IAQ (Indoor Air Quality) of buildings, to reduce the ozone concentration by 50% (Oz5) and volatile chemicals.
Échangeur à roueMoteur ECMBy-passBatterie Chaude ou Froide
Débit ou pression régulésGTC Modbus et BACnetRégulation Plug and PlayOPTAIR® CTA, EASYVENT
Air-to-air rotary heat exchangers produced by COVENT, a Eurovent participant. Certified for AAHE.





  • New: HP version and size 200
  • Thermal efficiency up to 88%
  • Modbus and BACnet communicating regulation
  • High quality finish
  • Double skin rock wool insulation 50 mm
  • Batteries integrated into the CTA
  • High performance freewheel fans
  • Low-consumption ECM motors
  • Recycling or mixing box
Application

Air introduction and extraction with energy recovery.
Installation, indoors or outdoors.

Tertiary buildings

Tertiary buildings

Buildings for catering

Buildings for catering

CAD / BIM

CAD / BIM


Order online Order online

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

11 sizes: 07, 13, 19, 25, 35, 45, 60, 80, 100, 150, 200.
4 HP sizes with higher pressures available: 60HP, 80HP, 100HP, 150HP.
11 flow rates: 700 m3/h, 1,600 m3/h, 2,100 m3/h, 3,000 m3/h, 3,600 m3/h, 4,500 m3/h, 6,000 m3/h, 8,000 m3/h, 10,000 m3/h, 15,000 m3/h, 20,000 m3/h.
7 models:
  • E: without battery.
  • EI: integrated post-heating electric battery.
  • EC: integrated hot water battery.
  • ER: integrated reversible hot/cold water battery (VL model only).
  • ER4R: integrated reversible 4-row hot/cold water battery (sizes 60 / 80 / 100 / 150 / 200 only).
  • ECF: hot water battery + integrated cold water battery (sizes 60 / 80 / 100 / 150 / 200 only).
  • EX: integrated direct expansion battery (VL model only except size 150 and 200).
One-piece construction up to size 45, two-piece sizes 60, 80, 100, 150 and 200.
Duct connection configurations:
  • VTD from above, right easement, sizes 07 to 45.
  • VTG from above, left servitude, sizes 07 to 45.
  • VLD online, right easement.
  • VLG online, left easement.
  • VLEXD in line with roof, right easement.
  • VLEXG in line with roof, left easement.
CREI-CMOI: recycling or mixing boxes as accessories.
3 operating modes: variable flow (VAV), constant flow (CAV), constant pressure (COP).
VIM specific integrated CORRIGO regulation.
Communicating Modbus RTU on RS485 or Modbus TCP/IP port, Bacnet IP or MSTP. ETD2 remote touch control.
Classification EN 1886 D2 / L2 / F9 / T2 / TB3 according to VIM tests. Recirculation - Internal leaks: C2 (
Construction
  • Self-supporting construction in 50 mm double-skin panels.
  • Insulation with 50 mm thick rock wool, density 40 kg/m3, thermal conductivity 0.037 W/(mk) (20/80°C) - A1 classification.
  • Exterior finishes: pre-painted galvanized steel, dark gray RAL7024: corrosion resistance C5, ultraviolet resistance RUV5 according to EN 10169. Interior finishes: galvanized steel Z275.
  • Support feet up to size 45: galvanized steel painted black, thickness 3 mm, height 100 mm. Drilling for fixing anti-vibration pads, or leveling feet.
  • Chassis with assembly system between 2 modules for sizes 60/80/100/150: galvanized steel 3 mm thick, height 100 mm (156 mm for size 150 and 170 mm for size 200). Drilling for fixing anti-vibration pads or leveling feet.
  • Access to all components on the main face via chamfered doors fitted with hinges.
  • Connection by circular tappings equipped with class D sealing gaskets up to size 35 and 45VL, by rectangular flange on sizes 45VT, 60, 80, 100, 150 and 200.
Interchange
  • Rotary condensation exchanger as standard, or sorption as an option.
  • Equipped with a purge sector.
  • Thermal efficiency between 77% and 88% (depending on T° and RH conditions).
  • Variable rotation speed, 230 V single-phase power supply.
Motorization
  • Metallic freewheel type reaction fans (incombustible A1) associated with an electronically commutated motor, ECM motors.
  • Single-phase or three-phase motors with integrated electronic protection:
    • CAD O INTEGRAL 07: Mono 230V, 50/60Hz, IP54, class B.
    • CAD O INTEGRAL 13/19: Mono 230 V, 50/60 Hz, IP54, class B.
    • CAD O INTEGRAL 25/35/45/60: Tri 400 V, 50/60 Hz, IP54, class B.
    • CAD O INTEGRAL 80/100: Tri 400 V, 50/60 Hz, IP54, class F.
    • CAD O INTEGRAL 150/200: Tri 400 V, 50/60 Hz, IP55, class F.
Operating modes
Complete regulation allowing 3 operating modes:

FLOW RATE SETTINGSRECOMMENDED APPLICATIONS
VAV MODE - VARIABLE FLOW
Fan speed variation
- Flow rate setpoint value based on a 0-10 V signal from the remote control or an external probe (CO2, temperature, humidity, etc.).- Single-zone installations, requiring adaptation of ventilation depending on occupancy.
CAV MODE - CONSTANT FLOW
Fan speeds set to a specific flow rate
- Manual entry (m3/h) of 2 desired operating flow rates.
- Separate settings and measurements of the two fans.
- Visualization of values on the display, manual switching, by clock or external contact.		- Installations requiring control of one or more specific flow rates.
COP MODE - CONSTANT PRESSURE
Automatic fan speed variation to maintain constant pressure
- Constant pressure value measured by an external probe (option) located in the supply or extraction duct network.
- The operation of the extraction fan is linked to the supply fan (%).		- Multi-zone ventilation installations, associated with modulation of terminal flow rates.

EI electric battery
  • Resistance in AISI 430 stainless steel.
  • Proportional control by static relay.
  • Up to size 100: safety thermostat with automatic reset, set point 70°C, manual reset 120°C.
  • Size 150 and 200: safety thermostat with automatic reset, set point 55°C, manual reset 80°C. The electric battery must be connected by a separate power supply. It is equipped with its own disconnect switch.
EC hot water battery
  • 2-row water battery, hot water use.
  • Frost protection by contact probe.
  • Copper tubes and collectors, threaded connection tubes, aluminum fins, galvanized steel frame.
  • Motorized 3-way valve (24V) proportional by 0-10V signal (accessory).
Reversible hot/cold water battery ER on VL only
  • 2-row water battery (or 4-row ER4R, on sizes 60 / 80 / 100 / 150 / 200), use in hot water or chilled water.
  • Frost protection by contact probe.
  • Copper tubes and collectors, threaded connection tubes, aluminum fins, galvanized steel frame, stainless steel condensate recovery tray and siphon for Ø32 connection.
  • Motorized 3-way valve (24V) proportional by 0-10V signal (accessory).
  • THCO “change over” probe allowing automatic Hot/Cold switching by measuring the water temperature.
Hot water battery and cold water battery ECF on sizes 60/80/100/150/200 only
  • 2-row hot water and 2-row chilled water water battery (4 rows on sizes 150 and 200).
  • Antifreeze protection on hot battery by contact probe.
  • Copper tubes and collectors, threaded connection tubes, aluminum fins, galvanized steel frame, stainless steel condensate recovery tray and siphon for Ø32 connection.
  • Motorized 3-way valves (24 V) proportional by 0-10 V signal (accessory).
EX direct expansion battery on VL 07 to 100 only - supplied without regulation
  • 2 or 3 row battery designed to operate in evaporation or condensation.
  • 1 circuit up to size 60, 2 circuits on sizes 80 and 100
  • Copper tubes and collectors, aluminum fins, galvanized steel frame, stainless steel condensate recovery tray and siphon for Ø32 connection.
  • The regulation of the direct expansion battery must be carried out by the group.
Filtration
  • Filters supplied as standard:
    • Fresh air blowing: FIGR G4 Coarse 60 pleated filters% + FIFI F7 ePM1 55 mini-pleat filters%.
    • Stale air intake: FIFI M5 ePM10 50 pleated filters%.
  • Optional filters available:
    • Fresh air blowing: FIFI M5 ePM10 50 pleated filters% + FIFI F9 ePM1 80 minifold filters%.
    • Fresh air blowing: FIFI G4 molecular mini-pleat filters Coarse 65% + FIFI F9 ePM1 80 minifold filters%.
    • Stale air intake: FIFI F7 ePM1 55 mini-pleat filters%.
  • FIFI G4 molecular mini-pleat filter, Coarse 65%, composed of a medium impregnated with activated carbon which is particularly effective in polluted urban environments, helps to improve the IAQ (Indoor Air Quality) of buildings and reduce the ozone concentration by 50% (Oz5) and volatile chemicals.
EAPK - Automatic Pressure Balancing System - Option
  • Limits the risk of transfer of pathogens between the return air and the new air type COVID 19.
  • Maintains a slight depression in the upper part of the unit used for the extracted air.
  • Avoids the risk of air transfer between extracted air and fresh air (EATR).
  • System consisting of a pressure measuring device, a regulator and a register. Supplied assembled, wired and factory configured.
Circular accessories
  • REEV : Motorized circular register, reinforced class 4 sealing, shutter with seal, class D pressure casing, class C vacuum.
  • MSDZ : M0 circular flexible cuff, length 160 mm.
  • APC : Circular air outlet and intake, made of galvanized steel sheet with crimped protective mesh - Female connection.
Rectangular accessories
  • CDRE 100 : Motorized rectangular register, reinforced class 3 sealing, class B envelope.
  • MSCE : Waterproof rectangular flexible cuff (class B) with frame, M0.
  • APPA - APPR : Rain canopy for suction or discharge. Made of galvanized steel, pre-lacquered RAL7024, of the same type as the unit. Trapdoor on the side for access to a possible damper servomotor. Quick fixing without drilling.
  • CALL : Rain canopy with louvers (for sizes 150 and 200 only) at the suction or discharge. Made of galvanized steel, pre-painted RAL7024, of the same type as the unit. Trapdoor on the side for access to a possible damper servomotor. Quick fixing without drilling. Also used as a canopy for the CREI/CMOI recycling or mixing box.
  • BRL : Smooth rectangular flange made of galvanized steel.
  • PRRE : Rectangle/round transformation piece - in galvanized steel.
CREI - CMOI - Recycling or mixing boxes
  • Attaches directly to the VL model CTAs.
  • Self-supporting construction in 25 mm double-skin panels.
  • Mineral wool insulation 25 mm, thermal conductivity 0.037W (mk).
  • Exterior finish in pre-lacquered zinc-plated steel, dark grey RAL7024, corrosion resistance C5 and ultraviolet RUV3 according to EN 10169. Interior finish in galvanised steel Z275.
  • Access to components on the main face via doors (equipped with hinges on sizes 60/80/100).
  • Connection by circular tappings equipped with class D sealing gaskets up to size 45, by rectangular flange on sizes 60/80/100/150/200.
  • 3 rectangular registers in 50 mm increments (up to size 45) or 100 (for sizes 60/80/100) or 200 (for size 200).
  • 1 230VAC/24VDC ASTC 1.5A power supply.
CREI: all-or-nothing recycling management on hourly programming (Hourly program 5 of CORRIGO):
  • All-or-nothing register motor type CM24, 2Nm up to and including size 45 and LM24A on sizes 60/80/100.
  • All-or-nothing register motor with safety function (return spring) type LF24 S, 4 N.

CMOI: autonomous management of the fresh air/recycled air mixture depending on the indoor air quality (CO2). Proportional operation, promotes air recirculation during periods of non-occupation, and all-fresh air operation when the premises are occupied.
  • Proportional register motors type CM24-SR-L up to and including size 45 and LF24SR on sizes 60/80/100,
  • Proportional motor type LF24 SR 4 N with safety function (return spring),
  • CO2 probe (SCO2 G MIX 400-1100ppm 0-10V).
APPA-R and APPR-R: rain canopy for suction and discharge of the CREI/CMOI recycling or mixing box, on sizes 60/80/100 (on size 150 use of standard APPA/APPR)
  • Made of galvanized steel, pre-lacquered RAL7024, of the same nature as the unit.


Air treatment selection

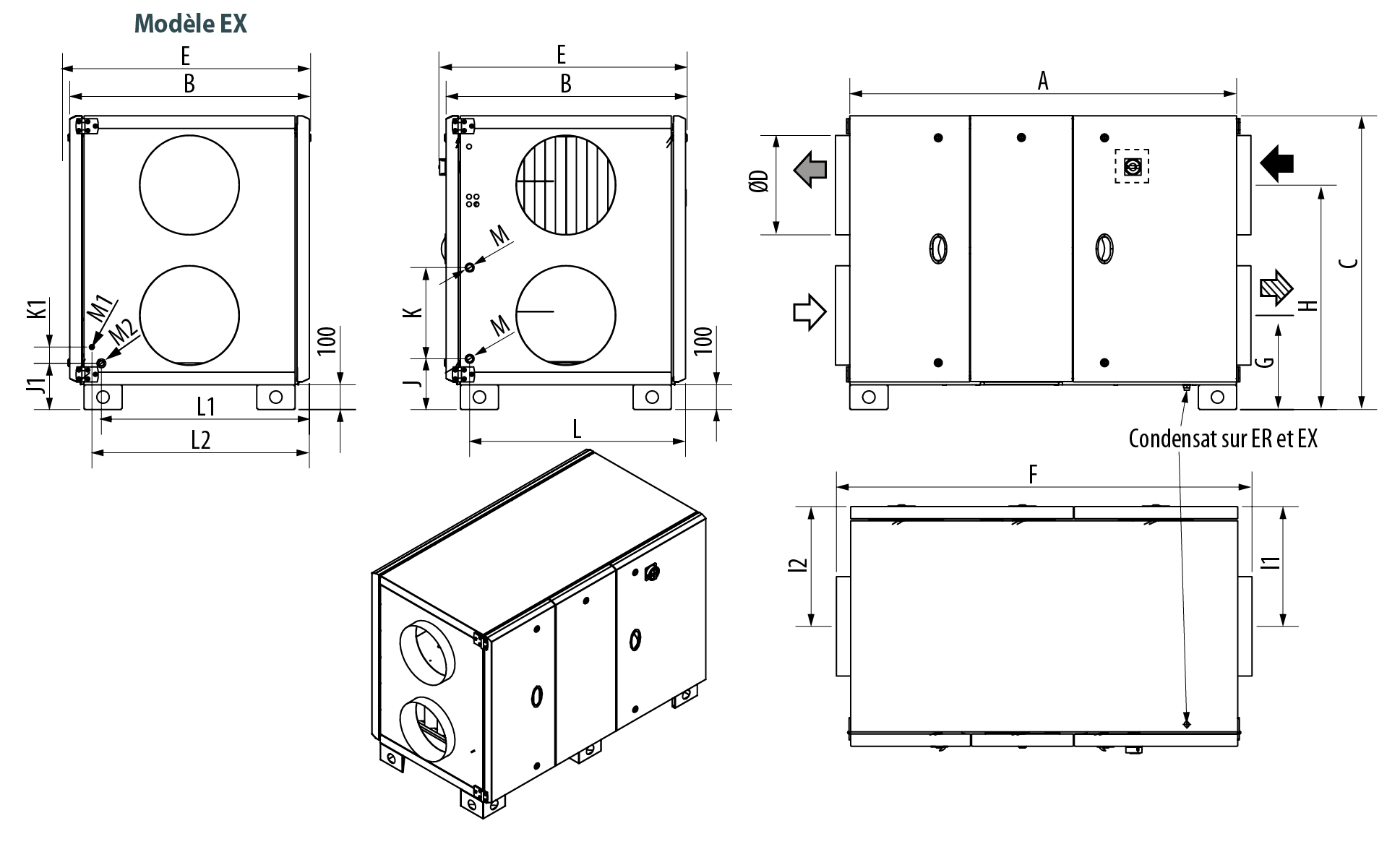

CAD O INTEGRAL 07 to 35 VTD
Connection from above

Outdoor air
Extract air
Supply air
Exhaust air
Regulation position

Model

A

B

C

ØD

E

F

G

H

I

J

K

L

M

N

O

Weight (kg)

E

EI

EC

CAD O INTEGRAL 07 VT

1285

715

1125

250

750

1185

200

310

300

101

195

569

1/2˝

258

183

200

206

206

CAD O INTEGRAL  13 VT

1285

715

1125

250

750

1185

200

310

300

101

195

569

1/2˝

258

183

207

213

213

CAD O INTEGRAL  19 VT

1490

815

1250

315

850

1309

300

355

350

90

255

689

1/2˝

258

215

259

265

267

CAD O INTEGRAL  25 VT

1740

965

1350

355

1000

1410

400

420

400

105

307

825

3/4˝

283

250

334

344

345

CAD O INTEGRAL  35 VT

1900

1125

1530

450

1156

1590

450

460

400

105

367

985

3/4˝

338

290

419

431

431

CAD O INTEGRAL 07 to 35 VTG
Connection from above

Outdoor air
Extract air
Supply air
Exhaust air
Regulation position

Model

A

B

C

ØD

E

F

G

H

I

J

K

L

M

N

O

Weight (kg)

E

EI

EC

CAD O INTEGRAL 07 VT

1285

715

1125

250

750

1185

200

310

300

101

195

569

1/2˝

258

183

200

206

206

CAD O INTEGRAL 13 VT

1285

715

1125

250

750

1185

200

310

300

101

195

569

1/2˝

258

183

207

213

213

CAD O INTEGRAL 19 VT

1490

815

1250

315

850

1309

300

355

350

90

255

689

1/2˝

258

215

259

265

267

CAD O INTEGRAL 25 VT

1740

965

1350

355

1000

1410

400

420

400

105

307

825

3/4˝

283

250

334

344

345

CAD O INTEGRAL 35 VT

1900

1125

1530

450

1156

1590

450

460

400

105

367

985

3/4˝

338

290

419

431

431

CAD O INTEGRAL 45 VTD
Connection from above

Outdoor air
Extract air
Supply air
Exhaust air
Regulation position

Modèle

Poids (kg)

E

EI

EC

CAD O INTEGRAL 45 VT

432

444

444



CAD O INTEGRAL 45 VTG
Connection from above
Outdoor air
Extract air
Supply air
Exhaust air
Regulation position

Model

Weight (kg)

E

EI

EC

CAD O INTEGRAL 45 VT

432

444

444


CAD O INTEGRAL mono block VLD - sizes 07 to 45
Straight line service connection


Model

A

B

C

ØD

E

F

G

H

I1

I2

J

J1

CAD O INTEGRAL 07 VL

1309

715

983

315

763

1425

329

754

327.5

357.5

210

214

CAD O INTEGRAL 13 VL

1309

715

983

315

763

1425

329

754

327.5

357.5

210

214

CAD O INTEGRAL 19 VL

1459

815

1085

355

851

1575

356

826

407.5

407.5

194

213

CAD O INTEGRAL 25 VL

1558

965

1183

400

1000

1675

379

904

482.5

482.5

204

213

CAD O INTEGRAL 35 VL

1558

1125

1363

450

1160

1675

436

1026

562.5

562.5

204

213

CAD O INTEGRAL 45 VL

1558

1125

1363

500

1160

1675

436

1026

562.5

562.5

204

213



Model

K

K1

L

L1

L2

M

M1

M2

Weight (kg)

E

EI

EC

ER

EX

CAD O INTEGRAL 07 VL

255

232

625

592

597

1 / 2˝

12.5

5

180

186

186

189

190

CAD O INTEGRAL 13 VL

255

232

625

592

597

1 / 2˝

12.5

5

187

193

193

196

197

CAD O INTEGRAL 19 VL

337

15.5

719

672

720.5

3 / 4˝

12

22

233

241

241

244

248

CAD O INTEGRAL 25 VL

367

38.5

869

837

875.5

3 / 4˝

12

22

281

291

291

293

299

CAD O INTEGRAL 35 VL

457

85.5

1030

977

1033

3 / 4˝

12

22

350

362

364

370

372

CAD O INTEGRAL 45 VL

457

85.5

1030

977

1033

3 / 4˝

12

22

363

375

377

383

385

CAD O INTEGRAL mono block VLG - sizes 07 to 45
Left main line connection

Model

A

B

C

ØD

E

F

G

H

I1

I2

J

J1

CAD O INTEGRAL 07 VL

1309

715

983

315

763

1425

329

754

327.5

357.5

210

214

CAD O INTEGRAL 13 VL

1309

715

983

315

763

1425

329

754

327.5

357.5

210

214

CAD O INTEGRAL 19 VL

1459

815

1085

355

851

1575

356

826

407.5

407.5

194

213

CAD O INTEGRAL 25 VL

1558

965

1183

400

1000

1675

379

904

482.5

482.5

204

213

CAD O INTEGRAL 35 VL

1558

1125

1363

450

1160

1675

436

1026

562.5

562.5

204

213

CAD O INTEGRAL 45 VL

1558

1125

1363

500

1160

1675

436

1026

562.5

562.5

204

213



Model

K

K1

L

L1

L2

M

M1

M2

Weight (kg)

E

EI

EC

ER

EX

CAD O INTEGRAL 07 VL

255

232

625

592

597

1 / 2˝

12.5

5

180

186

186

189

190

CAD O INTEGRAL 13 VL

255

232

625

592

597

1 / 2˝

12.5

5

187

193

193

196

197

CAD O INTEGRAL 19 VL

337

15.5

719

672

720.5

3 / 4˝

12

22

233

241

241

244

248

CAD O INTEGRAL 25 VL

367

38.5

869

837

875.5

3 / 4˝

12

22

281

291

291

293

299

CAD O INTEGRAL 35 VL

457

85.5

1030

977

1033

3 / 4˝

12

22

350

362

364

370

372

CAD O INTEGRAL 45 VL

457

85.5

1030

977

1033

3 / 4˝

12

22

363

375

377

383

385


CAD O INTEGRAL VLD - Sizes 60 to 100
Straight service line connection (supplied in two parts)


Size 60 EX model
Direct expansion coil		Size 80-100 EX model
Direct expansion coil		ECF model
With reversible hot /
cold water coil


Model

A

A1 *

A2

B

C

D

E

F

G

H

I

J

K

CAD O INTEGRAL 60/60HP VL

1972

1034

938

1315

1553

1200

1350

235

550

915

510

700

740

CAD O INTEGRAL 80/80HP VL

2112

1114

998

1565

1803

1450

1600

245

650

1050

610

900

940

CAD O INTEGRAL 100/100HP VL

2412

1263

1149

1735

1971

1620

1770

285

650

1175

610

1100

1140

* 50 mm interlocking to be added to obtain the length of the module alone.

Model

L

M

N

N1

N2

N3

N4

O

O1

P

P1

P2

Q *

Q1

Q2

R

CAD O INTEGRAL 60/60HP VL

300

510

1210

1131

1174

1218

-

208

213

541

109

-

1˝ (1``1 / 4)

12.7

28.5

840

CAD O INTEGRAL 80/80HP VL

300

610

1434

1334

1364

1410

1410

216

213

653

172

422

1 "1/4 (1" 1/2)

15.8

22.2

1090

CAD O INTEGRAL 100/100HP VL

600

610

1614

1514

1580

1580

1610

214

213

743

217

522

1 "1/4 (1" 1/2)

22.2

22.2

1260

* Value in brackets ER4R 4-row battery model

Model

Weight (kg)

E

EI

EC

ER

ECF

EX

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

CAD O INTEGRAL 60/60HP VL

345

224

569

345

251

596

345

245

590

345

252

597

345

273

618

345

262

607

CAD O INTEGRAL 80/80HP VL

457

285

742

457

322

779

457

313

770

457

323

780

457

352

809

457

337

794

CAD O INTEGRAL 100/100HP VL

550

354

904

550

398

948

550

388

938

550

400

950

550

434

984

550

416

966


CAD O INTEGRAL VLG - Sizes 60 to 100
Left hand service line connection (supplied in two parts)



Size 60 EX model
Direct expansion coil		Size 80-100 EX model
Direct expansion coil		ECF model
With reversible hot /
cold water coil


Model

A

A1 *

A2

B

C

D

E

F

G

H

I

J

K

CAD O INTEGRAL 60/60HP VL

1972

1034

938

1315

1553

1200

1350

235

550

915

510

700

740

CAD O INTEGRAL 80/80HP VL

2112

1114

998

1565

1803

1450

1600

245

650

1050

610

900

940

CAD O INTEGRAL 100/100HP VL

2412

1263

1149

1735

1971

1620

1770

285

650

1175

610

1100

1140

* 50 mm interlocking to be added to obtain the length of the module alone.

Model

L

M

N

N1

N2

N3

N4

O

O1

P

P1

P2

Q *

Q1

Q2

R

CAD O INTEGRAL 60/60HP VL

300

510

1210

1131

1174

1218

-

208

213

541

109

-

1 "(1" 1/4)

12.7

28.5

840

CAD O INTEGRAL 80/80HP VL

300

610

1434

1334

1364

1410

1410

216

213

653

172

422

1 "1/4 (1" 1/2)

15.8

22.2

1090

CAD O INTEGRAL 100/100HP VL

600

610

1614

1514

1580

1580

1610

214

213

743

217

522

1 "1/4 (1" 1/2)

22.2

22.2

1260

* Value in brackets ER4R 4-row battery model

Model

Weight (kg)

E

EI

EC

ER

ECF

EX

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

A1

A2

A1

+

A2

CAD O INTEGRAL 60/60HP VL

345

224

569

345

251

596

345

245

590

345

252

597

345

273

618

345

262

607

CAD O INTEGRAL 80/80HP VL

457

285

742

457

322

779

457

313

770

457

323

780

457

352

809

457

337

794

CAD O INTEGRAL 100/100HP VL

550

354

904

550

398

948

550

388

938

550

400

950

550

434

984

550

416

966



CAD O INTEGRAL VLD - Size 150 - Model ECF
Straight service line connection (delivered in two parts)

Fresh air suction
Stale air recovery
Blowing fresh air
Stale air rejection
Regulation position



EC and ER2R model
Water battery		ER4R model
Water battery


Model

A

A1

A2

B

C

D

E

F

G

H

I

J

K

CAD O INTEGRAL 150/150HP VL

3325

1552

17742215246021002288298950140990817981840

Model

L

M

N

O

P

ØQ2R

ØQ4R

Q1

Q2

Q3

Q4

Q5

Q6

R

S

CAD O INTEGRAL 150/150HP VL

30090821072549471 1/2''1 1/2''502447342264498420712156


Model

Weight (kg)

E

EI

EC / ER2R

ER4R

ECF

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

CAD O INTEGRAL 150/150HP VL

930

710

1640

930

8001730930750168093079017209308301760

CAD O INTEGRAL VLG - Size 150 ECF Model
Left service line connection (delivered in two parts)

Fresh air suction
Stale air recovery
Blowing fresh air
Stale air rejection
Regulation position



EC and ER2R model
Water battery		ER4R model
Water battery

Model

A

A1

A2

B

C

D

E

F

G

H

I

J

K

CAD O INTEGRAL 150/150HP VL

3325

1552

17742215246021002288298950140990817981840

Model

L

M

N

O

P

ØQ2R

ØQ4R

Q1

Q2

Q3

Q4

Q5

Q6

R

S

CAD O INTEGRAL 150/150HP VL

30090821072549471 1/2''1 1/2''502447342264498420712156


Model

Weight (kg)

E

EI

EC / ER2R

ER4R

ECF

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

CAD O INTEGRAL 150/150HP VL

930

710

1640

930

8001730930750168093079017209308301760

CAD O INTEGRAL VLEXD - Size 200 ECF model
Connection to straight service line (delivered in two parts always equipped with a rain shield)

Fresh air suction
Stale air recovery
Blowing fresh air
Stale air rejection
Regulation position




EC and ER2R model
Water battery		ER4R model
Water battery

Model

A

A1

A2

B

C

D

E

F

G

H

I

I

K

CAD O INTEGRAL 200 VL

3326

15521774261528742500268936210501673101021002140

Model

L

M

N

O

P

ØQ2R

ØQ4R

Q1

Q2

Q3

Q4

Q5

Q6

R

S

H1

H2

T

U

V

W

CAD O INTEGRAL 200 VL

3001010249429710691 1/2"2 1/2"51045535927449541060170298929123586276011538


Model

Weight (kg)

E

EI

EC / ER2R

ER4R

ECF

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

CAD O INTEGRAL 200 VL

147510602535147511602635147511402615147511852660147512602735

CAD O INTEGRAL VLEXG - Size 200 ECF model
Left service line connection (delivered in two parts always equipped with a rain shield)

Fresh air suction
Stale air recovery
Blowing fresh air
Stale air rejection
Regulation position




EC and ER2R model
Water battery		ER4R model
Water battery

Model

A

A1

A2

B

C

D

E

F

G

H

I

J

K

CAD O INTEGRAL 200 VL

3326

15521774261528742500268936210501673101021002140

Model

L

M

N

O

P

ØQ2R

ØQ4R

Q1

Q2

Q3

Q4

Q5

Q6

R

S

H1

H2

T

U

V

W

CAD O INTEGRAL 200 VL

3001010249429710691 1/2"2 1/2"51045535927449541060170298929123586276011538


Model

Weight (kg)

E

EI

EC / ER2R

ER4R

ECF

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

A1

A2

A1+A2

CAD O INTEGRAL 200 VL

147510602535147511602635147511402615147511852660147512602735

Close Open Detailed specifications

Text catalog pages (CT)

CT-CAD-O-INTEGRAL.pdf Add to your cart CT-Mars26-CAD O INTEGRAL

Text catalog pages (CT) Other languages

CT-CAD-O-INTEGRAL-AN.pdf Add to your cart CT-CAD-O-INTEGRAL-AN-260327 (English)

Catalog Pages - Other

CT-SELEC-TRAITEMENT-AIR.pdf Add to your cart Selection - CTA

Close Open Public tariff price

Price catalog pages (CP)

CP-CAD-O-INTEGRAL.pdf Add to your cart CP-Mars25-CAD O INTEGRAL
CP-Mise-service-CTA.pdf Add to your cart CP-March25-CTA commissioning

Close Open Installation instructions

Installation instructions (NT)

NT-50897200-CAD-O-Integral-FR.pdf Add to your cart NT-50897200-CAD-O-INTEGRAL-ETD2-FR-260325

Installation instructions (NT) Other

NT00000643-CAD-O-INTEGRAL-WEB-SERVEUR-FR.pdf Add to your cart NT00000643-CAD-O-INTEGRAL-WEB-SERVER-FR-200605 (French)
NT-509011-Regulation-CORRIGO-MODBUS-CAD-O-Integral-140129.pdf Add to your cart NT_509011_Regulation CORRIGO MODBUS_CAD O Integral_140129
NT-509073-KIT-MEOI-07-13-19.pdf Add to your cart NT-509073-KIT-MEOI-07-13-19-240404
NT-509074-KIT-MEOI-25-35-45-60-80.pdf Add to your cart NT-509074-KIT-MEOI-25-35-45-60-80-240404
NT00000895-KIT-MEOI-VARIMAX.pdf Add to your cart NT00000895-KIT-MEOI-VARIMAX-250306

Installation instructions (NT) Other languages

NT-50897201-CAD-O-INTEGRAL-AN.pdf Add to your cart NT-50897201-CAD-O-INTEGRAL-ETD2-AN-260325 (English version)
NT00000644-CAD-O-INTEGRAL-WEB-SERVEUR-AN.pdf Add to your cart NT00000644-CAD-O-INTEGRAL-WEB-SERVER-AN-200605 (English)

Installation instructions (NT) - Old version

NT-50897200-CAD-O-Integral-FR-210108.pdf Add to your cart NT-50897200-CAD-O-Integral-FR-210208
NT-50897201-CAD-O-INTEGRAL-AN-200605.pdf Add to your cart NT-50897201-CAD-O-INTEGRAL-AN-200605 (English version)

Technical data (DTEC)

DTEC-BACnet-EDE-CAD-O-INTEGRAL.xlsx Add to your cart DTEC-BACnet-EDE-CAD-O-INTEGRAL-260505

Close Open Fire / Smoke extraction certificates

Fire classification report (PVFEU)

PVFEU-DO-22-3595-AR1-AMDT1-MSCZ-MSCE-MSDE-F270215.pdf Add to your cart PVFEU-DO-22-3595-AR1-AMDT1-MSCZ-MSCE-MSDE-F270215 Media locked
PVFEU-EFR-21-003705A-MSDZ M1-MSCZ M1-F261012.pdf Add to your cart PVFEU-EFR-21-003705A-MSDZ M1-MSCZ M1-F261012 Media locked
PVFEU-P192681-LNE-Filtres-G4-F240529.pdf Add to your cart PVFEU-23.03500.01-Filters-G4-F280725 Media locked
PVFEU-DO-22-3867-Filtres-FIFI-F270516.pdf Add to your cart PVFEU-DO-22-3867-Filtres-FIFI-M5-F7-F9-F270516 Media locked

Close Open Performance / Environment Certificates

ErP regulatory sheet (FERP)

pdf Add to your cart ErP-CADO-INTEGRAL-240506 sheet

Eurovent certificate (CEUR)

pdf Add to your cart CEUR-CAD-O-INTEGRAL-COVENT-Eurovent-F261231 Media locked

Declaration of performance (DOP)

pdf Add to your cart DOP-O4309JPCPR-Isolant-CAD-HR-OPTIMAL&C4-CAD-O-INTEGRAL-KSCR-KSDR-KSDE-250711 Media locked
pdf Add to your cart TEST-EN1886-TUV-CAD-O-INTEGRAL-190524 Media locked

Product environmental profile (PEP)

pdf Add to your cart PEP-CAD-O-INTEGRAL- VIM P-00023-V01.01-FR-F300101 Media locked
xlsx Add to your cart PEP-CAD-O-INTEGRAL-Spreadsheet-Environmental-Impacts-250102 Media locked

Close Open Electrical / ATEX Certificates

Electrical CE Declarations (DCCE)

pdf Add to your cart DCCE-CAD-O-INTEGRAL-200916 Media locked

Close Open Prescription assistance

Specification text (TP)

docx Add to your cart TP-CAD-O-INTEGRAL-250813 Media locked

Close Open Commercial documents

Commercial leaflet (FCOM)

pdf Add to your cart FCOM-Air-Treatment-Centrals-250409
pdf Add to your cart FCOM Systèmes à débit variable VAV/DCV - 260304
ENGINAIR
Selection of CAD O INTEGRAL, PURECLASS, CAD HR SLIM Media locked

For any questions, please send an email to optair@vim.fr

AIR TREATMENT
Dual-flow CTA selection
  • Sizing and price quote
  • Calculating the efficiency of the heat exchanger
  • Engine fuel consumption
  • Selection of accessories
  • Battery characteristics
  • Acoustic characteristics

CAD O INTEGRAL
CAD HR SLIM
PURECLASS

OPTAIR CTA
Download the new OPTAIR CTA version (No automatic update from the previous version) Media locked

For any questions, please send an email to optair@vim.fr

AIR TREATMENT
OPTAIR-CTA.pngSelection of single or double flow CTAs
  • Sizing and quotation in price list
  • Calculation of exchanger efficiency
  • Engine consumption
  • Selection of accessories
  • Battery characteristics
  • Acoustic characteristics

UTBS ECOWATT
UTBS ECOWATT PRO-REG
KSCR ECOWATT
KSDR ECOWATT
CAD O INTEGRAL
CAD HR MINI
CAD HR MINI TOP
CAD HR BASIC H
CAD HR BASIC V
CAD HR BASIC TOP
CAD HR DUO H
CAD HR DUO V
CAD HR SLIM
CAD HR FIRST H
CAD HR FIRST V
CAD HR BASIC XL

3 BRASSEURS

Close Open 3 BRASSEURS

Restaurant chains

59 - North

3 BRASSEURS 3 BRASSEURS 3 BRASSEURS 3 BRASSEURS
3 BRASSEURS 3 BRASSEURS 3 BRASSEURS 3 BRASSEURS

Année : 2019

Maître d'ouvrage : SAS 3 BRASSEURS LG

BET Fluides : BKW ENERGIES

Installateur : IDCLIM (dep. 59)

Architecte : ADD AGENCE DAVID DHONT


Installed products:


Ventilation

Extraction or insufflation boxes

KMDT ECOWATT
KMDT ECOWATT

Ventilation

Extraction or insufflation boxes

K STD IP
K STD IP

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 ECOWATT - TEDV F400 ECOWATT
TEDH F400 ECOWATT - TEDV F400 ECOWATT

Smoke extraction - Fire safety

Covering grilles

GFAV - GAAV - GPAV - GCAV
GFAV - GAAV - GPAV - GCAV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Old ranges

KSDR ECOWATT ®
KSDR ECOWATT ®

Air treatment

Old ranges

KSDR ECOWATT® 08 to 120
KSDR ECOWATT® 08 to 120

Diffusion

VMC extraction vents

ALIZE
ALIZE

Diffusion

Small flow terminals

BDOP
BDOP

Diffusion

Constant flow regulators

RDR - RDR HP
RDR - RDR HP

Capture

Multipurpose hoods

VORAX® PREMIUM
VORAX® PREMIUM

Capture

Multipurpose hoods

VORAX® CHEF
VORAX® CHEF

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10
AGENCE WEISHAUPT - CHAMBERY

Close Open AGENCE WEISHAUPT - CHAMBERY

Manufacturing premises

73 - Savoy

AGENCE WEISHAUPT - CHAMBERY AGENCE WEISHAUPT - CHAMBERY
AGENCE WEISHAUPT - CHAMBERY AGENCE WEISHAUPT - CHAMBERY

Année : 2017

Maître d'ouvrage : WEISHAUPT SA

BET Fluides : CENA INGENIERIE 73

Installateur : ADITEC 73 (dep. 73)


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Air treatment

Old ranges

KSTA - KSTV
KSTA - KSTV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
B'TWIN VILLAGE - LILLE

Close Open B'TWIN VILLAGE - LILLE

Shopping centers

59 - North

B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE
B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE B'TWIN VILLAGE - LILLE

Année : 2014

Maître d'ouvrage : DECATHLON

BET Fluides : PROJEX

Installateur : ALPHA CLIMA INDUSTRIE (dep. 59)

Architecte : PATRIARCHE


Installed products:


Ventilation

Extraction or insufflation boxes

K STD
K STD

Air treatment

Old ranges

KSDA
KSDA

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

VMC extraction vents

ALIZE
ALIZE

Diffusion

Return grids

GRSC A - GRSI A - GDTP F
GRSC A - GRSI A - GDTP F

Diffusion

Swirl diffusers

DJHE F
DJHE F

Capture

Multipurpose hoods

VORAX® CONFORT
VORAX® CONFORT
BASE LOGISTIQUE INTERMARCHE

Close Open BASE LOGISTIQUE INTERMARCHE

Shipping or storage

56 - Morbihan

BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE
BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE BASE LOGISTIQUE INTERMARCHE

Année : 2019

Maître d'ouvrage : SAS ITM IMMO LOG

BET Fluides : P2-INGENIERIE (77)

Installateur : TEXIER (dep. 56)

Architecte : NICOT ARCHITECTE (35)


Installed products:


Ventilation

Roof fans

HCTB - HCTT
HCTB - HCTT

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Smoke extraction - Fire safety

Roof fans F400 120

HGHT F400 - HGHT F200
HGHT F400 - HGHT F200

Smoke extraction - Fire safety

NF relay boxes

PILOTAIR ®
PILOTAIR ®

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
CHALET SKADI (5*) - VAL D'ISERE

Close Open CHALET SKADI (5*) - VAL D'ISERE

Independent commercial catering

73 - Savoy

CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE
CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE CHALET SKADI (5*) - VAL D'ISERE

Année : 2017

Maître d'ouvrage : VILLA MONTANA

BET Fluides : ALPES FLUIDES 73

Installateur : ISOTHERM (dep. 73)


Installed products:


Ventilation

IAQ and comfort sensors

STEM
STEM

Air treatment

Old ranges

UTBS ECOWATT ® - UTBS ECOWATT ® PRO-REG
UTBS ECOWATT ® - UTBS ECOWATT ® PRO-REG

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Battery regulation

ARPB
ARPB

Diffusion

Old ranges

DFAS DFAR 600
DFAS DFAR 600

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10
COLLEGE - VALLON PONT D'ARC

Close Open COLLEGE - VALLON PONT D'ARC

Colleges

07 - Ardèche

COLLEGE - VALLON PONT D'ARC COLLEGE - VALLON PONT D'ARC COLLEGE - VALLON PONT D'ARC
COLLEGE - VALLON PONT D'ARC COLLEGE - VALLON PONT D'ARC COLLEGE - VALLON PONT D'ARC

Année : 2015

Maître d'ouvrage : CONSEIL DÉPARTEMENTAL

BET Fluides : GIRUS INGENIERIE

Installateur : CHAUSSABEL (dep. 07)

Architecte : PATEY ARCHITECTES


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Ventilation

Extraction or insufflation boxes

KMDT
KMDT

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
COLLEGE CHAMPOLLION - DIJON

Close Open COLLEGE CHAMPOLLION - DIJON

Colleges

21 - Côte-d'Or

COLLEGE CHAMPOLLION - DIJON COLLEGE CHAMPOLLION - DIJON COLLEGE CHAMPOLLION - DIJON
COLLEGE CHAMPOLLION - DIJON COLLEGE CHAMPOLLION - DIJON COLLEGE CHAMPOLLION - DIJON

Année : 2015

Maître d'ouvrage : CONSEIL DÉPARTEMENTAL

BET Fluides : BEVM

Installateur : LASTELLA GENIE CLIMATIQUE (dep. 21)


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Ventilation

Frequency converters

VFTM - VFTE
VFTM - VFTE

Ventilation

Gear controls

CVF - REB ECOWATT
CVF - REB ECOWATT

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Air treatment

Old ranges

KSTA - KSTV
KSTA - KSTV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Valves

VTVS
VTVS

Distribution

Rectangular registers

CDR 100
CDR 100
COLLEGE R. GOUPIL - BEAUGENCY

Close Open COLLEGE R. GOUPIL - BEAUGENCY

Colleges

45 - Loiret

COLLEGE R. GOUPIL - BEAUGENCY COLLEGE R. GOUPIL - BEAUGENCY
COLLEGE R. GOUPIL - BEAUGENCY COLLEGE R. GOUPIL - BEAUGENCY

Année : 2021

BET Fluides : ERCC

Installateur : ERCC (dep. 45)

Architecte : BLATTER


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
DISTRICT DE LA LOIRE DE FOOTBAL

Close Open DISTRICT DE LA LOIRE DE FOOTBAL

Offices only

42 - Loire

DISTRICT DE LA LOIRE DE FOOTBAL DISTRICT DE LA LOIRE DE FOOTBAL DISTRICT DE LA LOIRE DE FOOTBAL
DISTRICT DE LA LOIRE DE FOOTBAL DISTRICT DE LA LOIRE DE FOOTBAL DISTRICT DE LA LOIRE DE FOOTBAL

Année : 2014

BET Fluides : CLEMATIS (42)

Installateur : BRUNO LOUISON (dep. 42)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
ECOLE ELEMENTAIRE - BARBY

Close Open ECOLE ELEMENTAIRE - BARBY

Primary schools

73 - Savoy

ECOLE ELEMENTAIRE - BARBY ECOLE ELEMENTAIRE - BARBY ECOLE ELEMENTAIRE - BARBY
ECOLE ELEMENTAIRE - BARBY ECOLE ELEMENTAIRE - BARBY ECOLE ELEMENTAIRE - BARBY

Année : 2013

Maître d'ouvrage : VILLE DE BARBY

BET Fluides : SETIC INGENIERIE

Installateur : PICCHIOTTINO (dep. 73)

Architecte : LOUIS ET PERINO ARCHITECTES


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

VMC extraction vents

ALIZE
ALIZE

Diffusion

Constant flow regulators

RDR - RDR HP
RDR - RDR HP

Diffusion

Circular diffusers

DCRS A - DCRD A
DCRS A - DCRD A
EHPAD (140 LITS) - LA QUEUE EN BRIE

Close Open EHPAD (140 LITS) - LA QUEUE EN BRIE

Residences for the elderly

94 - Val-de-Marne

EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE
EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE EHPAD (140 LITS) - LA QUEUE EN BRIE

Année : 2018

Maître d'ouvrage : SODERIF

BET Fluides : CET INGENIERIE (92)

Installateur : SANICLIMA (dep. 93)

Architecte : ARCHISPROD


Installed products:


Ventilation

Old ranges

HUCF ECO PR
HUCF ECO PR

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Smoke extraction - Fire safety

Gate shutters

ADVANTAGE
ADVANTAGE

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
EHPAD - LA QUEUE EN BRIE

Close Open EHPAD - LA QUEUE EN BRIE

Residences for the elderly

94 - Val-de-Marne

EHPAD - LA QUEUE EN BRIE
EHPAD - LA QUEUE EN BRIE

Année : 2018

Maître d'ouvrage : SODERIF

BET Fluides : CET INGENIERIE (92)

Installateur : SANICLIMA (dep. 93)

Architecte : ARCHI5PROD


Installed products:


Ventilation

Old ranges

HUCF C - HUCF T
HUCF C - HUCF T

Ventilation

Old ranges

HUCF ECO PR
HUCF ECO PR

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Smoke extraction - Fire safety

F400 120 extraction boxes

KDTA F400 - KDTR F400
KDTA F400 - KDTR F400

Smoke extraction - Fire safety

NF relay boxes

PILOTAIR ®
PILOTAIR ®

Smoke extraction - Fire safety

Covering grilles

GDAF - GDAA - GDAC
GDAF - GDAA - GDAC

Smoke extraction - Fire safety

Covering grilles

GFAV - GAAV - GPAV - GCAV
GFAV - GAAV - GPAV - GCAV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
EHPAD PIERRE MEUNIER - LA FOUILLOUSE

Close Open EHPAD PIERRE MEUNIER - LA FOUILLOUSE

Residences for the elderly

42 - Loire

EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE
EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE EHPAD PIERRE MEUNIER - LA FOUILLOUSE

Année : 2014

Maître d'ouvrage : MAISON DE RETRAITE PIERRE MEUNIER

BET Fluides : ADRET

Installateur : ENERGECO (dep. 42)

Architecte : GROUPE 6


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Ventilation

Extraction or insufflation boxes

KMDT
KMDT

Ventilation

Extraction or insufflation boxes

K STD ECOWATT
K STD ECOWATT

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Smoke extraction - Fire safety

F400 120 extraction boxes

KDTA F400 - KDTR F400
KDTA F400 - KDTR F400

Smoke extraction - Fire safety

NF relay boxes

PILOTAIR ®
PILOTAIR ®

Smoke extraction - Fire safety

Comfort / smoke extraction boxes

VORAX CONNECT
VORAX CONNECT

Air treatment

Old ranges

KSDA
KSDA

Air treatment

Old ranges

UTBS ECOWATT ® - UTBS ECOWATT ® PRO-REG
UTBS ECOWATT ® - UTBS ECOWATT ® PRO-REG

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Distribution

Circular registers

RMME
RMME

Capture

Multipurpose hoods

VORAX® CHEF
VORAX® CHEF

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10

Capture

VORAX® ECO
VORAX® ECO
ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON

Close Open ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON

Colleges

74 - Haute-Savoie

ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON
ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON ENSEMBLE SCOLAIRE CATHOLIQUE ROCHOIS - LA ROCHE/FORON

Année : 2017

Maître d'ouvrage : SCI STE MARIE

BET Fluides : SYNAPSE CONSTRUCTION

Installateur : PESSEY FOURNIER (dep. 74)

Architecte : GERONIMO ARCHITECTES


Installed products:


Air treatment

Old ranges

KSTA - KSTV
KSTA - KSTV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Capture

Laundry hoods

VORAX® LAUNDROMAT
VORAX® LAUNDROMAT

Capture

Hoods ovens

VORAX® FOUR
VORAX® FOUR

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10

Capture

F400 120 extraction box

KCTR F400
KCTR F400
ESAT ARMENTIERES

Close Open ESAT ARMENTIERES

Healthcare establishments

59 - North

ESAT ARMENTIERES ESAT ARMENTIERES
ESAT ARMENTIERES ESAT ARMENTIERES

Année : 2018

Maître d'ouvrage : AFEJI 59

BET Fluides : PROJET 59

Installateur : CHAUFFAGE SERVICE (dep. 59)


Installed products:


Ventilation

Extraction or insufflation boxes

KMDT ECOWATT
KMDT ECOWATT

Ventilation

Extraction or insufflation boxes

K STD ECOWATT
K STD ECOWATT

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Capture

Multipurpose hoods

VORAX® CHEF
VORAX® CHEF

Capture

Laundry hoods

VORAX® LAUNDRY G
VORAX® LAUNDRY G
ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS

Close Open ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS

Housing complex

ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS
ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS ESPACE BOISSIN - RESTRUCTURATION 10 000M2 - LE MANS

Année : 2021

Maître d'ouvrage : BOISSIN SAS

Installateur : DELABOUDINIERE (dep. 72)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
GRANDE MOSQUEE BADR EDDINE - LYON

Close Open GRANDE MOSQUEE BADR EDDINE - LYON

Religious buildings

69 - Rhône

GRANDE MOSQUEE BADR EDDINE - LYON GRANDE MOSQUEE BADR EDDINE - LYON
GRANDE MOSQUEE BADR EDDINE - LYON GRANDE MOSQUEE BADR EDDINE - LYON

Année : 2015

Maître d'ouvrage : ASSOCIATION CULTURELLE LYONNAISE ISLAMO-FRANÇAISE

Installateur : TERCLIMAT (dep. 69)

Architecte : BALLANDRAS ET MIRABAUD


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

Return grids

FATF A
FATF A

Diffusion

Exterior grilles

USAV
USAV
HIPPOPOTAMUS CLAYE-SOUILLY

Close Open HIPPOPOTAMUS CLAYE-SOUILLY

Restaurant chains

77 - Seine-et-Marne

HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY
HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY HIPPOPOTAMUS CLAYE-SOUILLY

Année : 2021

Maître d'ouvrage : GROUPE BERTRAND

Installateur : UGCF (dep. 62)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10
INESIS GOLF PARK - MARCQ EN BAROEUL

Close Open INESIS GOLF PARK - MARCQ EN BAROEUL

Shopping centers

59 - North

INESIS GOLF PARK - MARCQ EN BAROEUL INESIS GOLF PARK - MARCQ EN BAROEUL
INESIS GOLF PARK - MARCQ EN BAROEUL INESIS GOLF PARK - MARCQ EN BAROEUL

Année : 2013

Maître d'ouvrage : DECATHLON

BET Fluides : HDM INGENIERIE

Installateur : ALPHA CLIMA INDUSTRIE (dep. 59)

Architecte : TGMP ARCHITECTES


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
L'ATLANTIDE - NANTES

Close Open L'ATLANTIDE - NANTES

Independent commercial catering

44 - Loire-Atlantique

L'ATLANTIDE - NANTES L'ATLANTIDE - NANTES
L'ATLANTIDE - NANTES L'ATLANTIDE - NANTES

Année : 2015

Maître d'ouvrage : M. GUEHO

BET Fluides : AIA SERA

Installateur : SPIE OUEST CENTRE (dep. 44)


Installed products:


Ventilation

Regulated C4 extraction boxes

JBHB ECO PR - Non ErP
JBHB ECO PR - Non ErP

Smoke extraction - Fire safety

F400 120 extraction boxes

KDTA F400 - KDTR F400
KDTA F400 - KDTR F400

Air treatment

Old ranges

KSTA - KSTV
KSTA - KSTV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Capture

Filtering ceilings

VORAX® VISION - VORAX® VISION COMFORT
VORAX® VISION - VORAX® VISION COMFORT

Capture

VORAX® ECO
VORAX® ECO
LE GRAND REFECTOIRE DE L'HOTEL DIEU

Close Open LE GRAND REFECTOIRE DE L'HOTEL DIEU

Independent commercial catering

69 - Rhône

LE GRAND REFECTOIRE DE L'HOTEL DIEU LE GRAND REFECTOIRE DE L'HOTEL DIEU LE GRAND REFECTOIRE DE L'HOTEL DIEU
LE GRAND REFECTOIRE DE L'HOTEL DIEU LE GRAND REFECTOIRE DE L'HOTEL DIEU LE GRAND REFECTOIRE DE L'HOTEL DIEU

Année : 2018

Maître d'ouvrage : MARC BONNETON/THIBAULT SALVAT/MATHIEU COCHARD/EMMANUEL SAILER

BET Fluides : TEM PARTNERS (69)

Installateur : EVOLUTION (dep. 69)

Architecte : HTVS ARCHITECTURE LYON (69) – FRANCK VELLA


Installed products:


Smoke extraction - Fire safety

F400 120 extraction boxes

KUBAIR® F400 ECOWATT CC/MV
KUBAIR® F400 ECOWATT CC/MV

Air treatment

Old ranges

CAD HR BASIC V
CAD HR BASIC V

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Capture

Filtering ceilings

VORAX® VISION - VORAX® VISION COMFORT
VORAX® VISION - VORAX® VISION COMFORT

Capture

VORAX® ECO
VORAX® ECO

Capture

SY STEM E ASR1 ECOWATT
SY STEM E ASR1 ECOWATT
LYCEE PROFESSIONNEL - AUBIN

Close Open LYCEE PROFESSIONNEL - AUBIN

High schools

LYCEE PROFESSIONNEL - AUBIN LYCEE PROFESSIONNEL - AUBIN
LYCEE PROFESSIONNEL - AUBIN LYCEE PROFESSIONNEL - AUBIN

Année : 2021

Installateur : EIGFFAGE BOUSQUET FIRMI (dep. 12)


Installed products:


Ventilation

Extraction or insufflation boxes

K STD IP
K STD IP

Smoke extraction - Fire safety

F400 120 extraction boxes

KUBAIR® F400 ECOWATT CC/MV
KUBAIR® F400 ECOWATT CC/MV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Air treatment

Simple flow AHU

KSCR ECOWATT
KSCR ECOWATT

Capture

SY STEM E ASR1 ECOWATT
SY STEM E ASR1 ECOWATT
LYCEE SAINT JOSEPH - THONES

Close Open LYCEE SAINT JOSEPH - THONES

High schools

74 - Haute-Savoie

LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES
LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES LYCEE SAINT JOSEPH - THONES

Année : 2015

BET Fluides : BETER ET CACHAT

Installateur : HELLE SN (dep. 74)

Architecte : AER


Installed products:


Ventilation

Unregulated C4 extraction boxes

JBEB
JBEB

Smoke extraction - Fire safety

Circular check valves

CR2
CR2

Air treatment

Old ranges

KSDA
KSDA

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Battery regulation

ARPB
ARPB

Diffusion

Air inlets

ISOLA 2
ISOLA 2

Diffusion

VMC extraction vents

ALIZE
ALIZE

Diffusion

Small flow terminals

BDOP
BDOP

Diffusion

Constant flow regulators

RDR - RDR HP
RDR - RDR HP

Diffusion

Square diffusers

DPCS AB - DPCD AB
DPCS AB - DPCD AB

Capture

Laundry hoods

VORAX® LAUNDROMAT
VORAX® LAUNDROMAT

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10
MAISON DU DON - DUNKERQUE

Close Open MAISON DU DON - DUNKERQUE

Healthcare establishments

59 - North

MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE
MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE MAISON DU DON - DUNKERQUE

Année : 2021

Maître d'ouvrage : EFS ETABLISSEMENT FRANÇAIS DU SANG

BET Fluides : TPF INGENIERIE

Installateur : FLANDRES ARTOIS (dep. 62)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

Small flow terminals

BRSI
BRSI

Diffusion

Linear diffusers

SLS
SLS
MEDIATHEQUE L'AGORA - METZ

Close Open MEDIATHEQUE L'AGORA - METZ

Media library

57 - Moselle

MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ
MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ MEDIATHEQUE L'AGORA - METZ

Année : 2018

Maître d'ouvrage : VILLE DE METZ

BET Fluides : OTE INGENIERIE

Installateur : LORRY SAS (dep. 57)

Architecte : BERNARD ROPA


Installed products:


Ventilation

Gear controls

TRAFO
TRAFO

Ventilation

IAQ and comfort sensors

SCO2
SCO2

Smoke extraction - Fire safety

Circular check valves

CR2
CR2

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 ECOWATT - TEDV F400 ECOWATT
TEDH F400 ECOWATT - TEDV F400 ECOWATT

Smoke extraction - Fire safety

F400 120 extraction boxes

KUBAIR® F400 ECOWATT CC/MV
KUBAIR® F400 ECOWATT CC/MV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSCR ECOWATT
KSCR ECOWATT

Diffusion

Small flow terminals

NEEI - KTSI
NEEI - KTSI

Diffusion

Constant flow regulators

RDR - RDR HP
RDR - RDR HP

Diffusion

Linear diffusers

SLS
SLS

Capture

Multipurpose hoods

VORAX® CONFORT
VORAX® CONFORT

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10

Capture

SY STEM E ASR1 ECOWATT
SY STEM E ASR1 ECOWATT
RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE

Close Open RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE

Universities / Grandes Ecoles

38 - Isère

RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE
RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE RESTAURANT UNIVERSITAIRE DIDEROT - GRENOBLE

Année : 2020

Maître d'ouvrage : CROUS GRENOBLE

BET Fluides : ADRET

Installateur : VENITUCCI ET ICS (dep. 38)

Architecte : CHAPUIS-ROYER


Installed products:


Smoke extraction - Fire safety

Management system

PILOT CTA DAD
PILOT CTA DAD

Smoke extraction - Fire safety

Roof fans F400 120

TEDH F400 -TEDV F400
TEDH F400 -TEDV F400

Smoke extraction - Fire safety

Comfort / smoke extraction boxes

VORAX CONNECT
VORAX CONNECT

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Air treatment

Simple flow AHU

KSDR ECOWATT ®
KSDR ECOWATT ®

Diffusion

Return grids

GRAC A - GRAC AI
GRAC A - GRAC AI

Diffusion

Square diffusers

DPCS AB - DPCD AB
DPCS AB - DPCD AB

Diffusion

Square diffusers

DATI - DATP
DATI - DATP

Capture

Multipurpose hoods

VORAX® CHEF
VORAX® CHEF

Capture

Laundry hoods

VORAX® LAUNDROMAT
VORAX® LAUNDROMAT

Capture

Hoods ovens

VORAX® FOUR
VORAX® FOUR

Capture

Induction hoods

VORAX® 90/10 COMFORT 90/10
VORAX® 90/10 COMFORT 90/10

Capture

F400 120 extraction box

KCTR F400
KCTR F400
SALLE DE SPORT

Close Open SALLE DE SPORT "LA SUITE"

Sports halls

68 - Haut-Rhin

SALLE DE SPORT SALLE DE SPORT SALLE DE SPORT
SALLE DE SPORT SALLE DE SPORT SALLE DE SPORT

Année : 2021

Maître d'ouvrage : SARL LA SUITE

BET Fluides : LIEBERMANN

Installateur : LIEBERMANN (dep. 67)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

Long throw diffusers

KVMB
KVMB
UNIVERSITE DES QUAIS - LYON

Close Open UNIVERSITE DES QUAIS - LYON

Universities / Grandes Ecoles

69 - Rhône

UNIVERSITE DES QUAIS - LYON UNIVERSITE DES QUAIS - LYON UNIVERSITE DES QUAIS - LYON
UNIVERSITE DES QUAIS - LYON UNIVERSITE DES QUAIS - LYON UNIVERSITE DES QUAIS - LYON

Année : 2014

Maître d'ouvrage : RECTORAT ACADÉMIE DE LYON

BET Fluides : GINGER

Installateur : MOOS (dep. 69)

Architecte : WEBER ET DAMIAN


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL
VILLAGE VACANCES REPIT FAMILLES - FONDETTES

Close Open VILLAGE VACANCES REPIT FAMILLES - FONDETTES

Hotel residences

37 - Indre-et-Loire

VILLAGE VACANCES REPIT FAMILLES - FONDETTES VILLAGE VACANCES REPIT FAMILLES - FONDETTES VILLAGE VACANCES REPIT FAMILLES - FONDETTES
VILLAGE VACANCES REPIT FAMILLES - FONDETTES VILLAGE VACANCES REPIT FAMILLES - FONDETTES VILLAGE VACANCES REPIT FAMILLES - FONDETTES

Année : 2013

Maître d'ouvrage : ASSOCIATION LES FONDETTES

BET Fluides : OTE

Installateur : HERVE THERMIQUE (dep. 37)

Architecte : BROLET VINCENT


Installed products:


Air treatment

Old ranges

KSTA - KSTV
KSTA - KSTV

Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Capture

Multipurpose hoods

VORAX® CHEF G
VORAX® CHEF G
VILOGIA

Close Open VILOGIA

Offices only

59 - North

VILOGIA VILOGIA VILOGIA
VILOGIA VILOGIA VILOGIA

Année : 2021

BET Fluides : BE JLL INGÉNIERIE

Installateur : ENERGIE FROID (dep. 62)


Installed products:


Air treatment

Double flow air handling unit V with exchanger

CAD O INTEGRAL
CAD O INTEGRAL

Diffusion

Small flow terminals

BDOP
BDOP

Diffusion

Exterior grilles

GMAA - GMAC
GMAA - GMAC

Diffusion

Square diffusers

DPDU
DPDU
Vous pouvez accéder à la version ordinateur via les paramètres de votre navigateur.
↑
X
