DATI - DATP

Square diffusers

Central perforated sheet metal - Wall or slabs

DATI - DATP View larger

DATI - DATP

Square diffusers


Central perforated sheet metal - Wall or slabs

  • Blowing or recovery
  • Adjustable diffusion 1 to 4 directions
  • Integrated circular tapping plenum
  • 600 x 600 models for false ceiling tiles
  • Models with filter
  • RAL 9003 matt white finish
Application

Air conditioning, heating, ventilation.

Tertiary buildings

Tertiary buildings

Order online Order online

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Flow rate from 150 to 1400 m3/h.
9 models:
  • DATI V: supply diffuser with bare plenum and vertical connection.
  • DATI H: supply diffuser with bare plenum and horizontal connection.
  • DATI HI: supply diffuser with insulated plenum and horizontal connection.
  • DATP V: return diffuser with bare plenum and vertical connection.
  • DATP VF: return diffuser with housing for 22 mm thick filter, bare plenum and vertical connection.
  • DATP H: return diffuser with bare plenum and horizontal connection.
  • DATP HF: return diffuser with housing for 22 mm thick filter, bare plenum and horizontal connection.
  • DATP HI: return diffuser with insulated plenum and horizontal connection.
  • DATP HI F: return diffuser with housing for 22 mm thick filter, insulated plenum and horizontal connection.
Integrated plenum with connection diameters of 160, 200, 250 and 315 mm.
Sizes 160 to 315 are available for surface mounting and for 600x600 tiles.
Description
  • Square diffusers with front in perforated sheet metal in matt white RAL 9003.
  • Equipped with a bare or insulated galvanized steel plenum, with vertical or horizontal circular connection.
  • Opening front fixed by hinges and push-pull system.
  • DATA: Perforated diffuser equipped with 4 deflector plates in black painted steel allowing several directions to be chosen:
  • DATP : Diffuser without deflector plate.

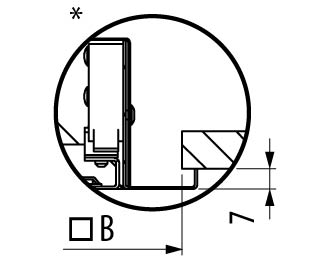

Surface mounting



Size ØN A A1 B E H H1 W W' x W''
160 160 294 242 260 58 284 184 249 190 x 222
200 200 394 342 360 58 324 204 349 230 x 262
250 250 494 442 460 58 374 229 449 280 x 312
315 315 594 542 560 49 439 270 549 345 x 377

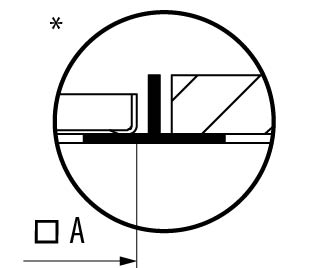

Mounting on false ceiling T
Size ØN A A1 B E H H1 W W' x W''
160 160 594 542 560 58 284 184 549 190 x 222
200 200 594 542 560 58 324 204 549 230 x 262
250 250 594 542 560 58 374 229 549 280 x 312
315 315 594 542 560 49 439 270 549 345 x 377






Surface mounting



Size ØN A A1 B E FIGR H H1 H2 W W' x W''
160 160 294 242 275 58 230 x 230 x 22 306 206 201 248 247 x 273
200 200 394 342 375 58 330 x 330 x 22 346 231 201 348 347 x 373
250 250 494 442 475 58 430 x 430 x 22 396 251 201 448 447 x 473
315 315 594 542 575 49 530 x 530 x 22 456 292 201 548 547 x 573


Mounting on false ceiling T
Size ØN A A1 B E FIGR H H1 H2 W W' x W''
160 160 594 542 575 58 530 x 530 x 22 310 207 201 548 547 x 573
200 200 594 542 575 58 530 x 530 x 22 350 232 201 548 547 x 573
250 250 594 542 575 58 530 x 530 x 22 400 252 201 548 547 x 573
315 315 594 542 575 58 530 x 530 x 22 460 292 201 548 547 x 573

Close Open Detailed specifications

Text catalog pages (CT)

CT-DATI-DATP.pdf Add to your cart CT-Sept25-DATI-DATP

Close Open Public tariff price

Price catalog pages (CP)

CP-DATI-DATP.pdf Add to your cart CP-Sept25-DATI-DATP

Close Open Installation instructions

Technical data (DTEC)

pdf Add to your cart DTEC_508838_DATI_150129
pdf Add to your cart DTEC_508837_DATP_150129
